vanEE HRV 60H - Service Parts

VL0019

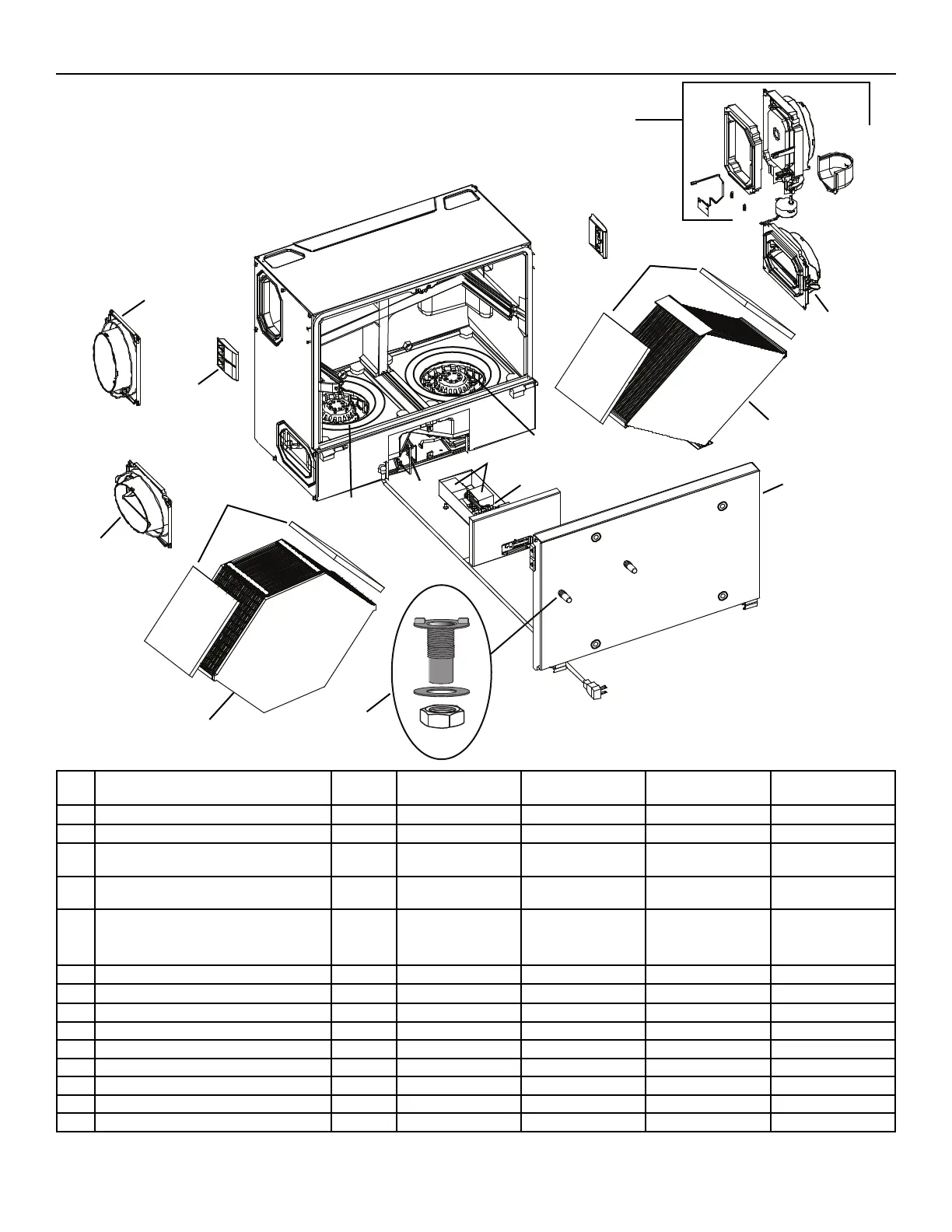

8. SERVICE PARTS
1
2
3
3
12
11
13
4
7
8
9
4
5
6
10
*PART NOT SHOWN.
** ENSURE TO VERIFY THE CAPACITOR VALUE (SHOWN ON LABEL) BEFORE ORDERING.
REF.
NO.
DESCRIPTION
PART
NUMBER
41600 HRV
PORTS ON SIDES
41602 HRV
PORTS ON TOP
41604 ERV
PORTSONSIDES
41606 ERV
PORTS ON TOP
1 OVAL PORT (FITS 5” DIAMETER DUCTS) 16040 1 1 1 1
2 DOOR LATCH WITH SCREWS 16035 2 2 2 2
3
OVAL PORT WITH INTEGRATED
BALANCING DAMPER
16041 2 2 2 2
4
MOTOR & WHEEL ASSEMBLY (MOTOR
CAPACITOR AND INLET RING INCLUDED
)
16024 2 2 2 2
5
CAPACITOR 3 µF** (2)
CAPACITOR 5 µF** (2)
CAPACITOR 7 µF ** (2)
17024
16042
16027
1 1 1 1
6 ELECTRONIC BOARD 16038 1 1 1 1
7 ERV FOAM FILTER 16031 N/A N/A 2 2
8 ERV CORE (WITH 2 FILTERS) 16033 N/A N/A 1 1
9 DRAIN CONNECTOR KIT 03203 1 1 N/A N/A
10 DOOR ASSEMBLY 16095 1 1 1 1
11 HRV CORE (WITH 2 FILTERS) 16034 1 1 N/A N/A
12 HRV FOAM FILTER 16032 2 2 N/A N/A
13 MOTORIZED DAMPER PORT ASSEMBLY 16029 1 1 1 1
14* TRANSFORMER 16039 1 1 1 1
