REV 1.1 CT-3500 S2 USER’S MANUAL
7

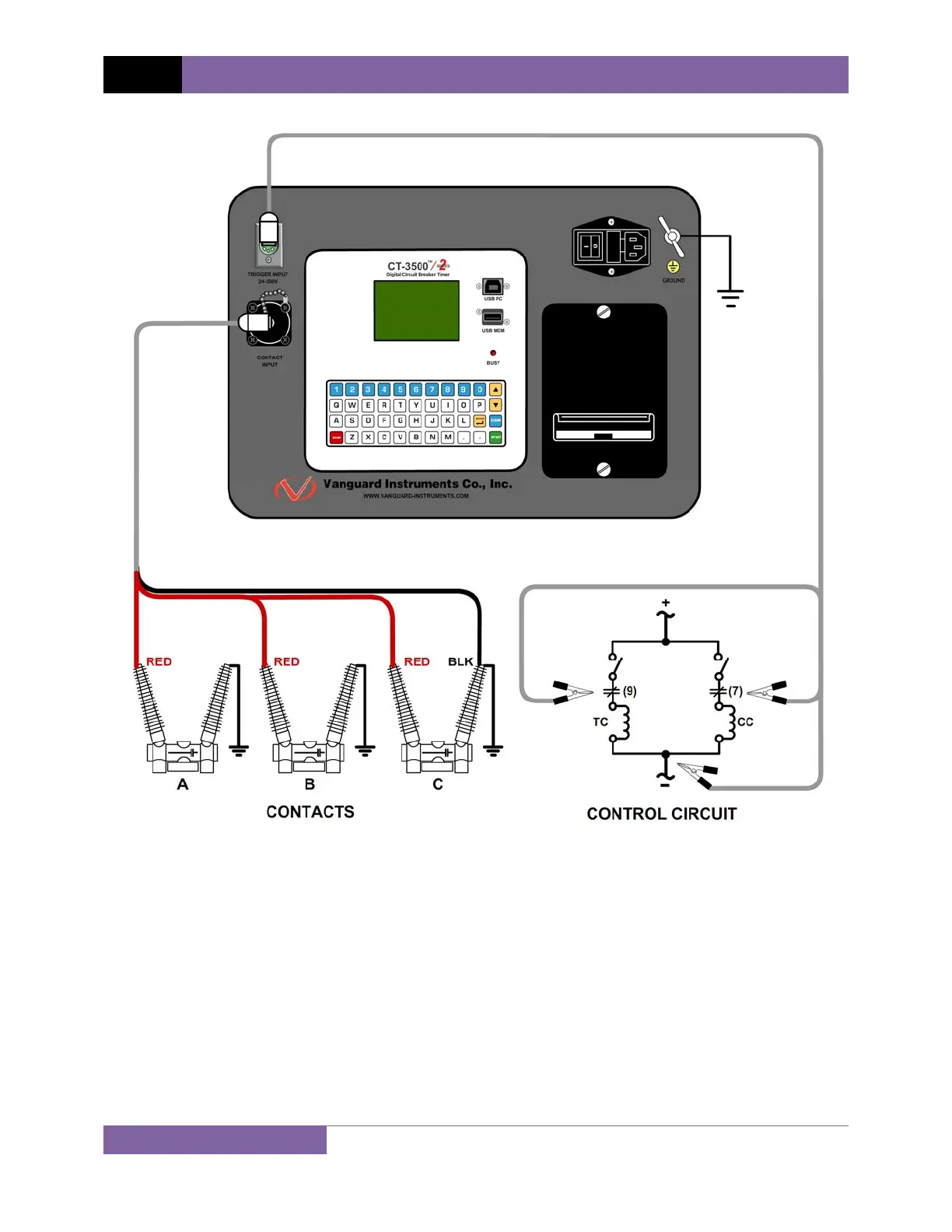

Figure 3. Typical CT-3500 S2 Connection Diagram (Trigger Cable with 3 Leads)
