Vante 4160 - Fuse Replacement; Figure 4.1 Fuse Holder

Vante ® Model 4160
26
4.2. Fuse Replacement
4.2.1. If the unit is properly connected to a working electrical outlet, and the display
does not activate with the power switch is in the on ( | ) position, there may be
a blown fuse.
4.2.2. Turn the power switch to off (O). Disconnect the AC power cord from the
electrical outlet and the generator/controller.
4.2.3. Release the fuse holder by pressing down the latch at the top of the fuse
holder next to the AC port. Pull the fuse holder out to access the fuse. See
Figure 4.1.

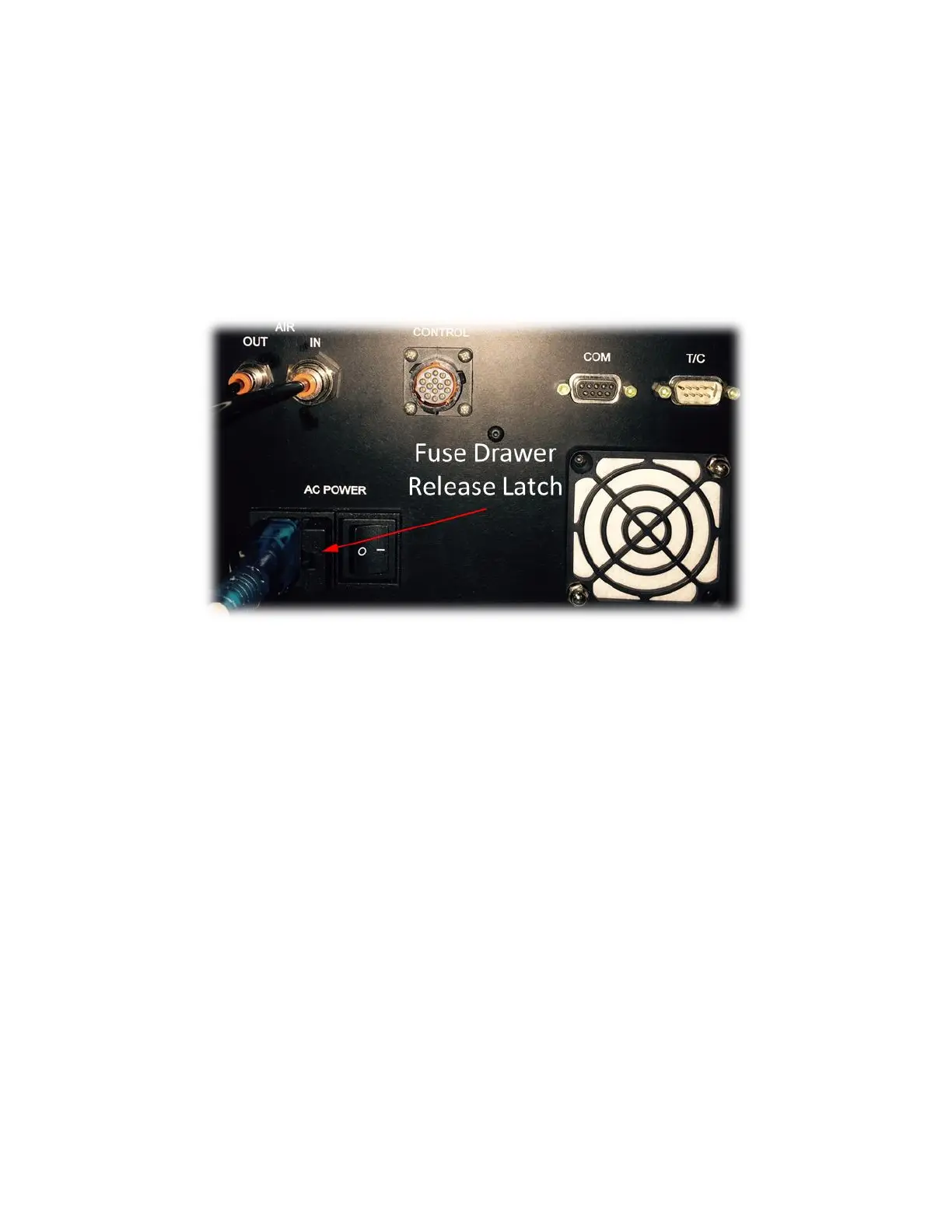

Figure 4.1 Fuse holder
4.2.4. Use the following type of replacement fuse:
 For 100 VAC and 115 VAC units:
◦ Littelfuse, time delay, rated 250V, 4A, Cat. No. 218.04.0
◦ Cooper Bussmann, time delay, rated 250V, 4A, Cat. No. GMG-4.0A
 For 230 VAC units:
◦ Littelfuse time delay, rated 250V, 2A, Cat. No. 218.01.6, 218.02.0
◦ Cooper Bussmann, time delay, rated 250V, 2A, Cat. No. GMG-2.0A
4.2.5. Replace the fuse in the fuse holder. Replace the fuse holder in the power input
receptacle on the generator/controller. Ensure that the latch engages.
Reconnect the AC power supply. Power on the generator/controller.
4.2.6. If fuses continue to blow, contact Vante.
