ProStar 210/215/ PrepStar 218/SD-1 SDM -28- 03-914947-20:5

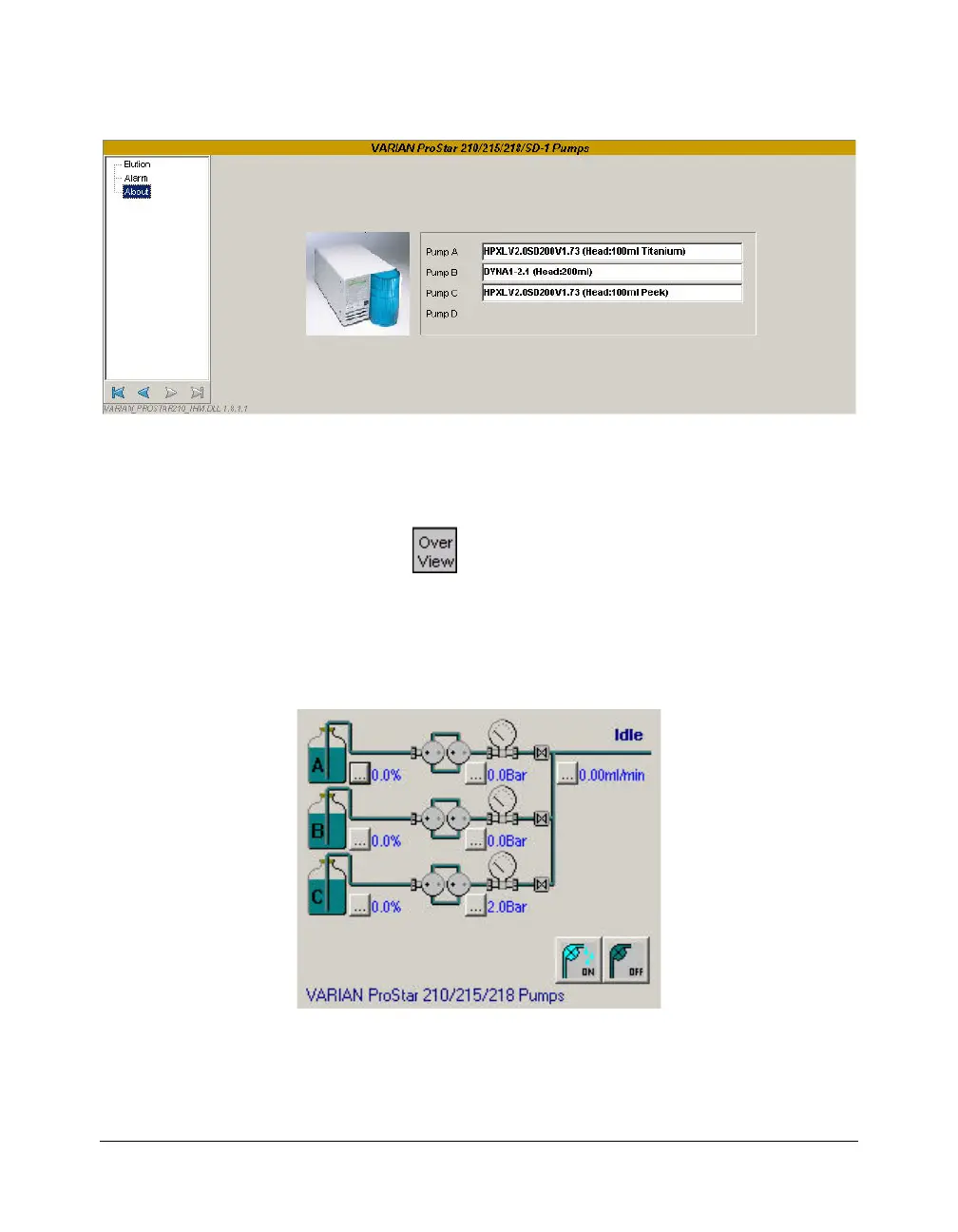

About Window
This tab is a read-only screen, where the pump head type and
the number of ProStar / PrepStar modules are shown.
Overview Window
Click on the button: the Status Overview window is
displayed and contains three tabs:
• General: displays the synopsis of the instrument,
where some current values can be read (flow,
pressures, etc.).
In this window, some parameters are shown, like the current
flow, the current pressure and the composition for each pump
module.
