Vasa SwimErg User’s Manual
PORT
PORT
ANT +
Connect the RED cable to “R”
port. Connect the other cable to
“L” port.
Figure C
Figure A
Cables extending through cable
channel ABOVE damper door.
PORT
PORT
ANT +
Use R and L ports.
Figure B
CONNECTION
PORTS
RED
STRIP
(Side angle of mounting bracket)
PORT
PORT
ANT +
PART 1 - Assembly
STEP 8: INSTALLING BATTERIES IN THE POWER METER
CAUTION: The Power Meter is a sensitive unit. Please handle with care at all times.
8.1. Locate the Power Meter in the small box packed inside BOX 3. (Front End Assembly)
8.2.Insertthetwo“AA”batteries(included)intothebatterycompartmentonthebacksideofthePower
Meter.
IMPORTANT: REMOVE THE BATTERIES if the Vasa SwimErg will be idle for 3 months or more.

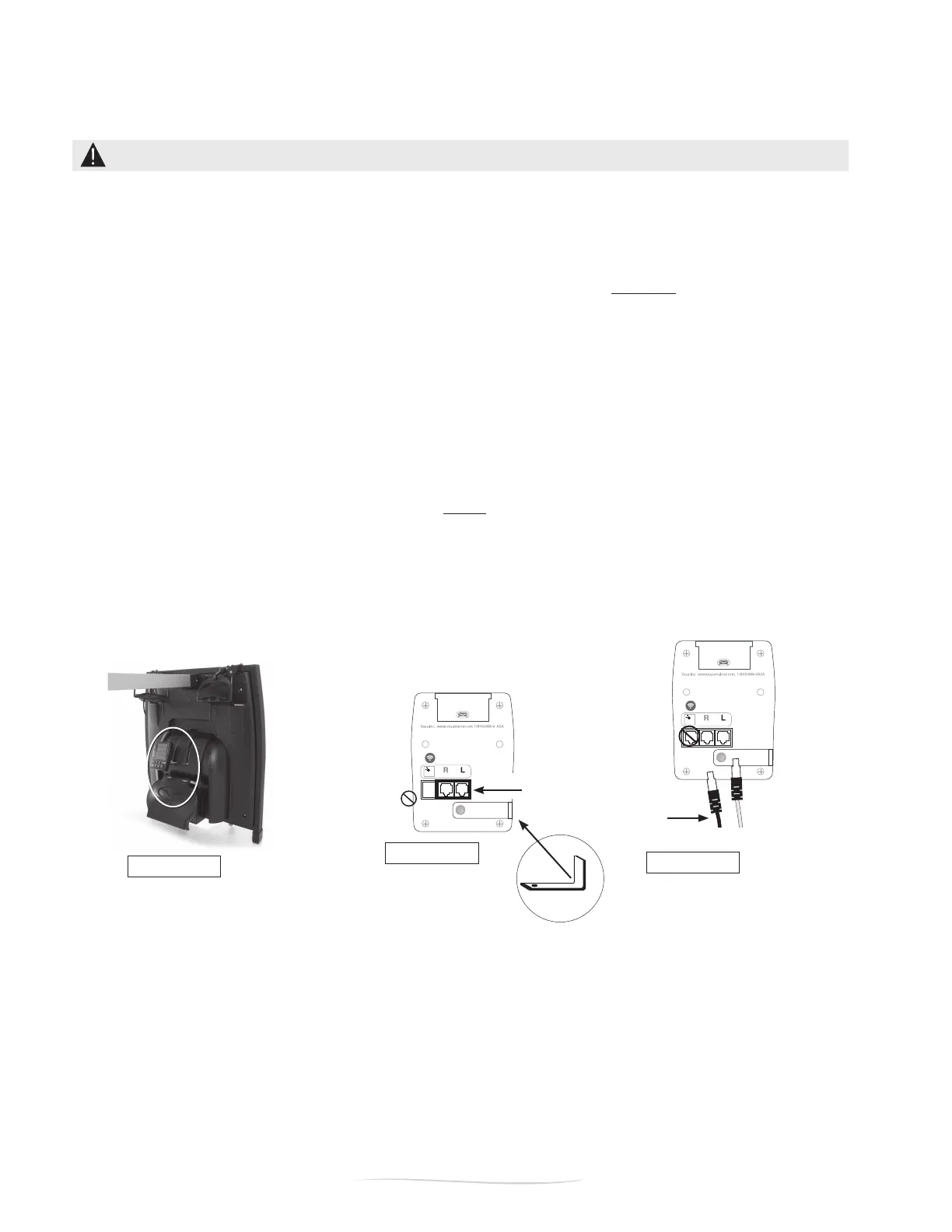

STEP 9: ATTACHING THE CABLES TO THE POWER METER
9.1. Locate the two cables extending from rear cover (Figure A).
9.2 Locate the two connection ports on the back of the Power Meter: R and L (Figure B).
9.3. Connect the cable with the Red Tape into the R port and the remaining unmarked cable into the
L port (Figure C).
IMPORTANT: Always turn the Power Meter OFF after you connect the cables to reset.
