STEP 5: UNPACKING FRONT END ASSEMBLY (BOX #3)

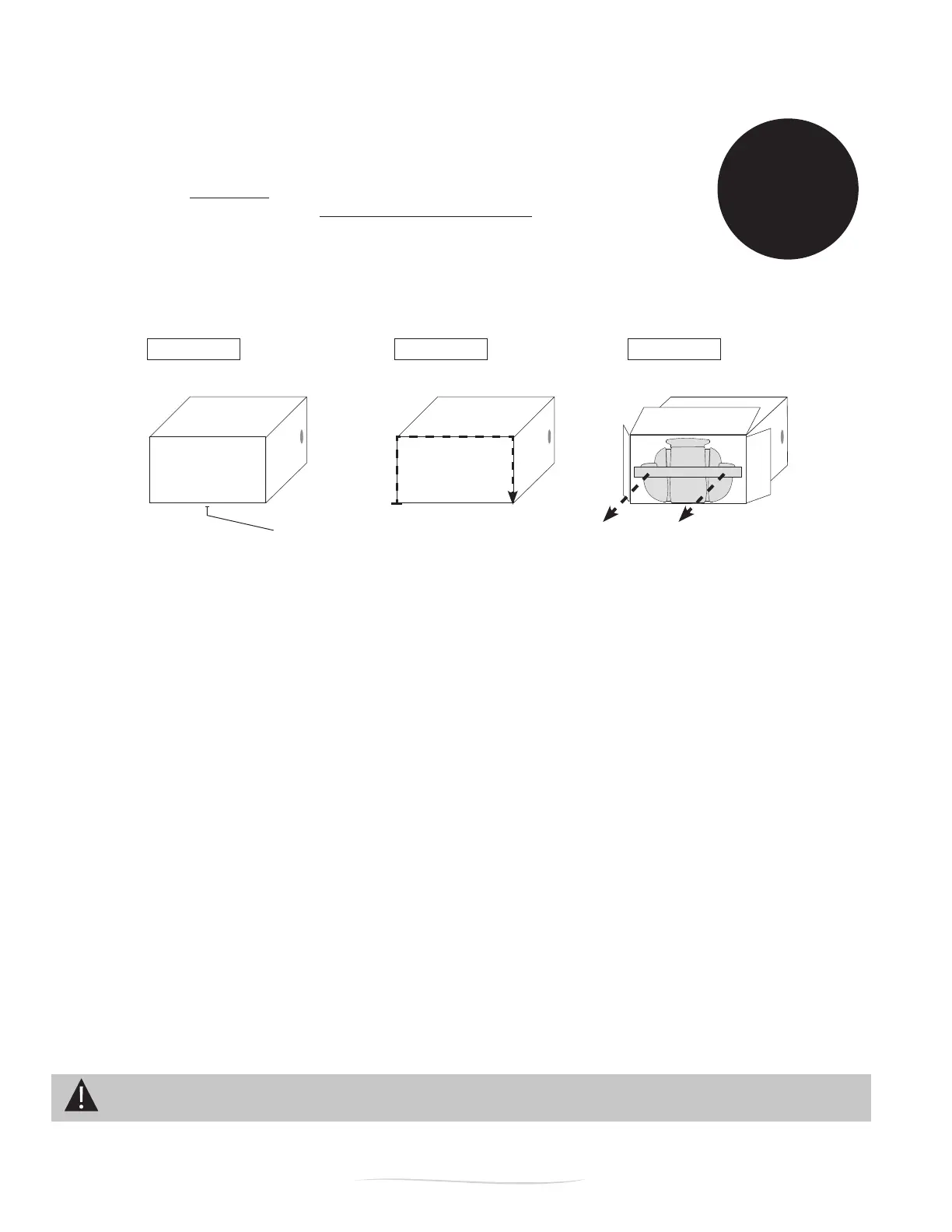

5.1.Laythefrontendboxdownon“SIDE1”(FigureA).
5.2 Open bottom end of box (Figure B). DO NOT OPEN TOP OF BOX. Remove the
cardboard insert & set aside. Leave the bag on the assembly.
5.3. Slide the assembly & bag out of the box (Figure C). Remove the smaller inner box
(containing the Power Meter) and set aside until Step 9.
5.3. Save all packaging and store in a dry place for 90 days of possible.
SAVE
ALL
PACKAGING
Box & inner
packaging
CAUTION: DO NOT STAND THE FRONT ASSEMBLY UPRIGHT UNTIL DIRECTED. It will
not stand securely by itself. Hold securely until it is attached to the monorail in STEP 6.
