Installation, Operating, and Maintenance Instructions
Series 021
VAT Vakuumventile AG, CH-9469 Haag, Switzerland
Tel ++41 81 771 61 61 Fax ++41 81 771 48 30 Email reception@vat.ch http://www.vat.ch
205440EC
2003-04-14
10/12

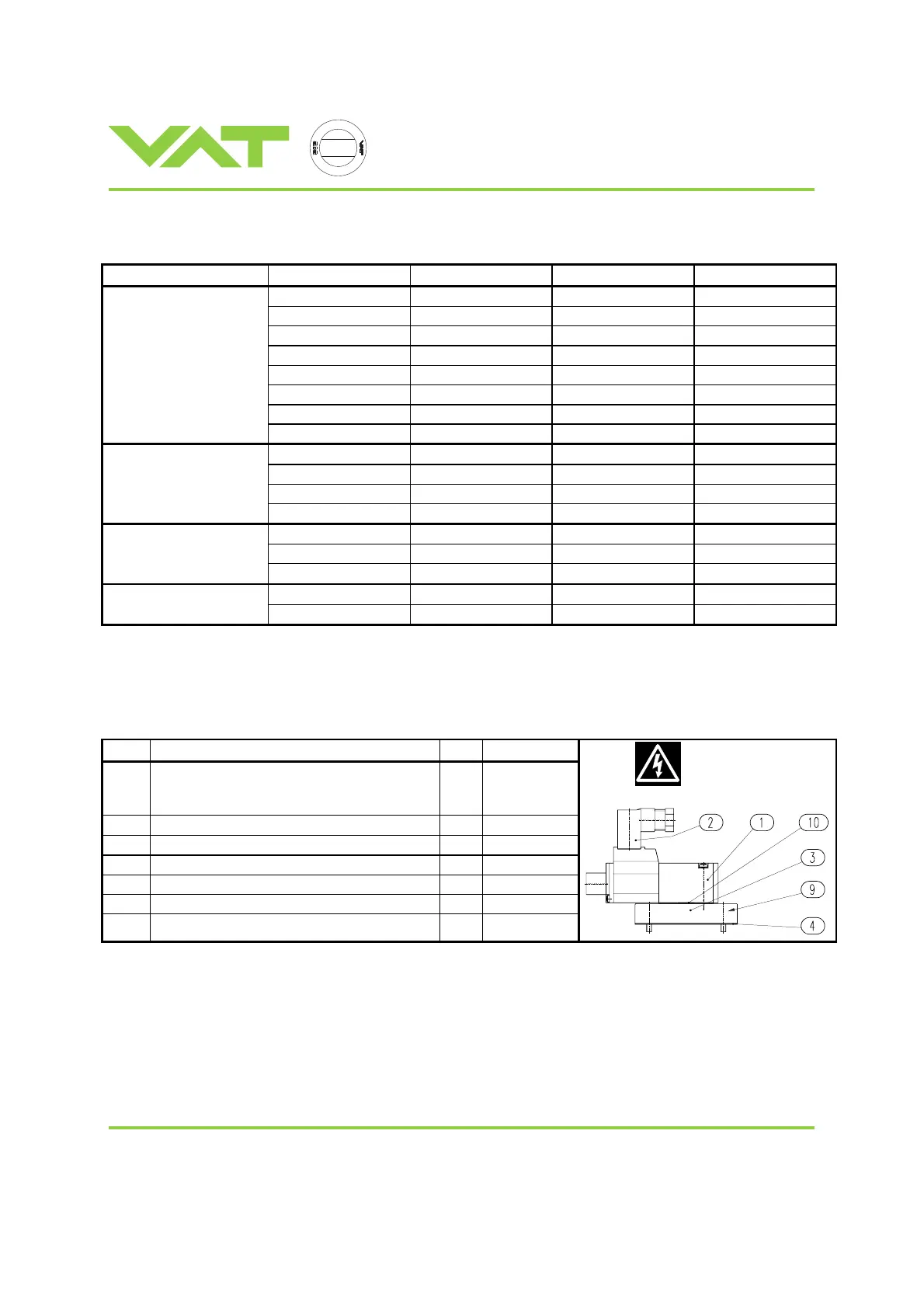

Gate with special vulcanized sealing material and/or special surface treatment, SEMI sizes
Gate material Sealing material 32 x 222 46 x 236 50x336
Chemraz® 630 96072-R1 96073-R1 96074-R1
Chemraz® 513 92032-R1 85104-R1 205413
Chemraz® E38 100432-R1 100430-R1 100431
Parofluor® V8514-65 93098-R1 91154-R1 204662
Perfluoro black 81063-R1 78510-R1 -
Silicone red 79416-R1 82625-R1 -
Silicone transparent - 85630-R1 -
Aluminium
SC 1107 205580 205581 204585
VITON® 80499-01 82510-01 95842-R1
Chemraz® 630 - 99424-R1 101367-R1
Chemraz® 513 93096-R1 88100-R1 -
Aluminium hard anodized
Parofluor® V8514-65 96045-R1 - -
VITON® 96062-R1 92796-R1 97154-R1
Chemraz® 630 - 97147-R1 -
Aluminium nickel plated
Chemraz® 513 - 89375-R1 -
Chemraz® 630 - 94106-R1 97077-R1 Stainless steel
Chemraz® 513 90151-R1 92057-R1 -
Not indicated sizes, materials, and surface treatments on request.
Solenoid
Item Description Qty Ordering No.
-
Solenoid kit
(consisting of all parts according to drawing)
1 206572
1
Solenoid - specify voltage!
1 N-7542-000
2 Plug 1 N-8501-402
3 Connection plate 1 206575
4 Seal 1 206576
9 Screw M3 x 12 4 N-6024-526
10 Seal flat 1 N-7501-012
