5. Setting up PC

Green21 (Model: PCT-90LH) Installation Manual 57

ENGLISH

5. Setting up PC

5.1 Direct Connection Diagram

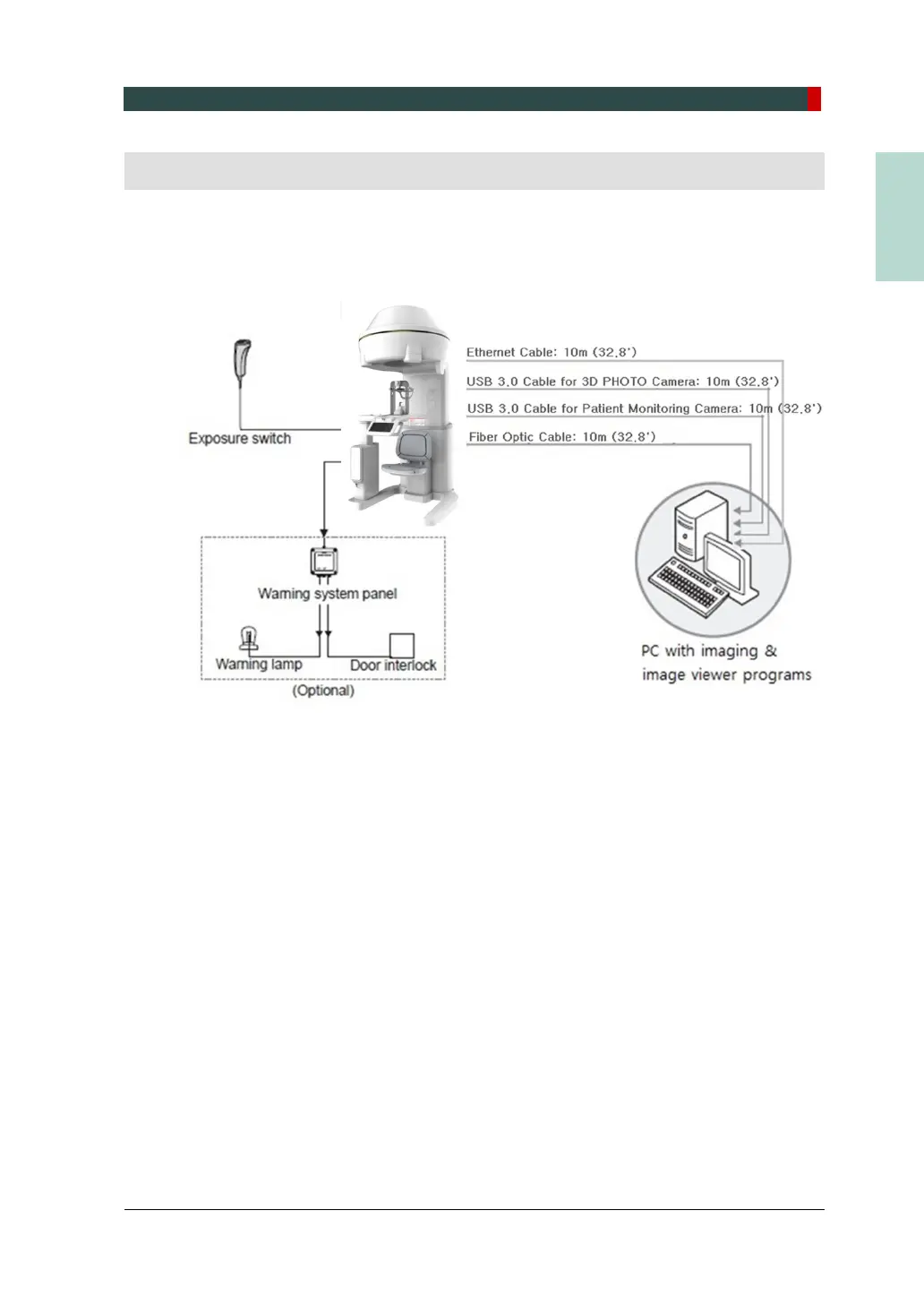

Figure 5-1. Direct Connection Diagram

 Fiber Optic Cable - Used to transfer image data to the PC.

 Warning System Panel - Used to provide a visible indicator: Light on when the

equipment is irradiating X-ray.
