Automotive Short And Open Finder
7
the vehicles with positive supply connected to chassis). Connect the red test lead to the
wire being traced. A fuse socket(with blown fuse removed), a connector provides a
4.
convenient hook-up.
Set the switch of the V210 receiver to the middle position. Press and hold the “TEST”
button, meanwhile move the probe sensor as close as possible to the wire to be traced.
The probe sensor should be placed perpendicular(90°) to the wire and either above or
5.
below it.
The V210 receiver gives audio signal. Trace the wire by following the tone of the receiver.
If you move the probe sensor away from the wire, the tone will decrease and then
disappear.
6. If the V210 receiver is dicult or impossible to pick up any signal, please increase the
sensitivity level and t again. And double check the suspected points. See ( Figure 3 )
( Figure 4 )

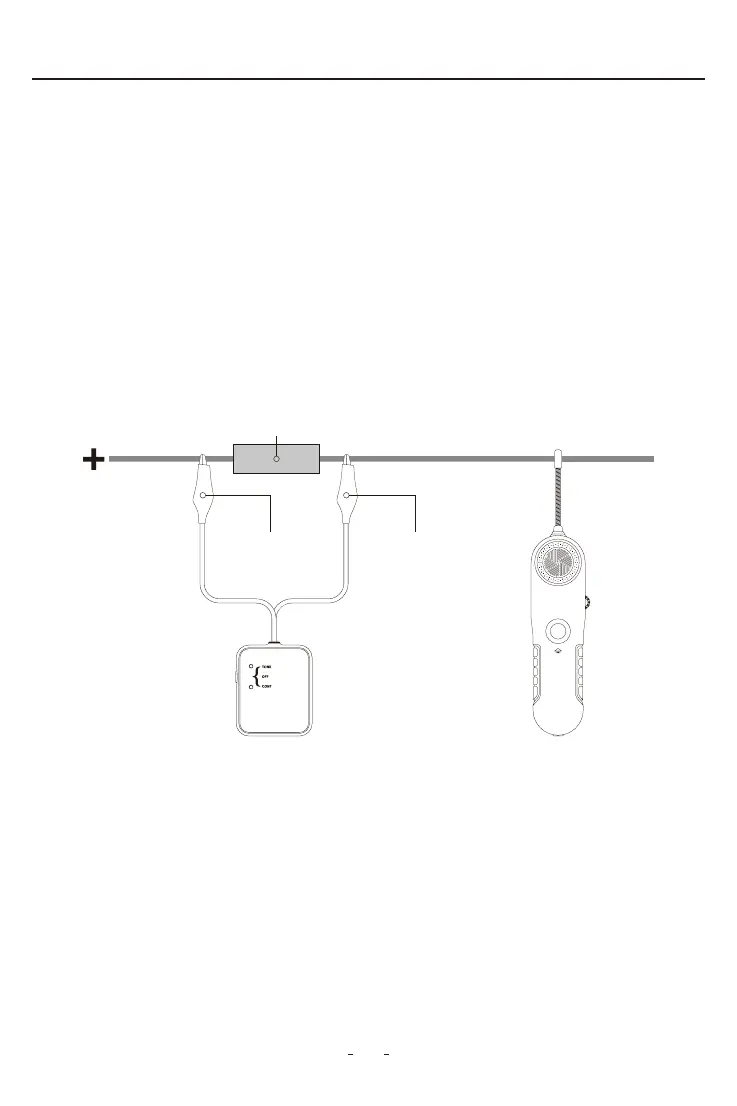

Fuse Socket or Connector
Figure 3
V210 Receiver
Black Negative Wire Red Positive Wire
V210 Transmitter
To Next Page
