Vector TCY3-T0121R User Manual

TCY3-T0121R Technical Data
Name
C YT T 0 1 2 1 H(- ) U(- ) D(- )-3
R
Deluxe version
2” x 4” housing
Integrated Humidity sensor
Relays for binary outputs
Number of analog outputs (AO) = 1
Number of binary output (DO) = 2
Number of analog inputs (AI) = 1
Number of binary inputs (DI) = 0
With external temperature input (RT)
Series (TCY3)
Ordering
Model Stock code Variant Mounting size Type Key-data
TCY3-T0121
R
40-10 0021 Standard
88mm x 88mm
No humidity
sensor
Compact PI controller
with:
1 TI int or ext
1 AI
2 DO (Relay)
1 AO
TCY3-T0121
R
-D 40-10 0022 Deluxe
TCY3-T0121
R
-U 40-10 0023 Standard
2” x 4”
TCY3-T0121
R
-U-D 40-10 0024 Deluxe
TCY3-T0121
R
-H 40-10 0025 Standard
88mm x 88mm
With humidity
sensor
TCY3-T0121
R
-H-D 40-10 0026 Deluxe
TCY3-T0121
R
-H-U 40-10 0027 Standard
2” x 4”
TCY3-T0121
R
-H-U-D 40-10 0028 Deluxe

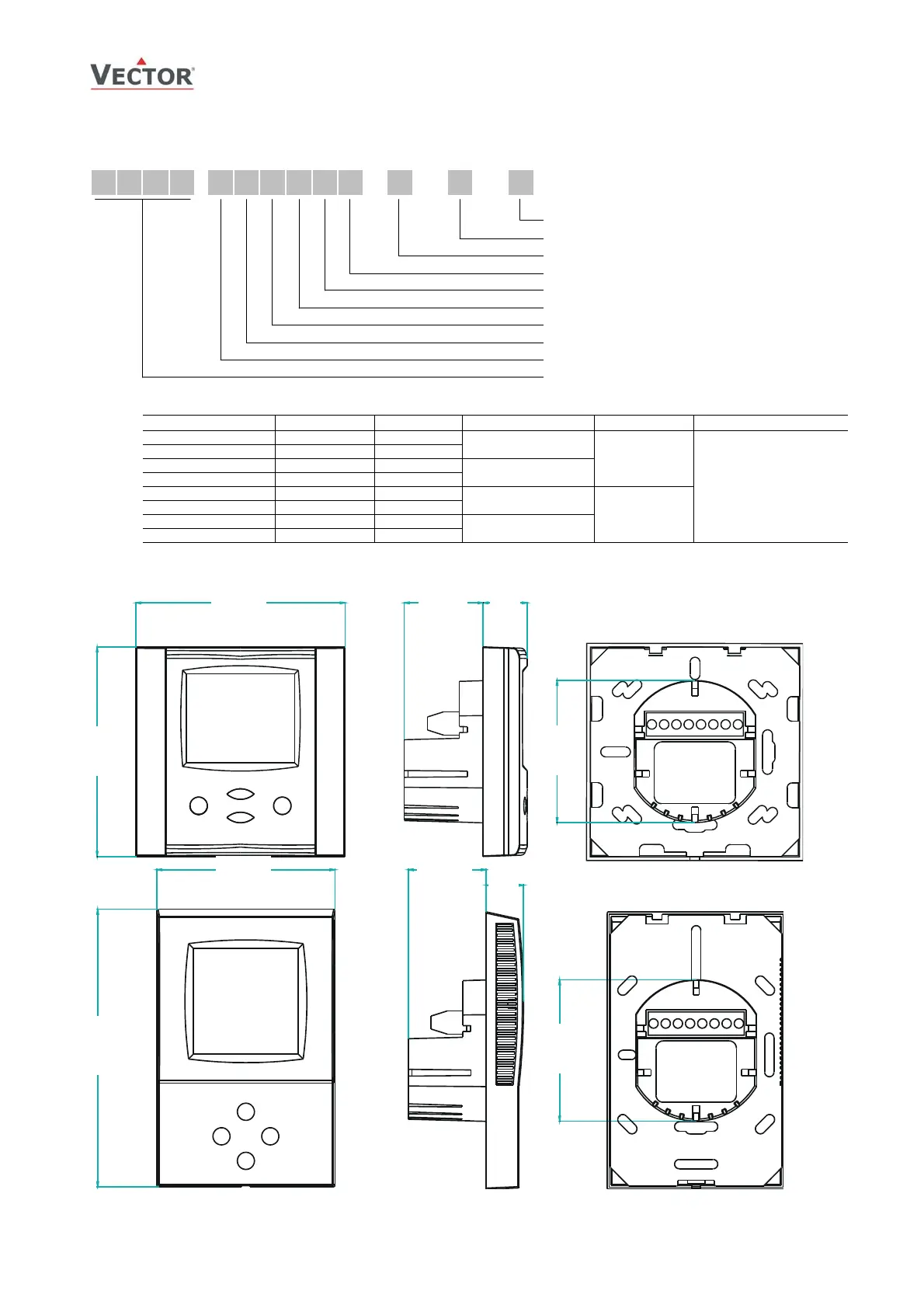

Dimensions [mm] (inch)
21
(0.8)
88
(
3.5
)
32
(
1.2
)
58 (2.3)
88 (3.5)
73
(
2.9
)
32
(
1.2
)
15
(
0.6
)
112 (4.4) 58 (2.3)
Doc: 70-000002 V1.0, 20101115 © Vector Controls GmbH, Switzerland Page 2
Subject to alteration

Vector TCY3-T0121R Specifications

General

Brand	Vector
Model	TCY3-T0121R
Category	Controller
Language	English
