Veeder-Root TLS2 Upgrade Guide

Installation of Upgrade Kit Safety Precautions
8

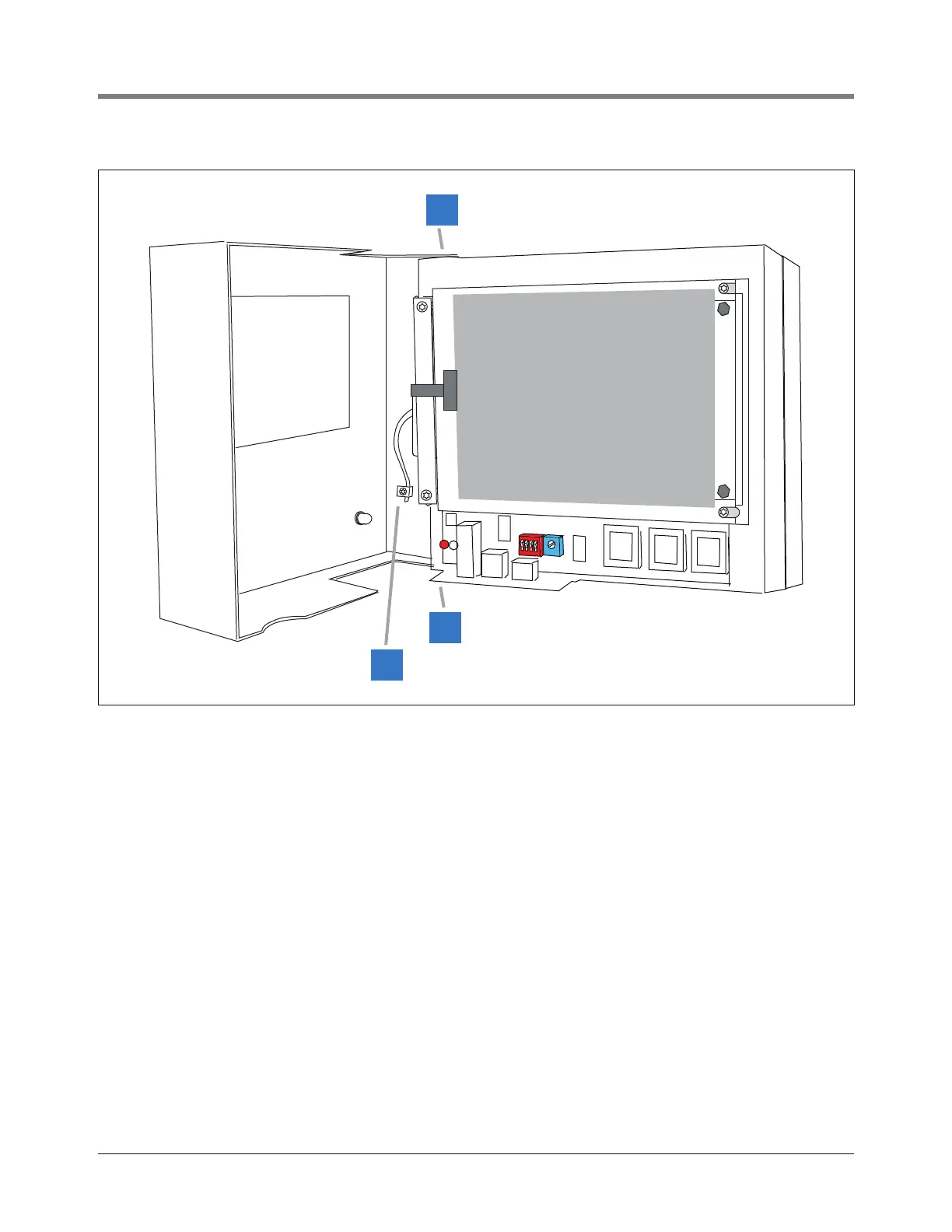

Figure 6. Attaching the new door to the TLS2P console
983-7.eps
1
1
2
1 Get the two T-15 torx shoulder screws and the new
TLS2P door.
2 Position the door over the left holes in the top and
bottom of the console and screw in the two shoulder
screws (item 1 in Figure 6).
3 Loosen the grounding clamp (item 2 in Figure 6) in the
door and push the grounding strap from the console
under the saddle clamp and tighten the screw.
