5Setupwiththedisplayandadjustmentmodule

MINITRAC 31 • Foundation Fieldbus

62076-EN-190704

5 Set up with the display and adjustment

module

5.1 Insert display and adjustment module

The display and adjustment module can be inserted into the sensor

and removed again at any time. It is not necessary to interrupt the

voltage supply.

Proceedasfollows:

1. Unscrewthesmallhousingcover

2. Place the display and adjustment module in the desired position

ontheelectronics(youcanchooseanyoneoffourdierentposi-

tions-eachdisplacedby90°)

3. Press the display and adjustment module onto the electronics

and turn it to the right until it snaps in

4. Screwhousinglidwithinspectionwindowtightlybackon

Disassembly is carried out in reverse order.

Thedisplayandadjustmentmoduleispoweredbythesensor,anad-

ditional connection is not necessary.

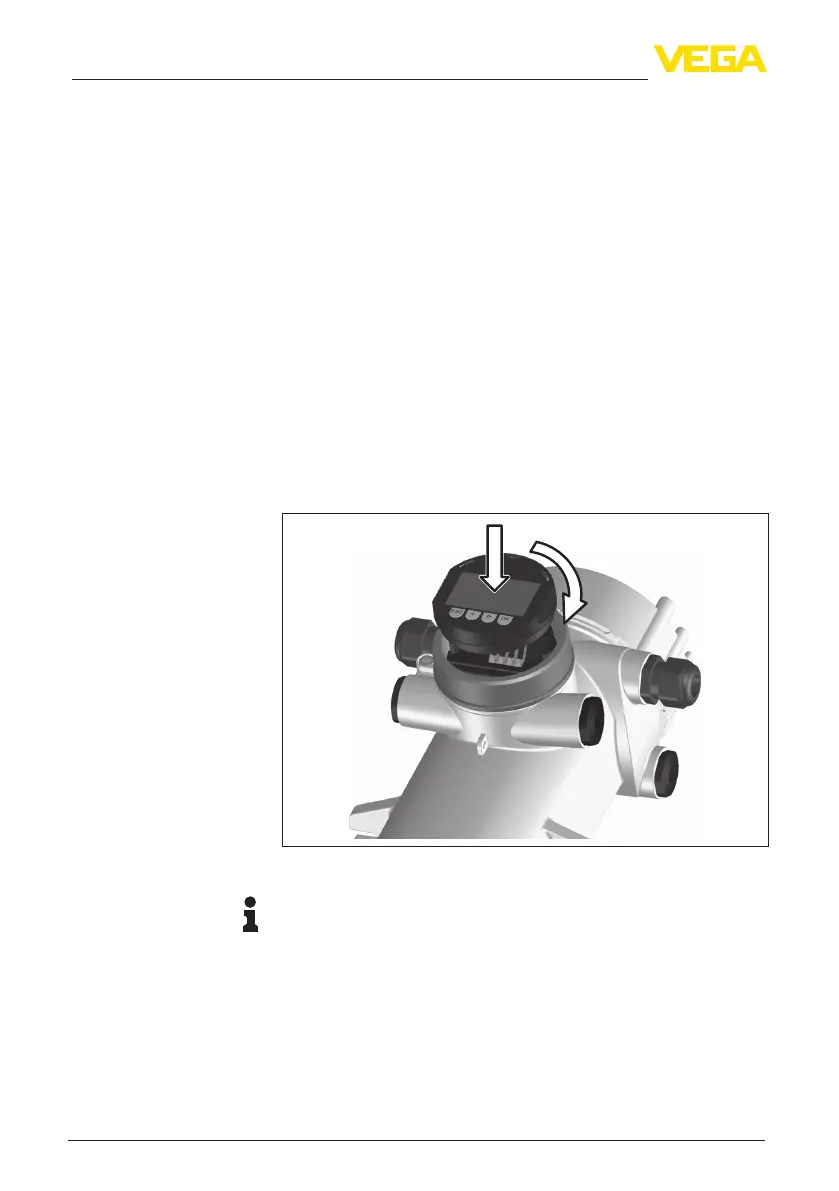

Fig. 18: Insert display and adjustment module

Note:

Ifyouintendtoretrottheinstrumentwithadisplayandadjustment

moduleforcontinuousmeasuredvalueindication,ahigherlidwithan

inspection glass is required.

5.2 Parameter adjustment - Density

measurement

The instrument is adapted to the application conditions via the pa-

rameteradjustment.Theparameteradjustmentiscarriedoutwithan

adjustment menu.

Mount/dismount display

and adjustment module
