Vega VEGAPULS C 23 User Manual

14
4 Mounting
VEGAPULS C 23 • Modbus and Levelmaster protocol
58349-EN-200806

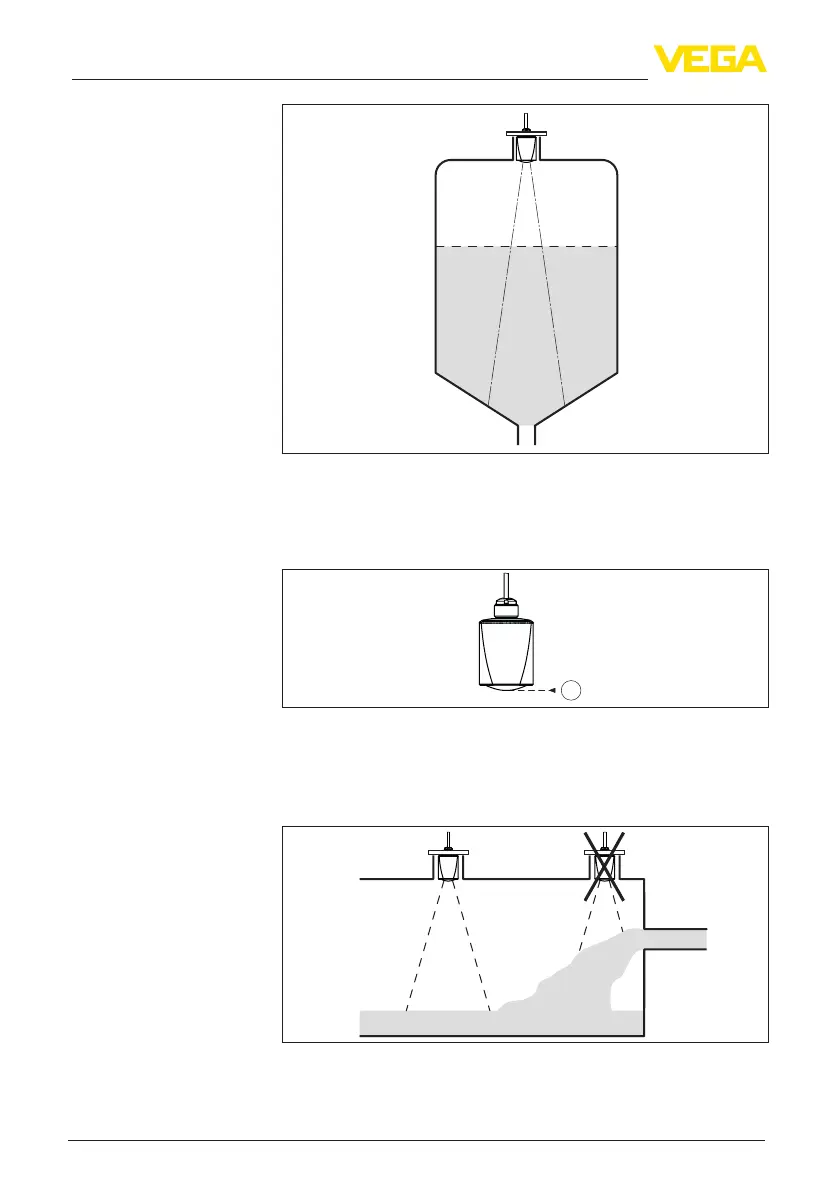

Fig. 8: Mounting of the radar sensor on vessels with conical bottom
The centre of the antenna lens is the beginning of the measuring
range and at the same time the reference plane for the min./max.
adjustment, see following diagram:
1
Fig. 9: Reference plane
1 Reference plane
Donotmounttheinstrumentsinorabovethellingstream.Makesure
thatyoudetectthemediumsurface,nottheinowingproduct.
Fig. 10: Mounting of the radar sensor with inowing medium
Reference plane
Inowingmedium
