6 - MicroVee User’s Manual
LFE CONNECTION - OPTION A
Figure 2 shows connection from your home theater receiver to the LFE input on the back of your subwoofer.
When the subwoofer is installed in this fashion, all of the low frequency information from your “LFE Out” or
“Subwoofer Out” on the back of your receiver will pass into your Velodyne subwoofer. This connection is the
most common connection method when using your subwoofer with a 5.1 receiver. (Cable needed: 1 mono RCA
cable.)

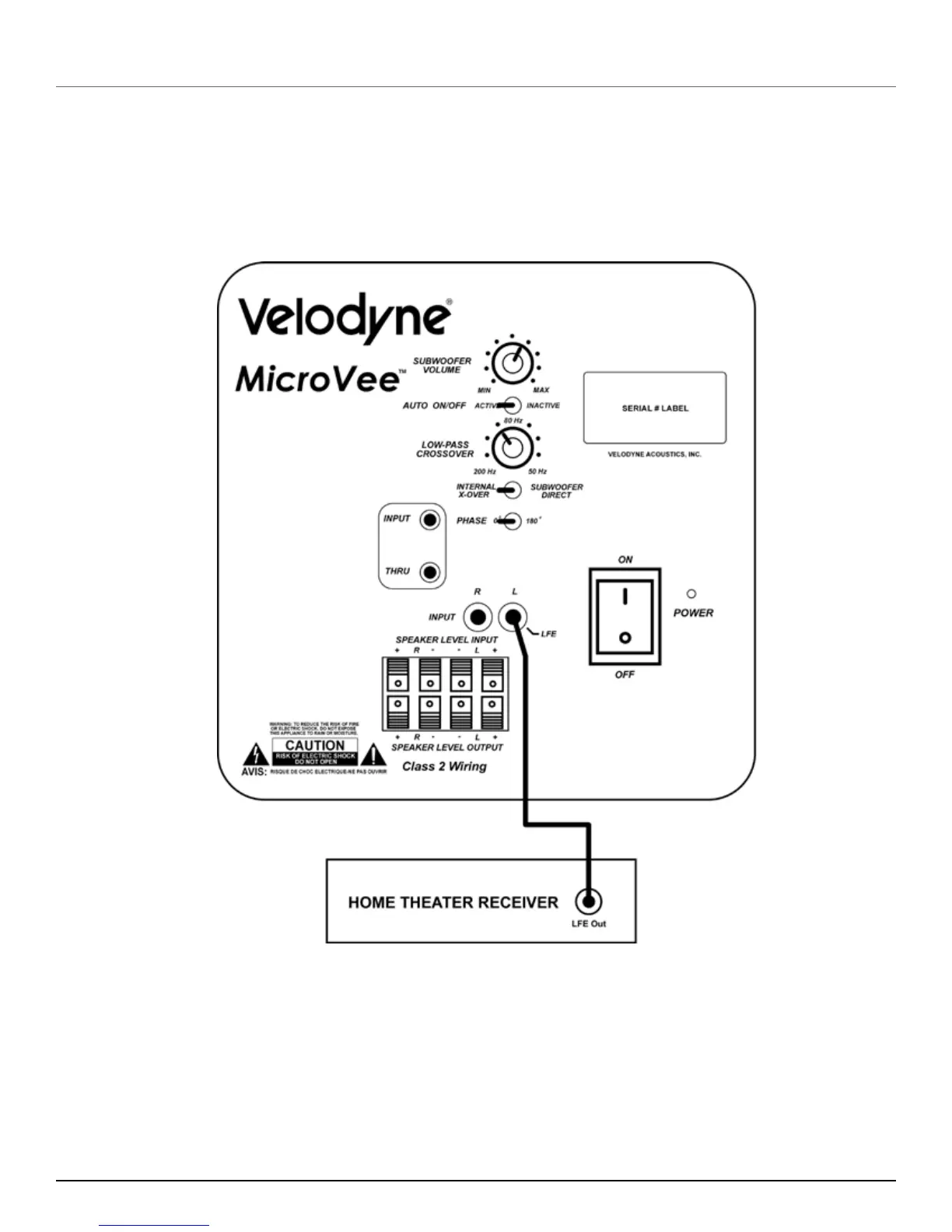

Figure 2. Installation Using LFE Line-Level Inputs

Velodyne MicroVee Specifications

General

Weight	20 lbs
Phase	0 or 180 degrees
Enclosure Type	Sealed
Inputs	Line-level
Finish	Black
Driver Size	6.5 inch forward firing, 2 x 6.5 inch passive radiators
Low Pass Crossover	50 Hz - 200 Hz (12dB/Octave)
