* The corresponding error codes of different system protocols are different. If the error code
appears, please communicate with our sales and technical support team to verify and confirm!
11. Wire definition
11.1 Standard wires definition:
The standard outlet of the display is in the form of a board end plug-in. The standard outlet needs
to match the corresponding conversion wire. Velofox has set a corresponding standard for
conversion wire length and interface standards. If the standard setting cannot be met, specially
customized conversion wires are required.
DM03 offers two modes of outlet: board end plug-in and non-board end plug-in. The non-board
end plug-in mode is a conventional way for direct cable access to the product.

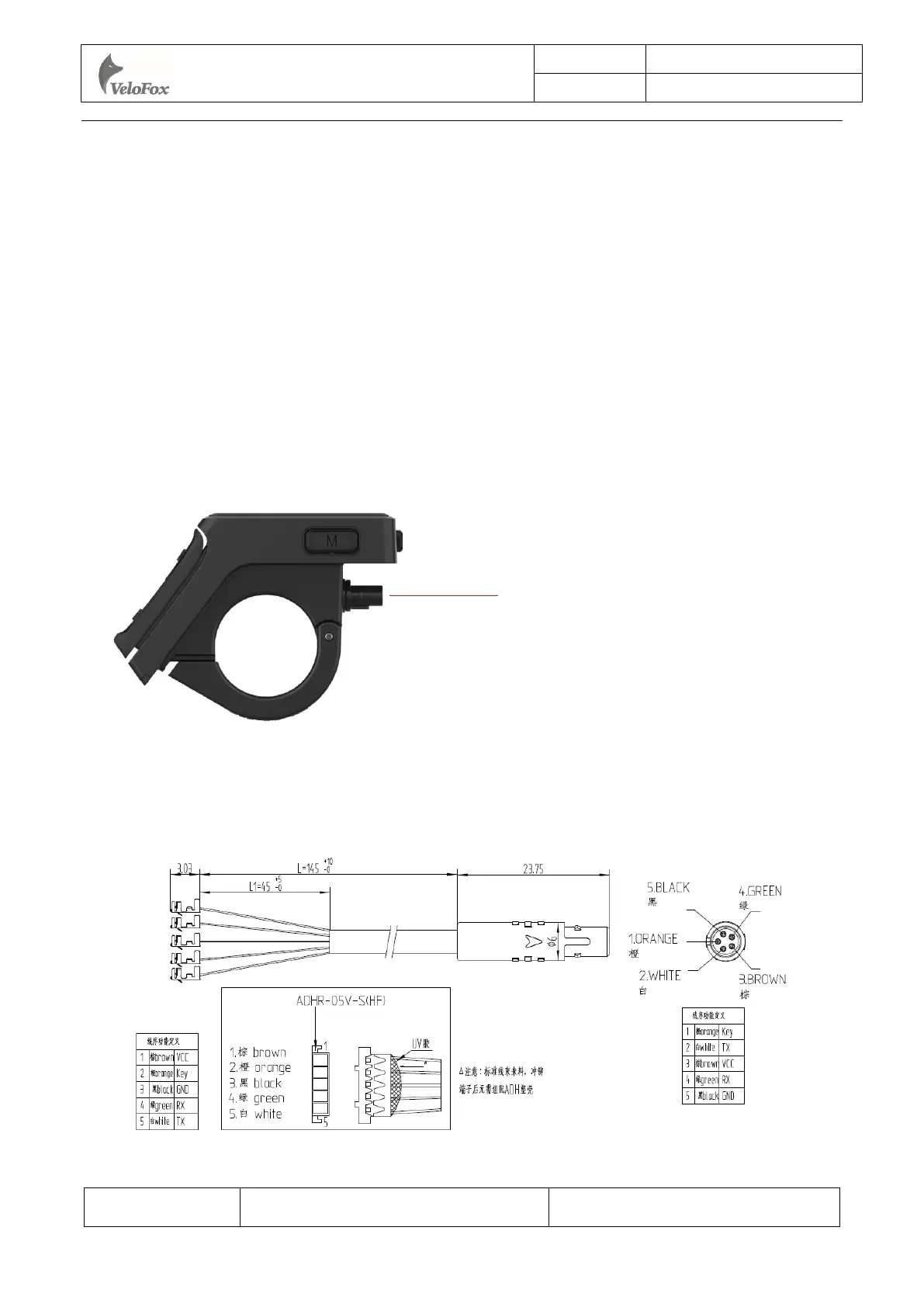

Standard outlet in a sample is shown in the figure below:
Table 1 Standard wire definition
No.
Color
Function
Standard outlet is board end plug-in
