OPERATIONAL CONTROLSOPERATIONAL CONTROLS
Standard Operational Control Locations

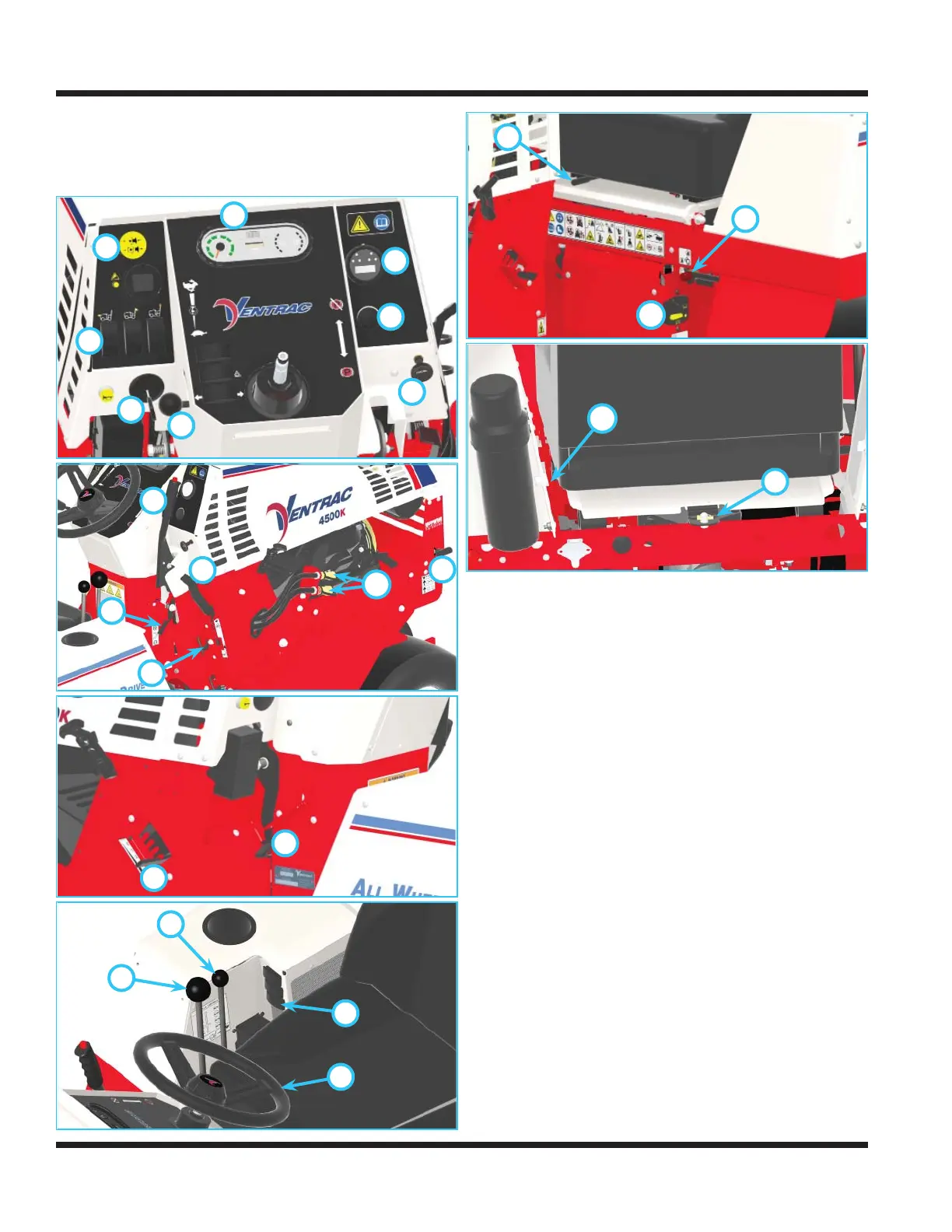

Use the following images to help identify the locations
of operational controls. The letter next to each control
can be referenced to the list that follows these images.
A. Information Cluster Gauge
B. Warning Cluster Gauge
C. Warning Alarm (Continuous)
D. Ignition Switch
E. Throttle Lever
F. Headlight Switch
G. PTO Switch
H. Choke Handle (if equipped)
I. Parking Brake
J. Neutral Assist Lever
K. Front Hitch Lever Lock
L. Front Hitch Latch Lever
M. Auxiliary Hydraulic Quick Couplers
N. PTO Belt Tensioner Rod
O. High/Low Shift Lever
P. Weight Transfer Select Lever (if equipped)
Q. Primary SDLA Control Lever
R. Secondary SDLA Control Lever
S. Steering Wheel
T. Hydraulic Cooler Fan Switch
U. Seat Slide Lever
V. Fuel Shut-off Valve
W. Circuit Breaker & Battery Disconnect
X. Seat Prop Plate
Y. Seat Latch Strap
