GENERAL OPERATION
Operation - 35

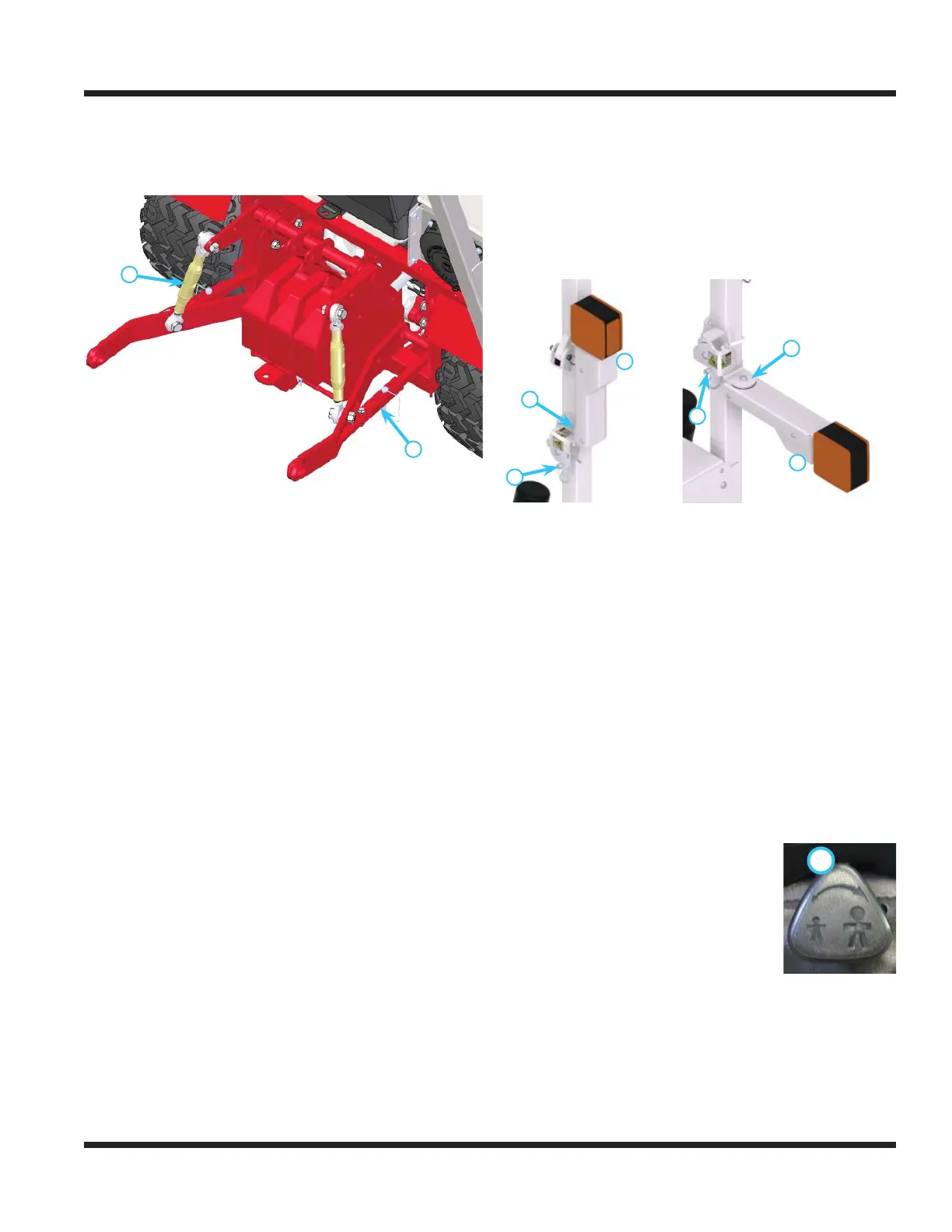

3 Point Hitch (Optional Accessory)
Some light and medium duty implements (non-PTO
powered) can be used on the rear of a 3 point hitch
equipped power unit.
1
1
2
2
1. Lift Link 2. Stabilizing Link
The 3 point hitch is equipped with adjustable lift
links (1) to control the individual draw bars. The
stabilizing links (2) can be allowed to swing freely or
can be locked at a desired position.
The 3 point hitch is equipped with three control han-
dles. The inside handle raises and lowers the draw
bar. The middle handle controls the left rear set of
hydraulic quick couplers. The outside handle con-
trols the right rear set of hydraulic quick couplers.
12 Volt 4-Pin Auxiliary Outlets (Optional
Accessory)
Certain attachments require a 12 volt auxiliary outlet.
Plug the attachment’s 12 volt power cord into the 12
volt 4-pin outlet. The actions of the front 12 volt outlet
are controlled by an on/off switch and two momentary
on buttons on the SDLA handle. The actions of the
rear 12 volt outlet are controlled by an on/off switch
and a momentary on/off/on switch on the panel
behind the SDLA control. The momentary buttons or
switch are used for controlling movement that is only
used for a brief time. The on/off switches are used to
activate equipment or select different functions.
Directional/Hazard Flasher Operation
(Optional Accessory)
The directional signal / hazard fl asher lights are
mounted on adjustable arms. They can be posi-
tioned with the arms up for standard use, or the
arms can be rotated down for use on power units
equipped with dual wheels.
To change the light position:
1.
1
1
3
3
4
4
2
2
3
3
4
4
1. Standard Position
2. Dual Wheel Position
3. Lock Pin
4. Pivot Friction Washer
Remove the lock pin (3).
5. Move the arm to the desired position.
6. Lock arm in place with the pin.
The light arm is mounted to the pivot bracket using
a friction washer that allows the light to pivot forward
or backward when it contacts an object (4).
If the light arm gets knocked out of position, manu-
ally move the arm back into alignment.
Suspension Seat Weight Adjustment
(Optional Accessory)
The optional suspension seat can be adjusted for
the operator’s weight.
1. Park the power unit on a level surface.
2.
A
A
Engage the parking brake.
3. With the operator sitting on the
seat, turn the knob (A) on the
front of the seat clockwise to
increase the amount of suspen-
sion for a heavier operator. Turn
the knob on the front of the seat
counterclockwise to reduce the
amount of suspension for a lighter operator.
Adjust the seat until a comfortable amount of
suspension is found.
