Ventrac 4500Z User Manual

SERVICE
Service - 50
8. Insert a new fuse into the socket. Be certain to
use the correct amperage fuse or damage may
occur to the power unit.
9. Reinstall the sealed fuse cap and lower the seat
back down to the operating position.
10. Turn the battery disconnect switch to the On
position.

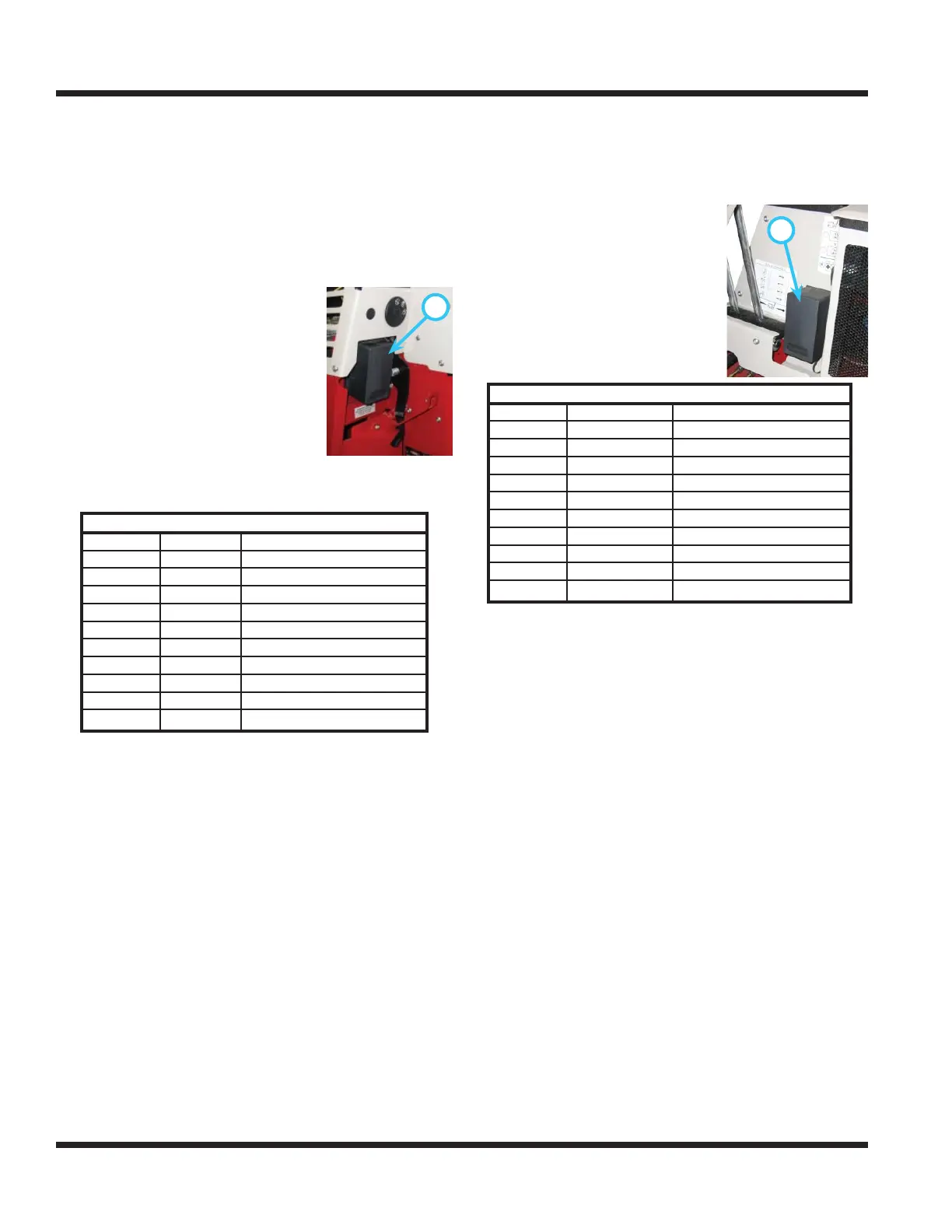

Replacing Fuses (Front Fuse Panel)
1. Park the power unit on a level
A
A
surface.
2. Engage the parking brake and
shut off the engine.
3. Remove the key from the igni-
tion switch.
4. Turn the battery disconnect
switch to the Off position.
5. Remove the sealed cover (A)
from the fuse panel.
6. Identify and pull the defective fuse from the socket.
7.
Front Fuse Panel (Mini Fuse)
Position Fuse Circuit
1 15 amp PTO
2 5 amp Gauges
3 5 amp Engine
4 15 amp Lights
5 10 amp Fuel Pump
6* 10 amp Work/Strobe
7* 10 amp
Back-up / Horn / Directional
8 5 amp Tractor Control Module 1
9^ 10 amp Diesel Stop
10 10 amp Tractor Control Module 2
*Optional accessory.
^Diesel only.
Insert a new fuse into the socket. Be certain to
use the correct amperage fuse or damage may
occur to the power unit.
8. Reinstall the sealed cover onto the fuse panel.
9. Turn the battery disconnect switch to the On
position.
Replacing Fuses (Rear Fuse Panel)
1. Park the power unit on a level surface.
2. Engage the parking brake and shut off the engine.
3. Remove the key from the ignition switch.
A
A
4. Turn the battery disconnect
switch to the Off position.
5. Tilt the seat forward and
fasten in place with the seat
prop.
6. Remove the sealed cover (A)
from the fuse panel.
7. Identify and pull the defective
fuse from the socket.
8.
Rear Fuse Panel (Mini Fuse)
Position Fuse Circuit
1* 25 amp (CB) Spreader
2* 30 amp (CB) Cab
3* 10 amp Spreader Vibrator
4* 20 amp 12v Rear
5* 5 amp Slope Indicator
6* 5 amp 12v Front 1
7* 15 amp 12v Front 2
8* 10 amp Hyd. Aux
9 5 amp Seat Switch Circuit
10 25 amp (CB) Hydraulic Oil Cooler Fan
*Optional accessory.
Insert a new fuse into the socket. Be certain to
use the correct amperage fuse or damage may
occur to the power unit.
9. Reinstall the sealed cover onto the fuse panel and
lower the seat back down to the operating position.
10. Turn the battery disconnect switch to the On
position.
