SERVICE
Service - 38

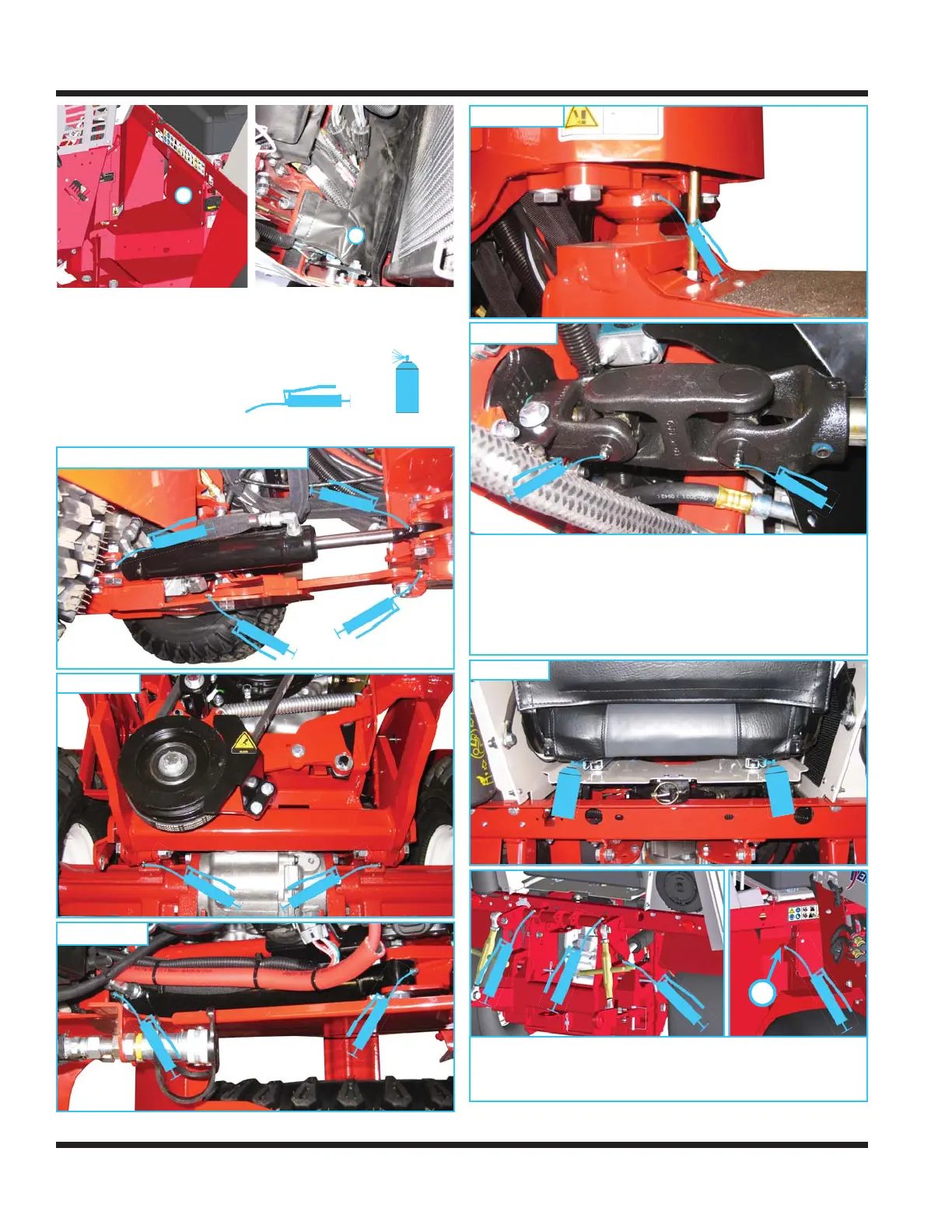

Lubrication Locations
Grease Spray Lube
Lubrication is required at the following
locations. Refer to the
maintenance schedule
for service intervals
and amount of grease.
Steering Cylinder & Connector Link
Steering Cylinder & Connector Link
Front Hitch
Lift Cylinder
Center Pivot
Drive Shaft
On the 4500K, the drive shaft can be greased
through access points in the drive shaft cover. On
all other models, the front fi tting can be reached
in front of the radiator and the rear fi tting can be
reached in back of the radiator, after pulling back
the canvas debris barrier.
Seat Slide
A
The front grease fi tting on the 3 point cylinder can
be greased through an access hole (A) in the right
foot platform panel.
8. Lower Rear Frame Cover 9. Debris Barrier
8
9
