Ventrac 4500Z User Manual

SERVICE
Service - 52
Replacing The Taillights
The taillights are equipped with LEDs and do not
use a replaceable bulb. If a taillight no longer func-
tions, the entire taillight must be replaced.
Replacing The Turn Signal Lights
The signal lights used for the turn signal / hazard
fl asher kit are equipped with LEDs and do not use
a replaceable bulb. If a signal light no longer func-
tions, the entire light must be replaced.

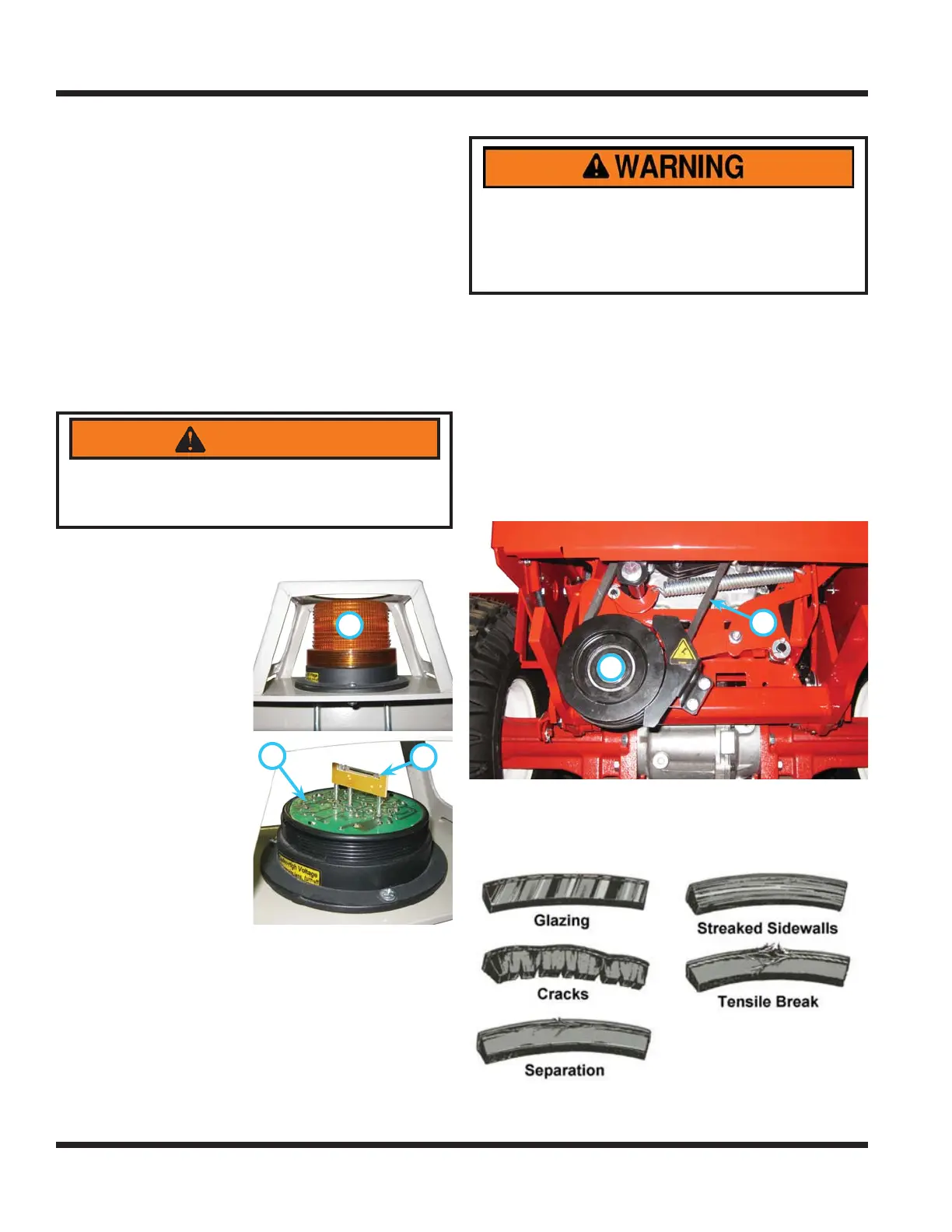

Replacing The Strobe Light Bulb
1. Park the power unit on a level surface.
2. Engage the parking brake and shut off the engine.
3. Remove the key from the ignition switch.
4.
WARNING
High Voltage!
Before removing strobe light lens, turn off power and
wait fi ve minutes for the capacitor to discharge.
C
C
B
B
A
A
Turn the battery disconnect switch to the Off
position and wait fi ve minutes for the capacitor to
discharge.
5. Unscrew the strobe
lens (A) from the
base.
6. Hold the circuit board
(B) in place with one
hand and remove the
strobe bulb (C).
7. Install the new strobe
bulb, pushing it
securely onto the cir-
cuit board connectors.
8. Ensure the circuit
board and the o-ring
are in place and rein-
stall the strobe lens.
9. Turn the battery dis-
connect switch to the
On position.
PTO Belt Inspection
Always set the parking brake, shut off power
unit engine, remove the ignition key, and ensure
all moving parts have come to a complete stop
before inspecting components or attempting any
repair or adjustment.
Inspecting the PTO belt (A) of this power unit can
prevent sudden belt failure by fi nding problems
before they cause the belt to break. Inspect the PTO
belt prior to operation, as part of the daily inspection
or anytime a problem is suspected. There may be a
PTO belt problem if there is a squealing or chatter-
ing sound, or the smell of a slipping belt.
1. Park the power unit on a level surface.
2. Engage the parking brake and shut off the engine.
3. Remove the key from the ignition switch.
4. Check the PTO belt (A) at the PTO idle pulley (B).
5.
A
A
B
B
Typical wear on a drive belt may result in the
conditions shown in the diagram. If any of
these conditions occur, the drive belt will
require replacement.
