Ventrac 4500Z User Manual

SERVICE
Service - 51

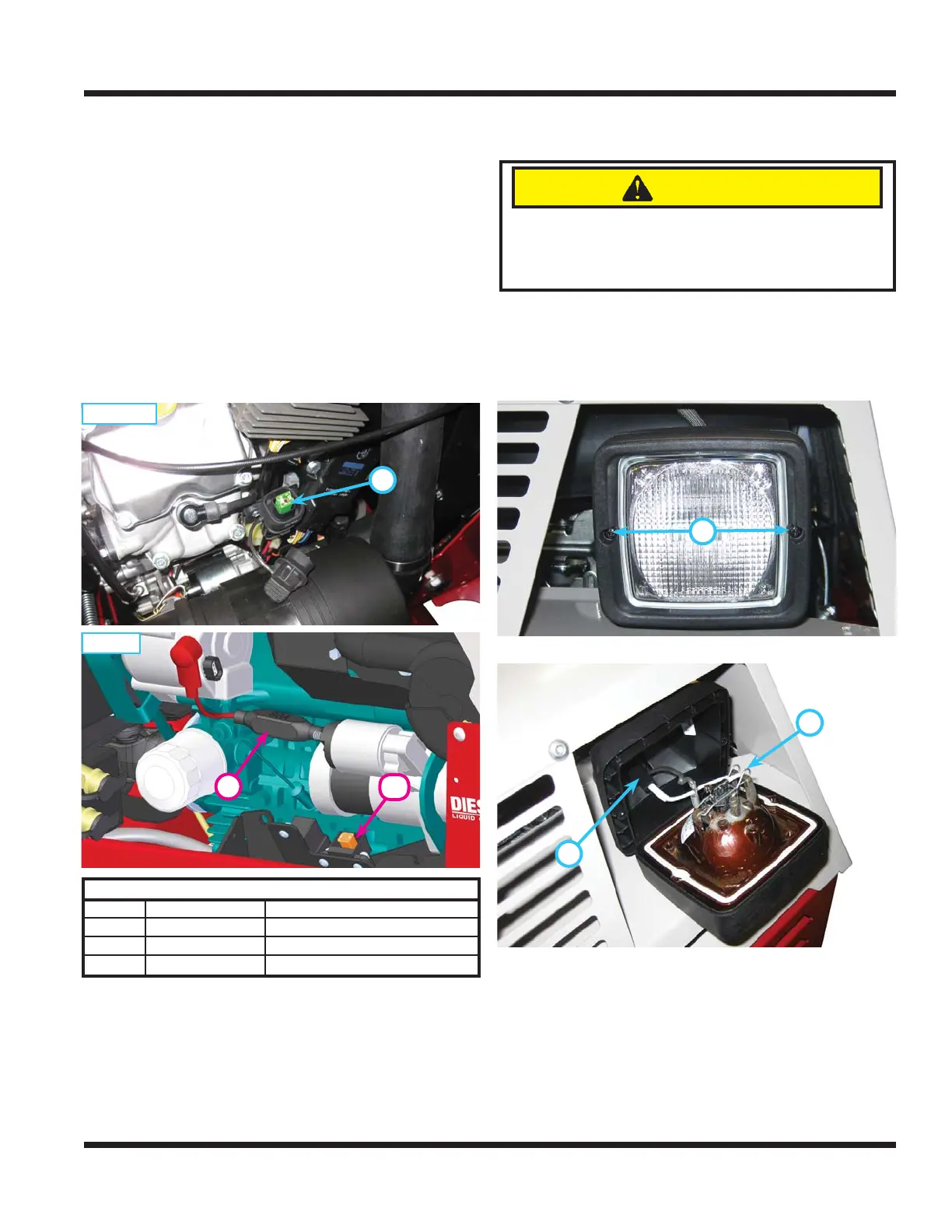

Replacing Fuses (Engine)
1. Park the power unit on a level surface.
2. Engage the parking brake and shut off the engine.
3. Remove the key from the ignition switch and
allow the engine to cool.
4. Turn the battery disconnect switch to the Off
position.
5. Open the engine hood to access the engine
compartment.
6. (Kubota fuse link) Remove fuse link (B) from
starter and alternator and install new fuse link.
7. (Kawasaki & Kubota Diesel Fuses) Locate the
fuse holder (A or C) and pull up on the tab to
remove the cover.
8.
A
A
Kawasaki
Kawasaki
B
B
Kubota
Kubota
C*
Engine Fuses
Position Fuse Circuit
A 50 amp J-Case Charge (Kawasaki)
B 80 amp fuse link Charge (Kubota Gas & Diesel)
C 50 amp J-Case Glow Plug (*Kubota Diesel only)
Pull the defective fuse from the socket.
9. Insert a new fuse into the socket. Be certain to
use the correct amperage fuse or damage may
occur to the power unit.
10. Reinstall the fuse cover.
11. Close the engine hood and turn the battery dis-
connect switch to the On position.
Replacing Light Bulbs
(Headlights & Work Lights)
1.
CAUTION
The light bulb contains gases under pressure.
The bulb may shatter if the glass is scratched or
dropped. Wear eye protection and handle bulb
with care.
Park the power unit on a level surface.
2. Engage the parking brake and shut off the engine.
3. Remove the key from the ignition switch.
4. Remove the two screws (A) from the light cover
and remove the cover.
5.
A
A
Disconnect the light bulb wire from the plug (B).
6.
B
B
C
C
Pinch the wire spring fastener (C) and lift away
from the light bulb.
7. Remove the defective light bulb.
8. Install the new light bulb and secure with the
wire spring fastener.
9. Connect the light bulb wire to the plug.
10. Reinstall the light cover.
