OPERATIONAL CONTROLS
Operation - 19

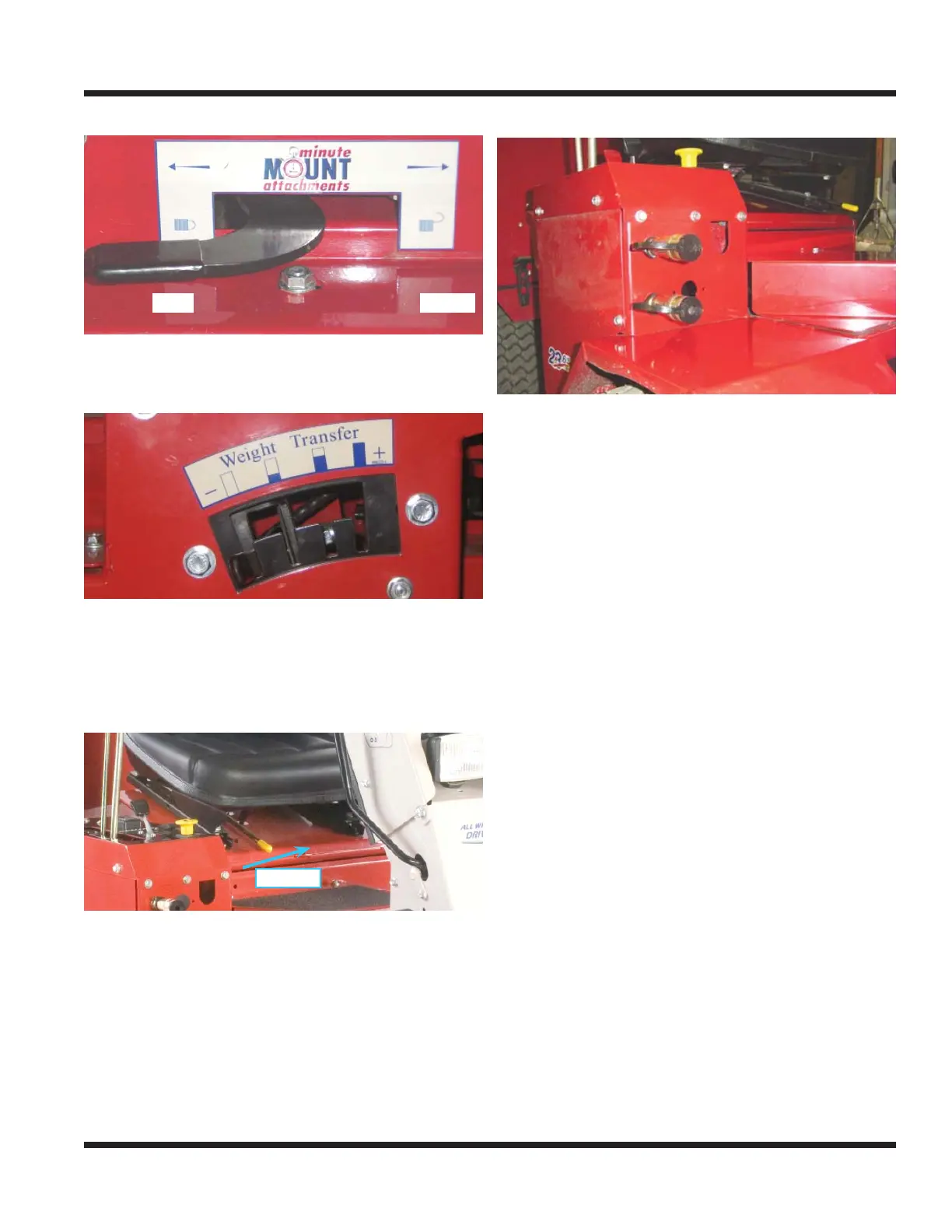

Attachment Lock Lever (F)
Lock
Unlock
The attachment lock lever engages the hitch lock for
attaching or detaching Ventrac attachments.
Weight Transfer Adjustment Lever (G)
The weight transfer system transfers weight from the
attachment to the front wheels of the power unit. The
operator can select different transfer rates by select-
ing one of the four positions. Note: the front hitch
must be fully raised to adjust the lever.
Seat Slide Adjustment Lever (H)
Release
Move lever to the left to release lock. Slide the seat
to the desired location and release the lever.
Auxiliary Hydraulic Quick Couplers (V)
The two couplers are a part of the auxiliary hydrau-
lic circuit and are used with an attachment which
requires hydraulics (e.g. to angle a dozer blade or
rotate the discharge on the snow blower).
Volt Gauge (A)
Displays the voltage level of the charging system.
Engine Coolant Temperature Gauge (B)
Displays the temperature of the engine cooling system.
