19 | Page
Description Key combination Display
100 RPM 80 525ML/MN
100 RPM LK5 25ML/MN
100 RPM 80 525ML/MN
Keypad locked
Keypad unlocked
(2+ sec)
All keys except for pumping
and stop button
(2+ sec)

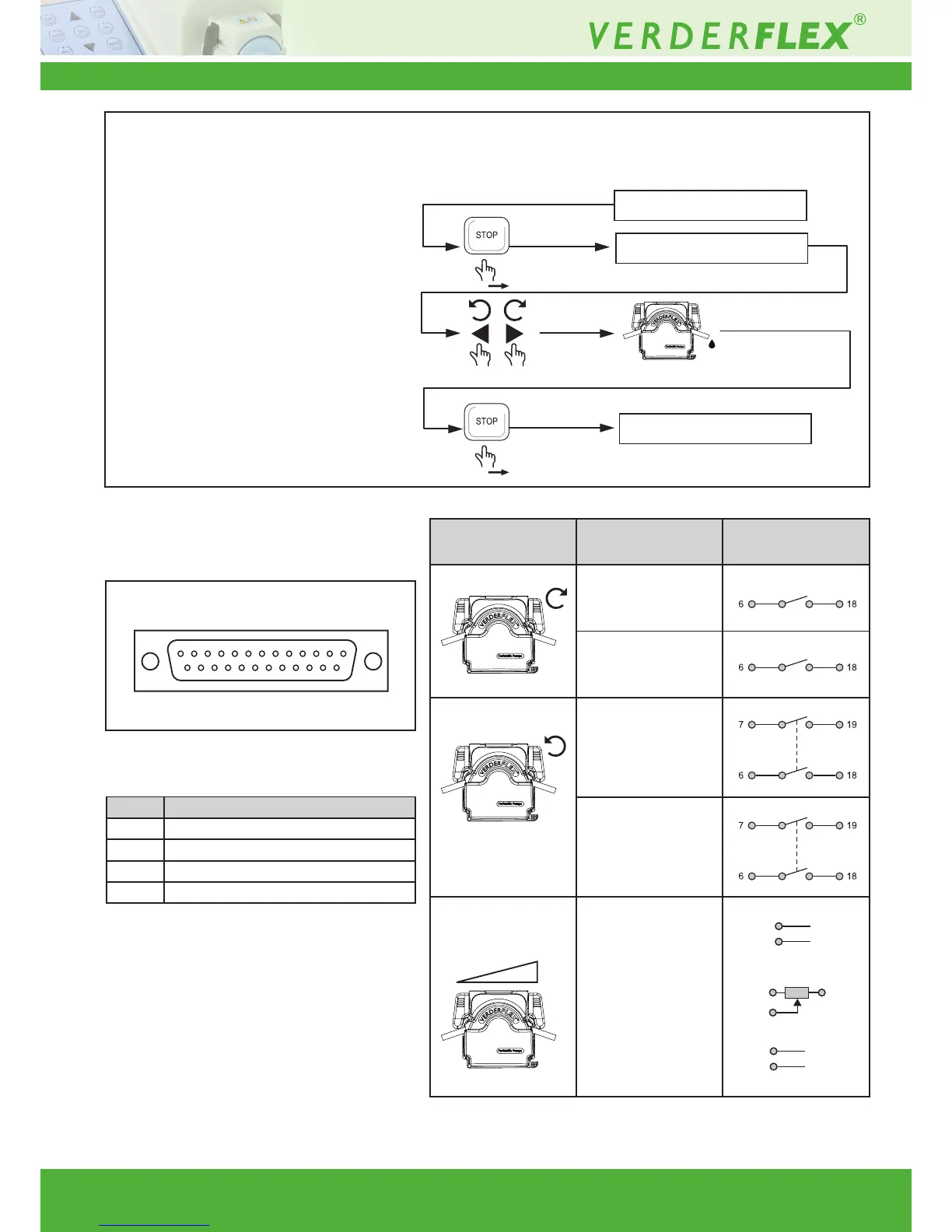

8.17 Analogue /Digital
Remote Interface
Figure 2 25 Way ‘D’ Type Connector (Remote
Control Lead P/N: AU E1973
PIN Function
14 pump running +5V out
15 pump stopped +5V out
21 pump running GND
22 pump stopped GND
Function Connection
Clockwise Started CW
Stopped CW
Counter Clockwise Started CCW
Stopped CCW
IP 66 Remote
speed control
Speed control
0-10V d.c
RPM
13
25
01
14
13 +V
25 GND
10
11
23
10K (0.5W)
12 +V
24 GND
Table 10 Analogue /Digital Remote Interface
8.16 Keypad Lock Function
