7.1 Types of Pump Head
Verderex
®
Vantage 3000 P pumps are available with the S10 pump head featured on the Verderex Smart tube pump,
as well as the R3i head featured on the Verderex Rapide tube pump providing greater ow rates with stackable
and multi channel head options.
7.2 EZ Head
7.2.1 Key Features
Easy tube change system, stackable multi
head options with Verderprene, Silicone,
Viton
®
or Tygon
®
tubing.
• Flow rates up to 1,310 ml/min
(20.8 US GPH)
• Pressures up to 2 Bar (29 PSI)
• Typically used in frequent tube change
applications
7.2.2 Installing the Tube
1. Flip the lugs on both sides of the pump head
to lift the top section
2. Once the head is lifted as shown in gure,
insert the tube over the rollers.
3. Flip the lugs on both sides of the pump head
to lock the top section down.
- Adjust the tube clamp to hold the tube
in place and avoid slip
- Adjust the tube clamp on both sides
of the pump head to the tube diameter.
- If a tube slip is observed, tighten the
tension on the clamps
- Alternately, if a reduced ow is observed,
reduce the clamp tension.
Table 4 Installing the Tube

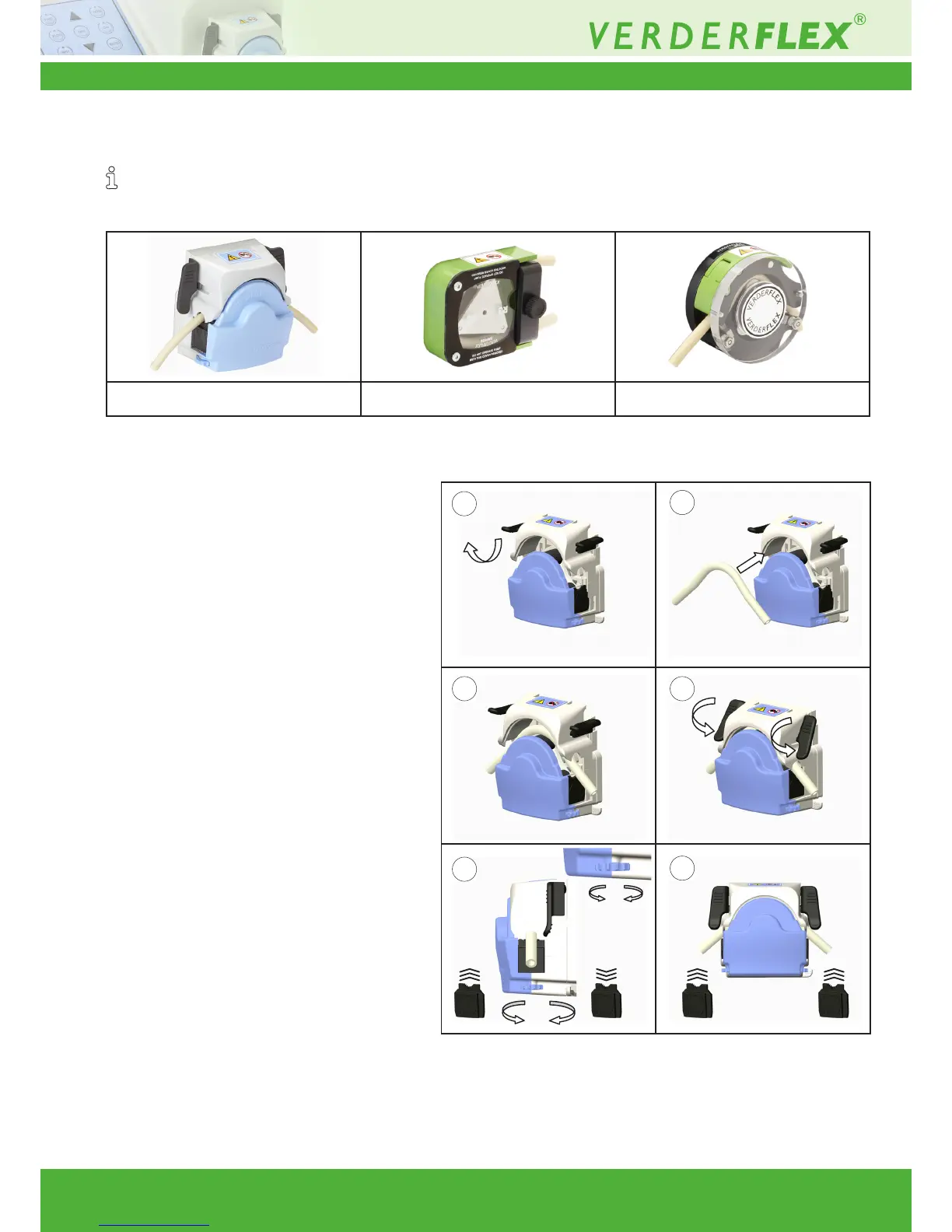

Table 3 Vantage 3000 P Pump Head Options
1
1. EZ Head 2. R3i Head 3. S10 Head
