14 MX 800 SERIES INSTALLATION GUIDE
4 Remove any previously installed MSAM card by sliding the card from the
MSAM cardholder.

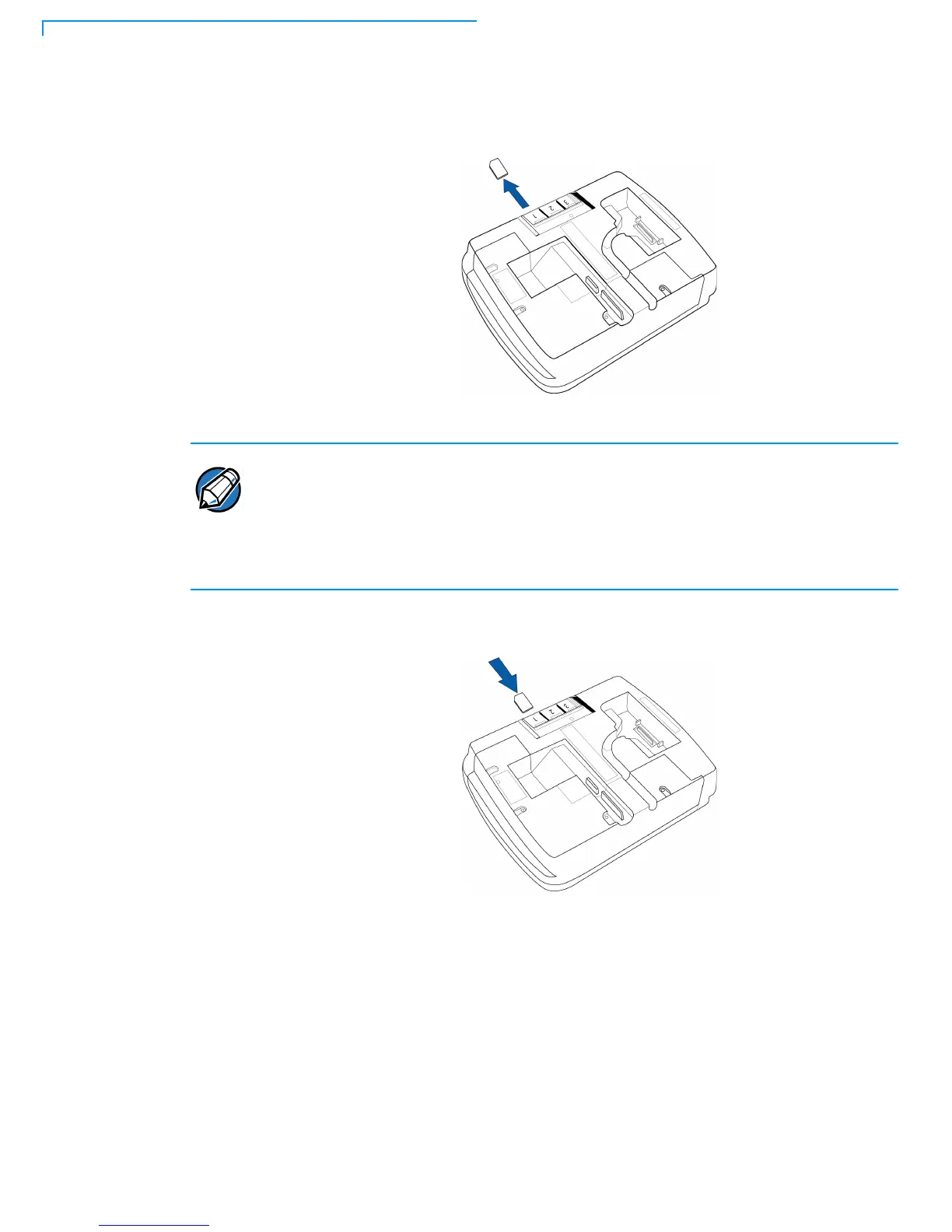

Figure 8 Removing Installed MSAM Card
5 Install an MSAM card by aligning the card and carefully sliding it within the
guides on the cover until it is fully inserted.
Figure 9 Inserting the MSAM Card
Before inserting the MSAM card, position it with the card’s gold contacts facing the
smart card reader end of the terminal. The cardholder connector base has a set of
contacts and a notch on one corner to ensure the MSAM card is positioned
correctly. The MSAM card has a notch on one corner to ensure that it fits into the
connector base in only one way. The MSAM compartment door will not close
properly if the MSAM cards are installed incorrectly.
