2 Slide the module into place (Figure 6) and secure the retaining screw.

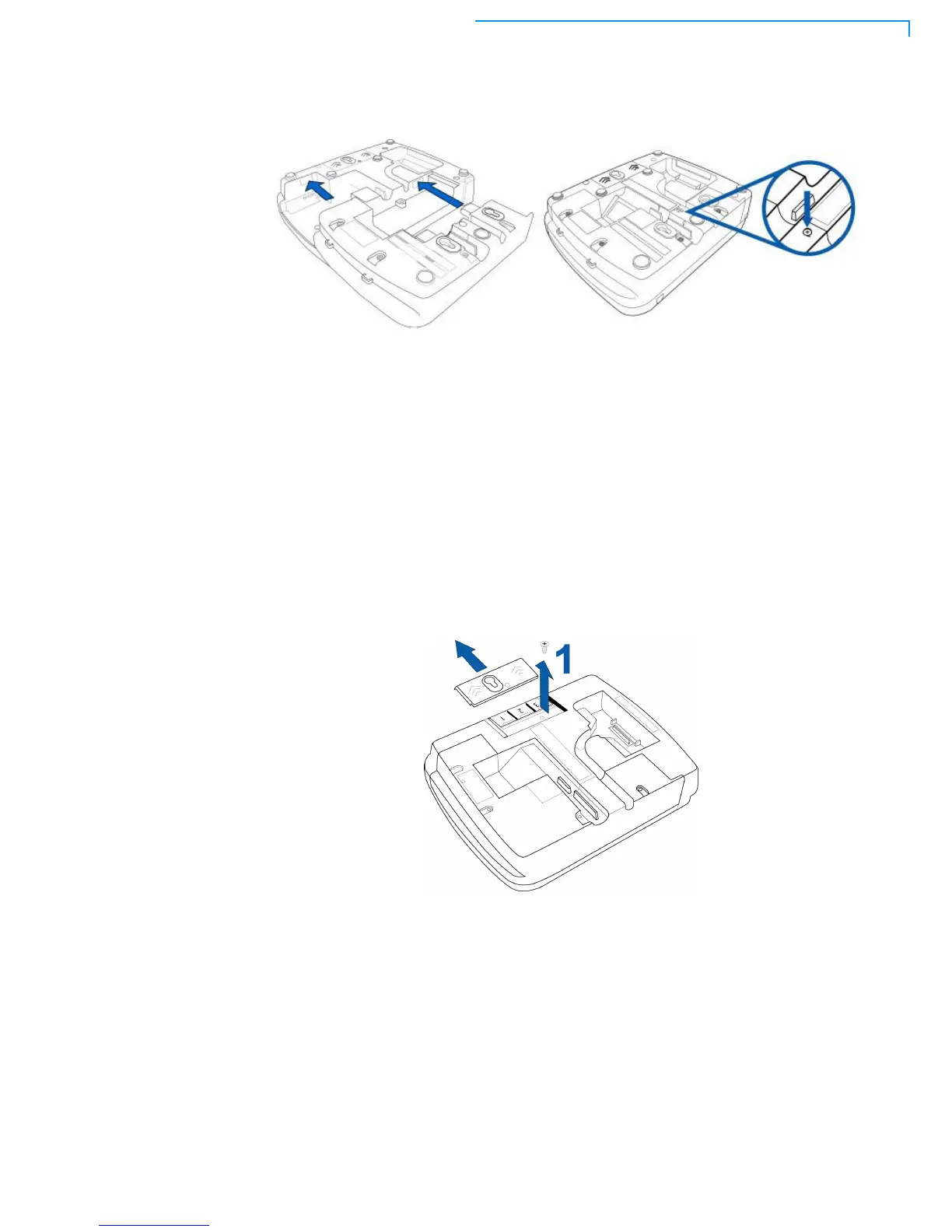

Figure 6 Installing the Module
Installing MSAM
Cards
Follow the steps below to install smart cards (MSAM cards).
Often merchants are issued MSAM cards to run small applications, such as loyalty
programs. MSAM cards are used only with MX 800 Series terminal smart card
configurations.
1 Unplug the power pack from the multiport cable.
2 Place the terminal upside down on a soft, clean surface to protect the lens
from scratches.
3 Remove the MSAM compartment door screw and rotate the door up and
back to access the MSAM cardholders.
Figure 7 Removing the MSAM Compartment Screw and Door
