The tables in this appendix list pinouts for the P200 and P400 PINpad, dongles,
and cable connectors.

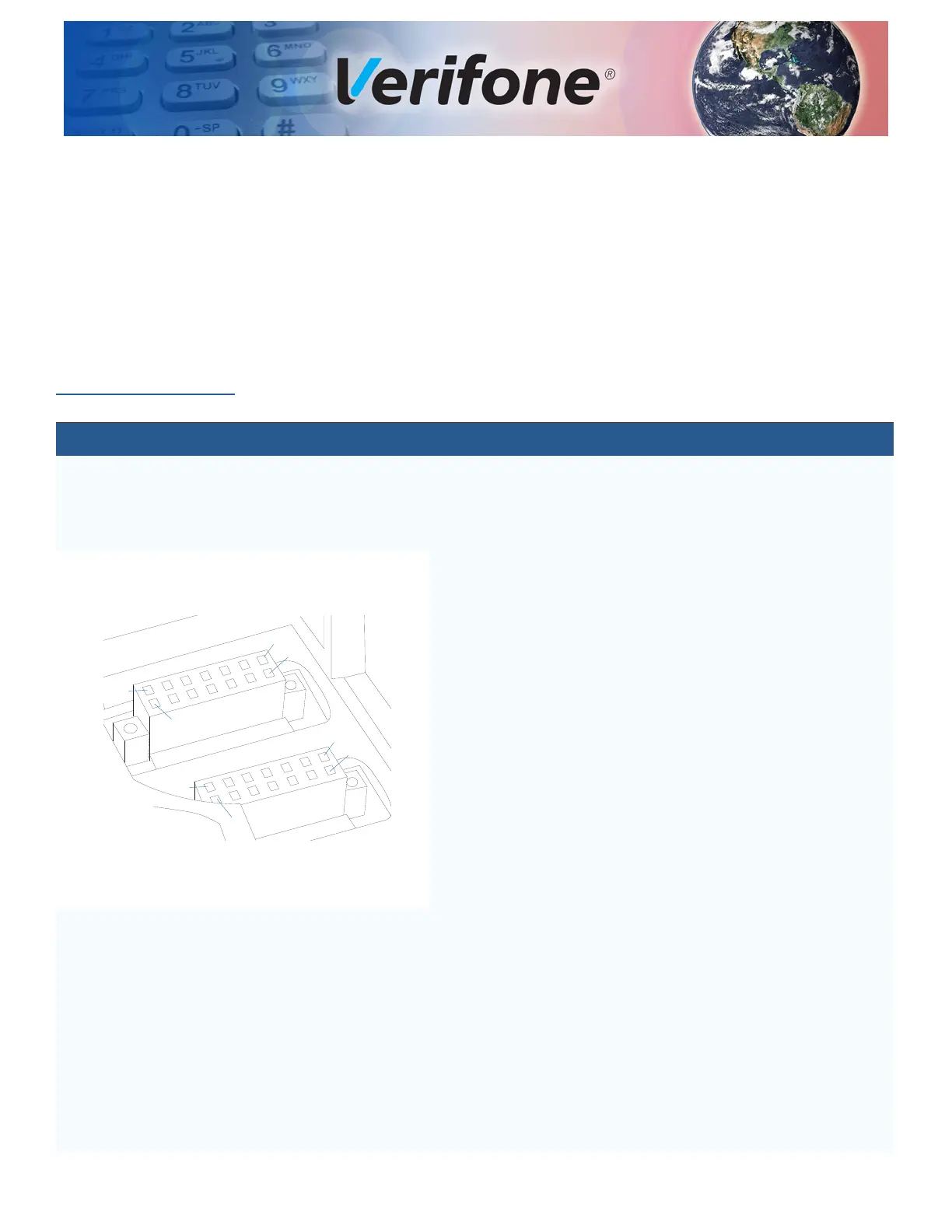

Multi I/O
Connection Port
Connector Pin Function Description
Connector P461
1 EXTGND Cable Shield Ground
2 ETH_TXP Ethernet Transmit data +
3 ETH_TXN Ethernet Transmit data -
4 EXTGND Cable Shield Ground
5 ETH_RXP Ethernet Receive data +
6 ETH_RXN Ethernet Receive data -
7 SGND Signal Ground
8 N.C. No connection
9 N.C. No connection
10 SGND Signal Ground
11 RXD_HOST RS-232 Receive data
12 TXD_HOST RS-232 Transmit data
13 CTS_HOST RS-232 Clear to Send
14 RTS_HOST RS-232 REquest to Send
Connector P460
1 EXTGND Cable Shield Ground
2 USB_DEVICE- USB Device Signal -
3 USB_DEVICE+ USB Device Signal +
4 SGND Signal ground
5 RXD_HOST RS-232 Receive data
6 TXD_HOST RS-232 Transmit data
7 SGND Signal Ground
8 USB_HOST- USB Host -
9 USB_HOST+ USB Host +
10 SGND Signal Ground
11 EXTPWR External Power
12 EXTPWR External Power
1
2
13
14
2
13
14
1
Connector P461
Connector P460
