VeriFone V205c - Rear Compartments

OVERVIEW
V205c Terminal
10 V205C INSTALLATION GUIDE
Rear Compartments
After removing the rear covers, the underside of the V205c shows the following:

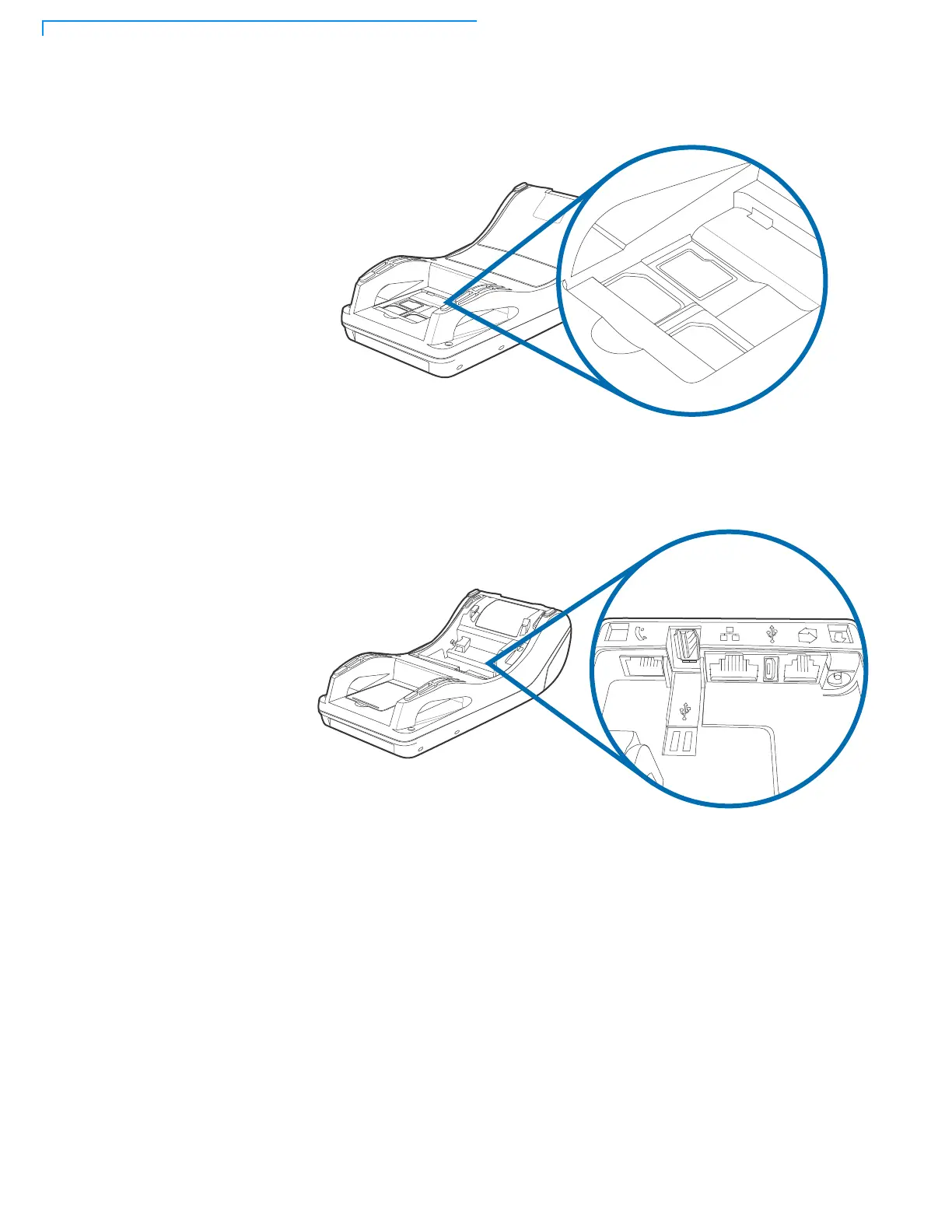

Figure 2 V205c Card Compartment View
• Dual MSAM slots
• Micro SD Card slot
Figure 3 V205c Port Compartment View
• Ethernet port
• RJ9 port
• RJ11 port
• USB Host/Client port
• Micro-USB port
• Power port
