SETUP
Connecting Power Supply
V205
C INSTALLATION GUIDE 21
Connecting ECRs to
the V205c
The V205c supports electronic cash registers (ECRs).
The following illustration shows how to make a peripheral connection to the ECR
via
RJ9 to DB9 port cable (VPN CBL000-051-02-A)

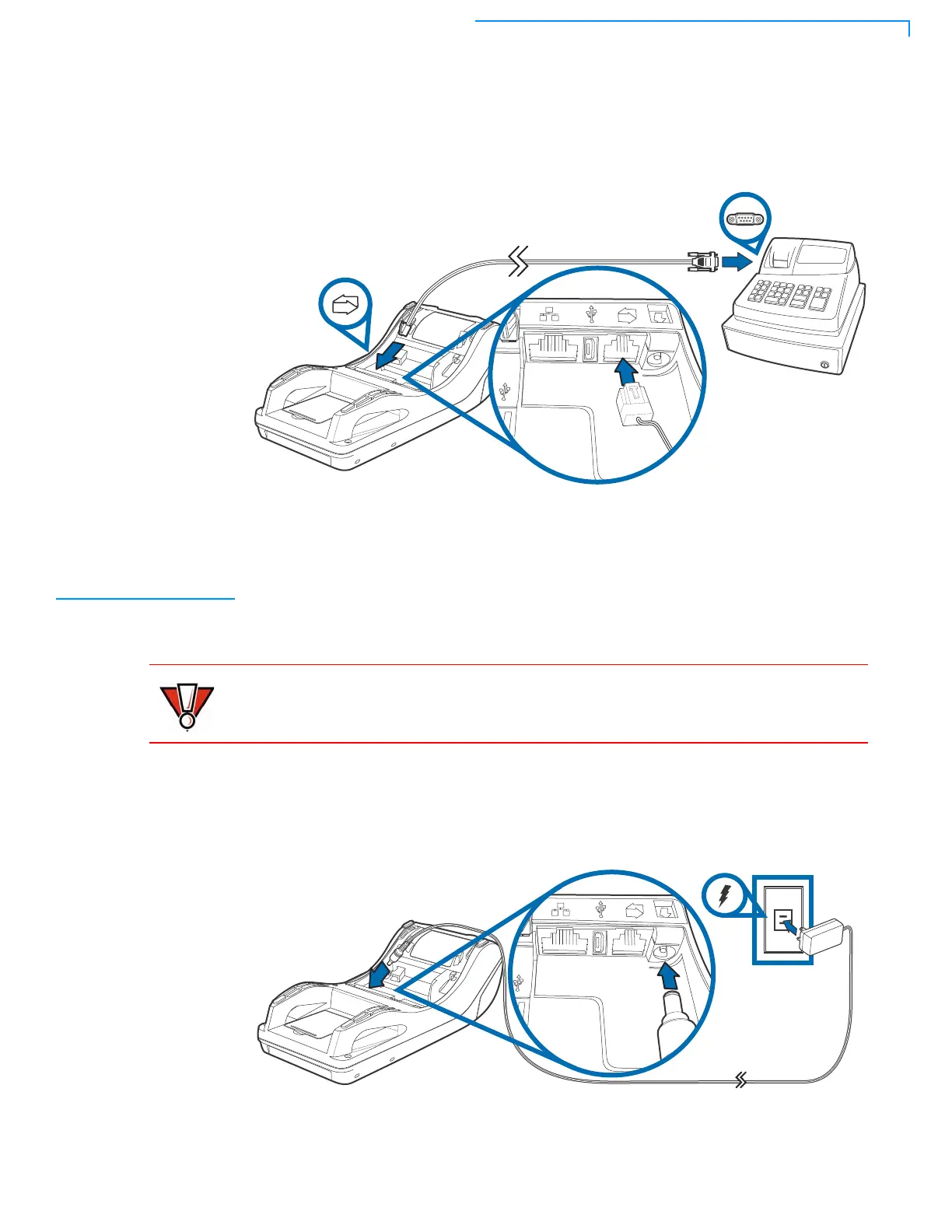

Figure 12 Sample ECR Connection
Connecting
Power Supply
Not all configurations and device contexts require the use of a power supply –
Verifone ships the power supply unit with the terminal as required.
Contact your Verifone representative If you have changed the context in which the
terminal is used or have questions about which power supply should be used.
Disconnect the power pack cord from the power outlet before connecting a power
supply. Connect and route all cables between the terminal, ECR, and PC before
plugging the power pack cord into a wall outlet or surge protector.
Using an incorrectly rated power supply can damage the unit or cause it not to
work properly. Use only a power pack with VPN PWR
470-001-01-A (see Service
and Support for detailed power supply specifications).
