SETUP
Connecting Optional Devices
20 V205C INSTALLATION GUIDE
Different terminals support different devices, so for more information about
optional devices, please contact your Verifone distributor.
Optional Device
Connections
You can connect several devices to your V205c. You can use the following cables
for different types of device connections:
• RJ9 to DB9 cable (VPN CBL000-051-02-A)
• Multi-port coiled cable (VPN CBL470-006-02-A)
Contact your Verifone representative or visit the online store at
www.store.verifone.com for information on these devices.
Connecting the
V205c to a PC

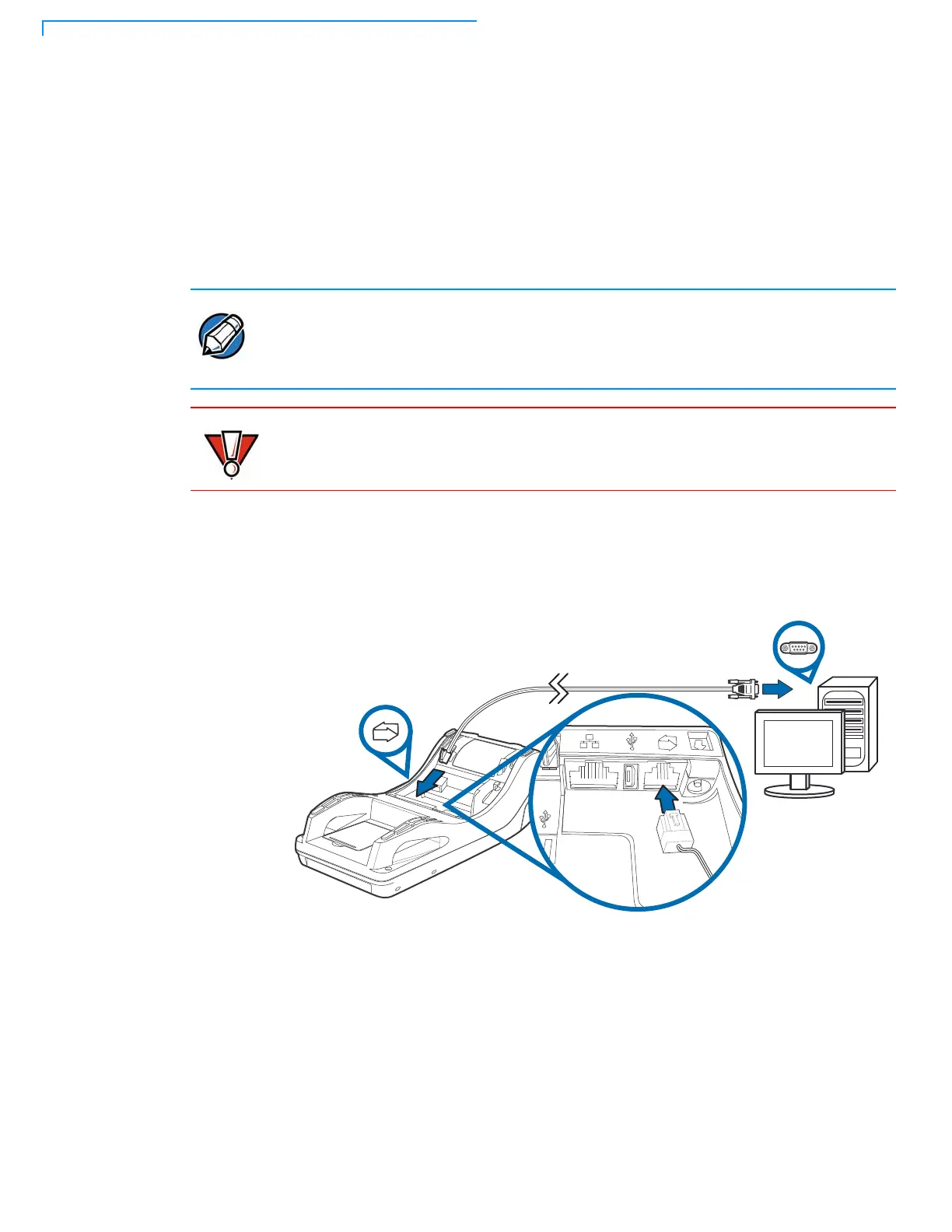

The following illustration shows how to connect the V205c to a computer via the
RJ9 to DB9 port cable (VPN CBL000-051-02-A).
Figure 11 Sample PC Connection
Make sure you replace the rear cover when all cables are installed. This provides
some protection to the cables and connectors. Do not carry the terminal by the
installed cables or pull the terminal about the by the cables. This may cause a
cable to be removed or damage the cables.
Some devices (ECRs and some PIN pads) require a separate power source.
Before connecting to any device, remove the power cord from the V205c unit.
