VeriFone VX 685 - Undocking the Terminal; Creating Dial-Up;Ethernet Connections

SETUP
Base Stations
26 VX 685/VX 690 INSTALLATION GUIDE
V
E
R
I
F
O
N
E
C
O
N
F
I
D
E
N
T
IA
L
R
E
V
I
S
I
O
N
B
.
1
Undocking the
Terminal
The terminal can be taken from the base when in use. Gently lift the terminal from
the base.

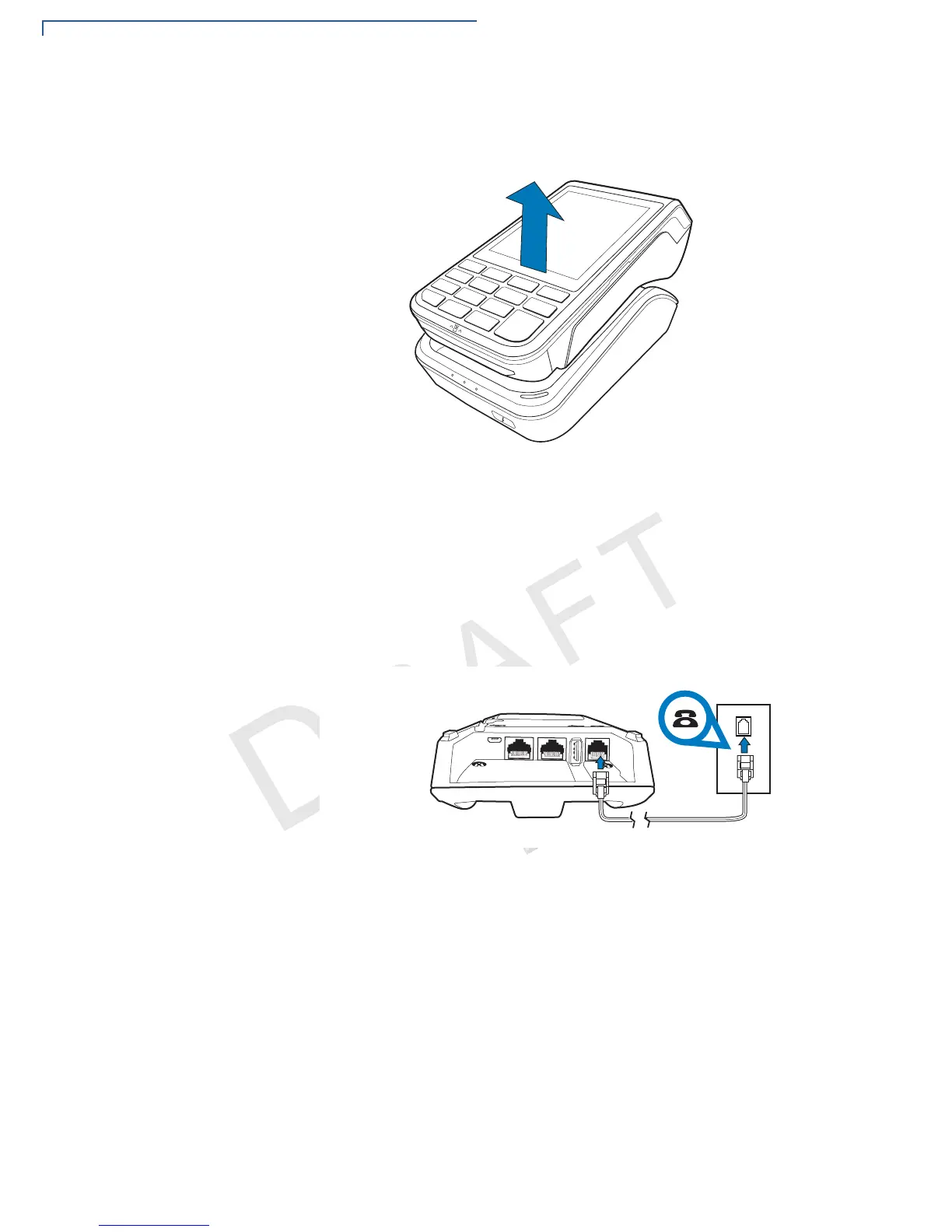

Figure 15 Undocking the Terminal from the Base
Creating Dial-up/
Ethernet
Connections
The terminal allows for dial-up and Ethernet connections for full back-up
connectivity.
To Create a Dial-Up
Connection
1 Connect the telephone cable to the communication port on the base.
2 Route the other end of the cable directly to a telephone wall jack. This is a
direct connection and the line is dedicated to the terminal.
Figure 16 Direct Telephone Connection
To Create an Ethernet
Connection
1 Connect the Ethernet cable to the port on the base.
#/-
