Sivu
10(36)
28.9.2016

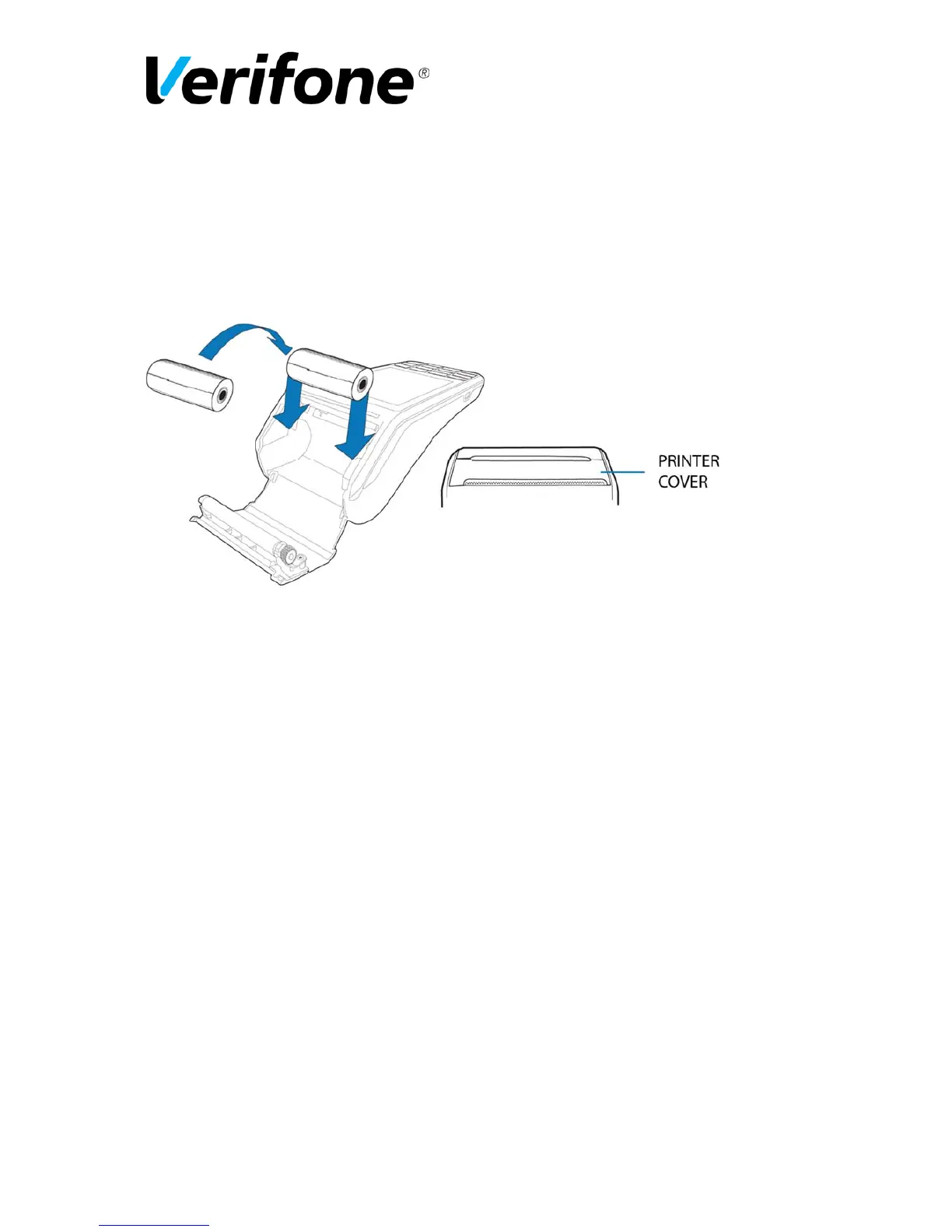

1.11 Replacing paper roll
1. Pull the cover of the paper tray.
2 Gently lift the printer cover up and back.
3 Remove any partial roll of paper in the printer tray.
4 Hold the roll so the paper feeds from the bottom of the roll when the terminal is inverted.
5. Close the cover.
1.12 Testing the connection
The upper right corner of the display shows the strength of the connection. The signal can be refreshed
by pressing keys # and 6 on the main display.
NOTE! If the signal bars are grey, the connection is missing. In these cases restart your terminal and
test the connection again. If the problem is repeated, contact your connection provider about the
problem.
From the main display, select the Reports menu by pressing its icon. After this, press enter and select
SEND BATCH. The screen informs DIALING. If the terminal successfully connects, the text
CONNECTED appears on screen. A white bar and the text RECEIVING are displayed on screen. The
bar turns gradually black as the batch sending progresses. The terminal downloads the blacklist and
other required card information files from the bank.
After this, the terminal is ready for use.
