VERITAS NetBackup 5240 Appliance Product Description

Table 2-6
Veritas 2U12 49TB Storage Shelf I/O module components
DescriptionNumber
I/O module 01
I/O module 12
I/O module Status LEDs
See “I/O module Status LED location and conditions” on page 41.
3
SAS-3 ports - A, B, and C4
Ethernet port (debugging purposes only)5
RS232 jack (debugging purposes only)6
SAS Activity LEDs
See “I/O module SAS Activity LED location and conditions” on page 42.
7
I/O module Status LED location and conditions
This section discusses the location of the Status LEDs on the I/O module and the
Status LED conditions.

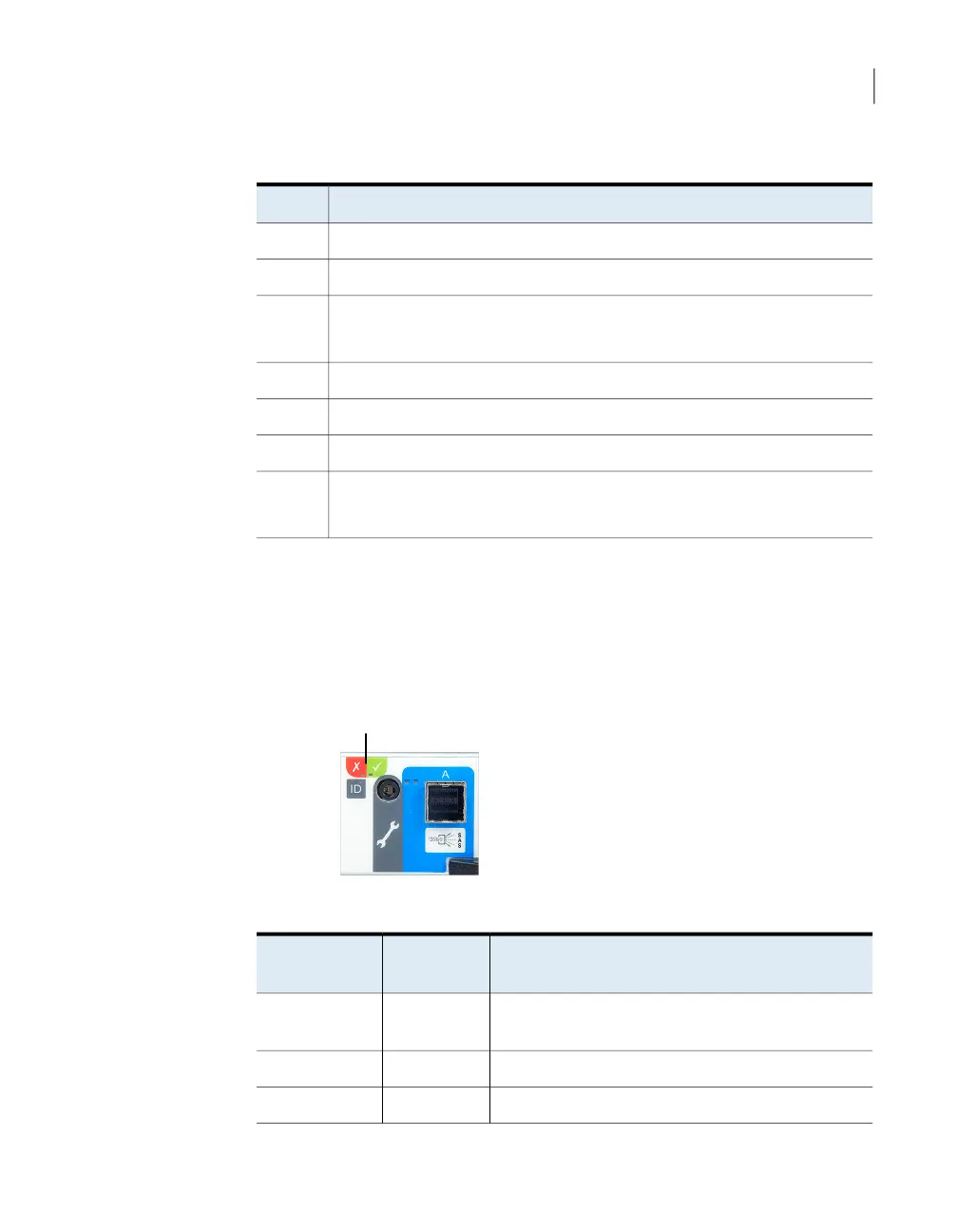

Figure 2-7
I/O module Status indicator LED location
I/O module Status LED location
Table 2-7
I/O module Status LED conditions
Fault LED (amber)Activity
LED (green)
Condition
The I/O module has encountered a fault condition.OnModule Fault
(amber)
The I/O module is operating normally.Off
The I/O module is on.OnPower (green)
41About the Veritas 2U12 49TB Storage Shelf
Veritas 2U12 49TB Storage Shelf rear components
