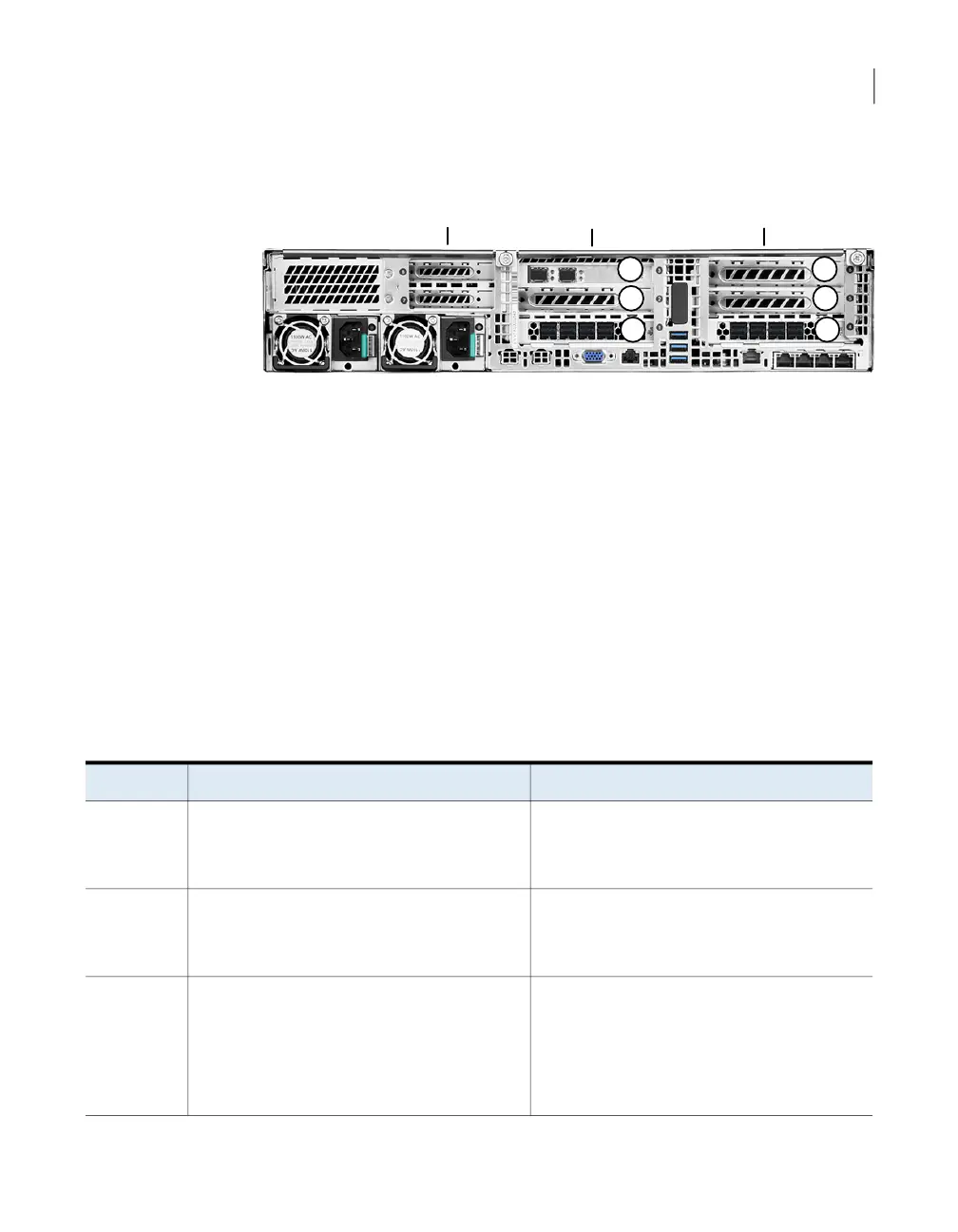

Figure 1-4
5340 Appliance rear panel riser assembly locations
PCIe
riser assembly 3
PCIe
riser assembly 2
PCIe
riser assembly 1
1
2
3
4
5
6
About Fibre Transport paths for NetBackup
appliances
Table 1-11 shows the backup, restore, and duplication paths for NetBackup Fibre
Transport (FT) for NetBackup appliances. It also shows the FT settings from the
NetBackup Appliance Web Console that enable a functionality.
FT requires the following appliance software versions:
■ NetBackup 5330 appliance versions 2.6.1 and later are compatible with
NetBackup 50xx deduplication appliance versions 1.4.2 and later.
■ NetBackup 52xx and 53xx appliances must use software version 2.7.3 and later
on both the source host and the target host to duplicate data.
Table 1-11
Appliance Fibre Transport targets
ToFromFunction
NetBackup 52xx or 53xx appliance.
The appliance is the backup server and the storage
host.
NetBackup SAN client.Backups
NetBackup SAN client.NetBackup 52xx or 53xx appliance.
The appliance is the restore server and the storage
host.
Restores
NetBackup 5020 deduplication appliance.
The 5020 deduplication appliance is the storage
host.
The 52xx or 53xx appliance is the backup server
and forwards the backups to the 5020 appliance.
NetBackup SAN client.Backups
27Introducing Fibre Channel support on NetBackup Appliance
