Supported Fibre Channel port configurations for
the NetBackup 5220 and 5230 appliances
Note: Before you start configuring a particular FC feature on the appliance, make
sure that it is supported with your appliance HBA configuration.
See “About Fibre Channel feature support with appliance HBA configurations”
on page 14.
NetBackup 5220 FC HBA slots and ports
The NetBackup 5220 Appliance can be preinstalled with up to three PCIe 8 Gb
Fibre Channel HBA cards.
On a NetBackup 5220, slots 2 - 4 support FC.

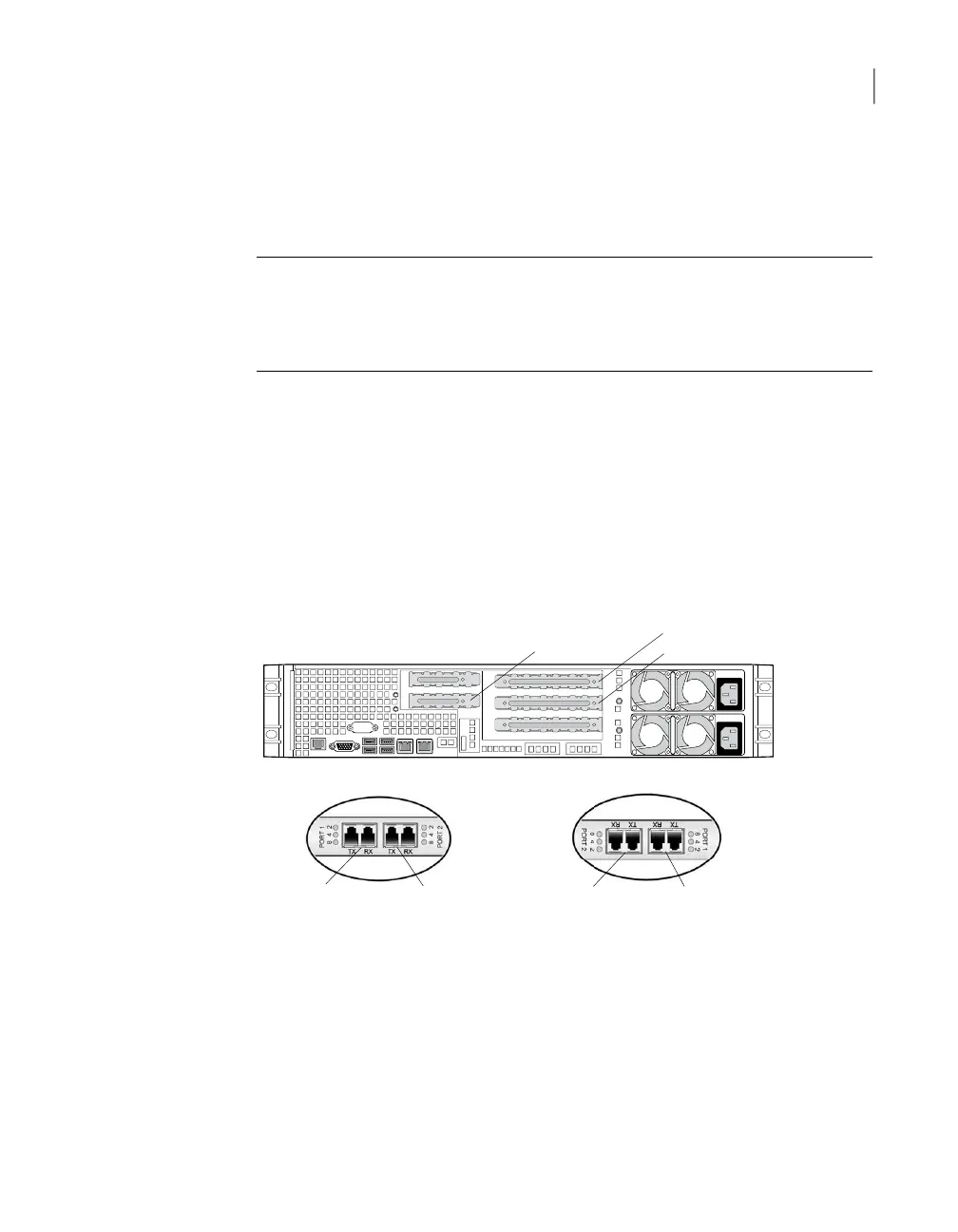

Figure 2-1 describes the supported FC HBA slot locations and the port order for
the installed FC HBA cards.
Figure 2-1
NetBackup 5220 FC HBA slots and ports
F
Slot 2 (FC HBA)
Slot 3 (FC HBA)
Slot 4 (FC HBA)
Slot 2 port order Slots 3 and 4 port order
Port 1 (left) Port 2 (right)
Port 2 (left) Port 1 (right)
NetBackup 5220
For the slot location of the NetBackup 5220 appliance HBA configurations, see the
NetBackup 5220 Appliance Product Guide.
NetBackup 5230 FC HBA slots and ports
The NetBackup 5230 Appliance can be preinstalled with up to five PCIe 8 Gb Fibre
Channel HBA cards.
On a NetBackup 5230, slots 2 - 6 support FC.
37About the HBA port mode configuration
Supported Fibre Channel port configurations for the NetBackup 5220 and 5230 appliances
