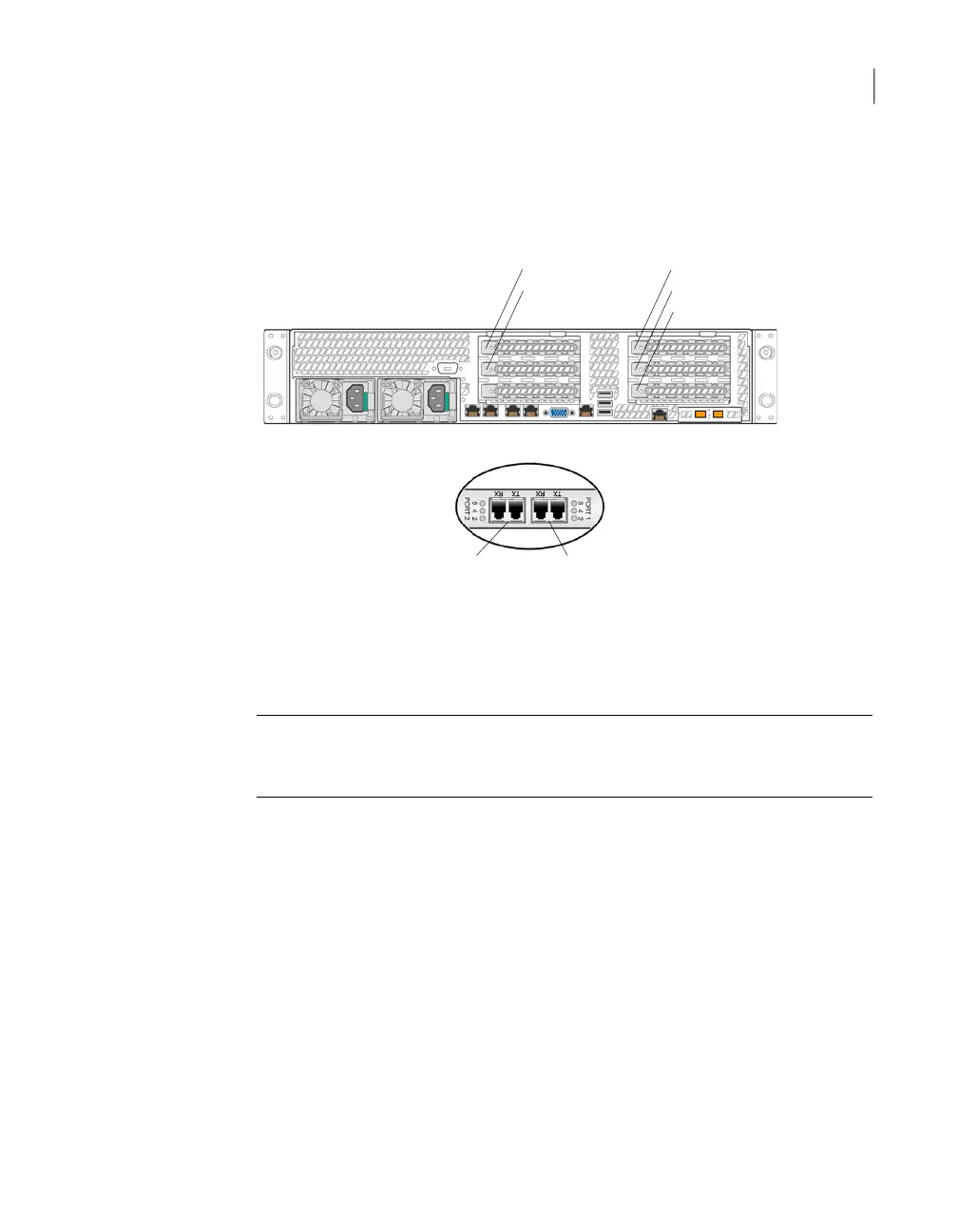

Figure 2-2 describes the supported FC HBA slot locations and the port order for
the installed FC HBA cards.
Figure 2-2
NetBackup 5230 FC HBA slots and ports
NetBackup 5230
Slot 2 (FC HBA)
Slot 3 (FC HBA)
Slot 4 (FC HBA)
Slot 5 (FC HBA)
Slot 6 (FC HBA)
FC HBA port order for all slots
Port 2 (left) Port 1 (right)
See “About the NetBackup 5230 rear panel configurations” on page 18.
Summary of supported NetBackup 5220 and 5230 FC port
options
Note: Veritas does not support reconfiguring the FC HBA cards in the appliance
rear panel. Do not switch cards in different slots or install a used card from another
appliance without contacting Veritas Technical Support.
Table 2-5 provides a summary of the supported NetBackup 5220 and 5230 FC
options for each port.
38About the HBA port mode configuration
Supported Fibre Channel port configurations for the NetBackup 5220 and 5230 appliances
