About LAN client backup and restore paths

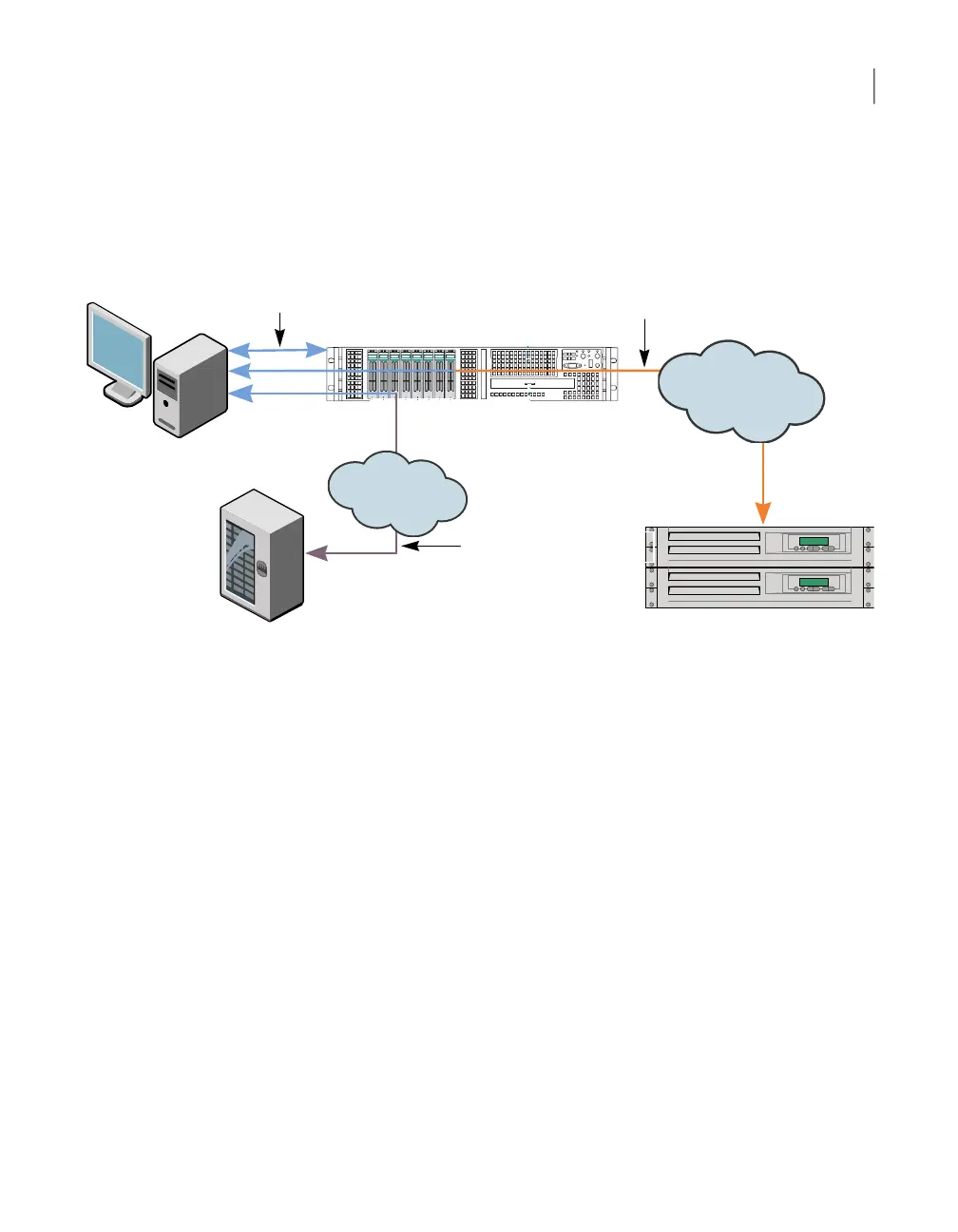

Figure 1-8 shows the possible backup and restore paths for a NetBackup client
over a LAN.
Figure 1-8
LAN client backup and restore paths
Tape library
52xx or 53xx appliance
5020 or 5030 appliance
NetBackup client
Fibre Transport traffic
Ethernet
Fibre Channel
External tape
storage zone
SAN
Fibre Transport
storage zone
The following items describe the paths in Figure 1-8:
■ Ethernet between the client and the 52xx or 53xx appliance. The backups reside
on either deduplicated storage or AdvancedDisk storage on the appliance.
■ Ethernet between the client and the 52xx or 53xx appliance, and then FT between
the 52xx or 53xx appliance and the 50xx deduplication appliance. The backups
are deduplicated and reside on disk storage on the 50xx appliance.
■ Ethernet between the client and the 52xx or 53xx appliance, and then FC
between the appliance and the tape library. The backups are not deduplicated.
See “About Fibre Transport for optimized duplication and Auto Image Replication
between appliances” on page 11.
See “About the SAN Client license key” on page 11.
See “How to determine appliance HBA WWPNs” on page 51.
See “About backup to tape support for NetBackup appliances” on page 78.
