Verizon ASK-MAE340 User Manual

     
3.4 Installing the device

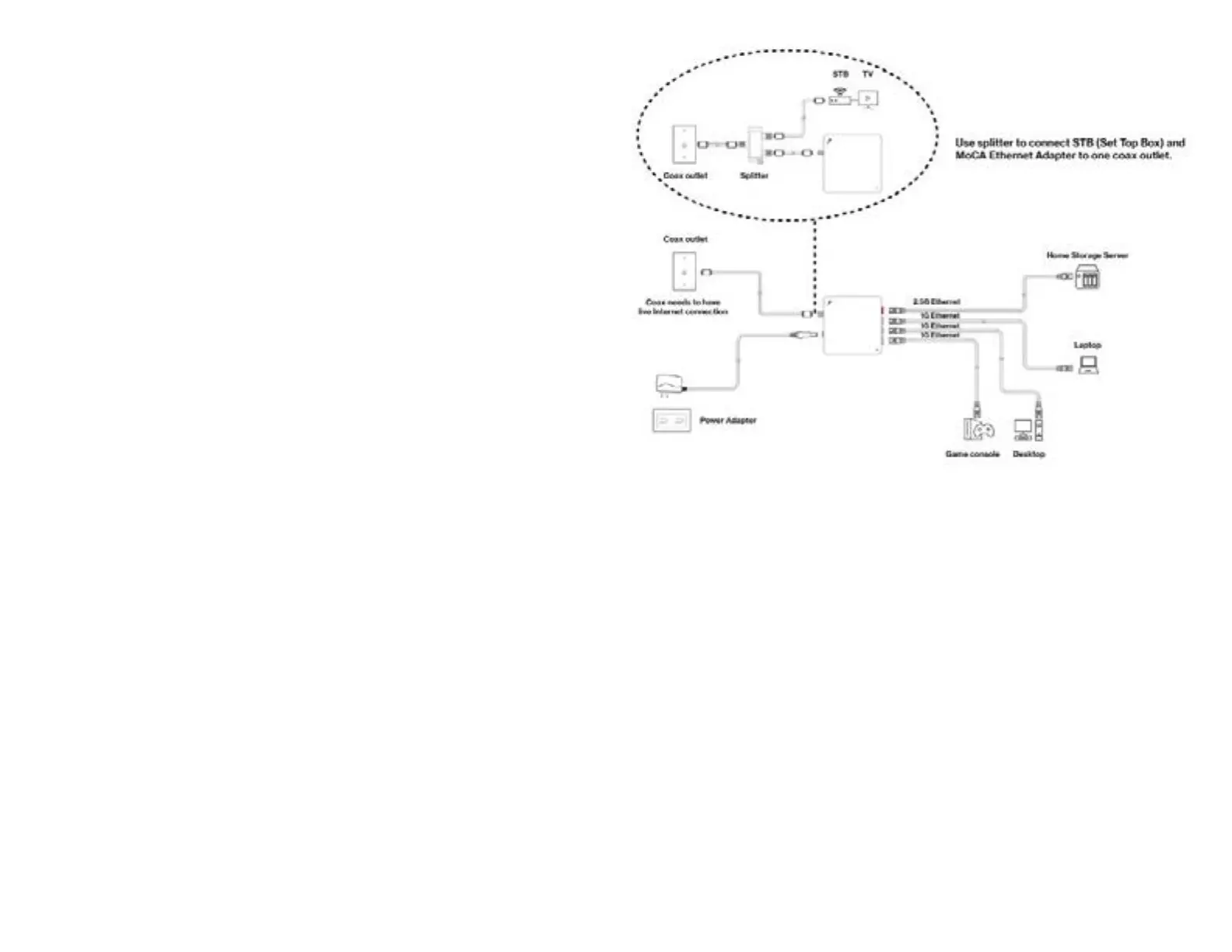

3.4.1 Use the MoCA Ethernet Adapter as a connector
between the coax outlet and your computer.
1. Verify that the MoCA capable router in your home is
connected to a coax outlet at the router location.
2. Connect a coaxial cable from the coax outlet to the “Data”
port on the MoCA Ethernet Adapter. If needed, use the
included RF splitter to add an additional coax connector
from the coax outlet.
3. Connect your laptop, desktop, or game console devices to
the “LAN” ports on the MoCA Ethernet Adapter.
4. Connect the provided Power Adapter to the MoCA
Ethernet Adapter.
5. Wait for the system light to turn solid white. This indicates
that the MoCA Ethernet Adapter has successfully formed
a network with the router.
5

Verizon ASK-MAE340 Specifications

General

General	ASK-MAE340
Certificates	FCC, UL, MoCA 2.5 Certificate
MoCA Standard	MoCA 2.5
Coax in Frequency	Extended D-Band
F-Connector	F-Connector * 1 (for Data)
Ethernet Ports	2.5G RJ-45 * 1 1G RJ-45 * 3
Power Adapter	12V, 1A
Operating Temperature Range	0 – 40 °C
Storage Temperature Range	-20 – 80 °C

Weight and Dimensions

Dimension	107 x 107 x 30.6mm
