4. Congure your MoCA Ethernet Adapter
The MoCA Ethernet adapter works out-of-the-box without
additional settings. If you want to change settings (such
as the IP address), you can congure via the devices
Web User Interface.
4.1 Log in the device’s Web User Interface
Make sure that the MoCA Ethernet adapter is properly
connected to the home network (refer to section 3 on
how to install your MoCA Ethernet Adapter).
1. Find the IP address of the MoCA Ethernet Adapter from
the home router.
2. Open a web browser and enter the MoCA Ethernet
Adapters IP Address in the address bar.

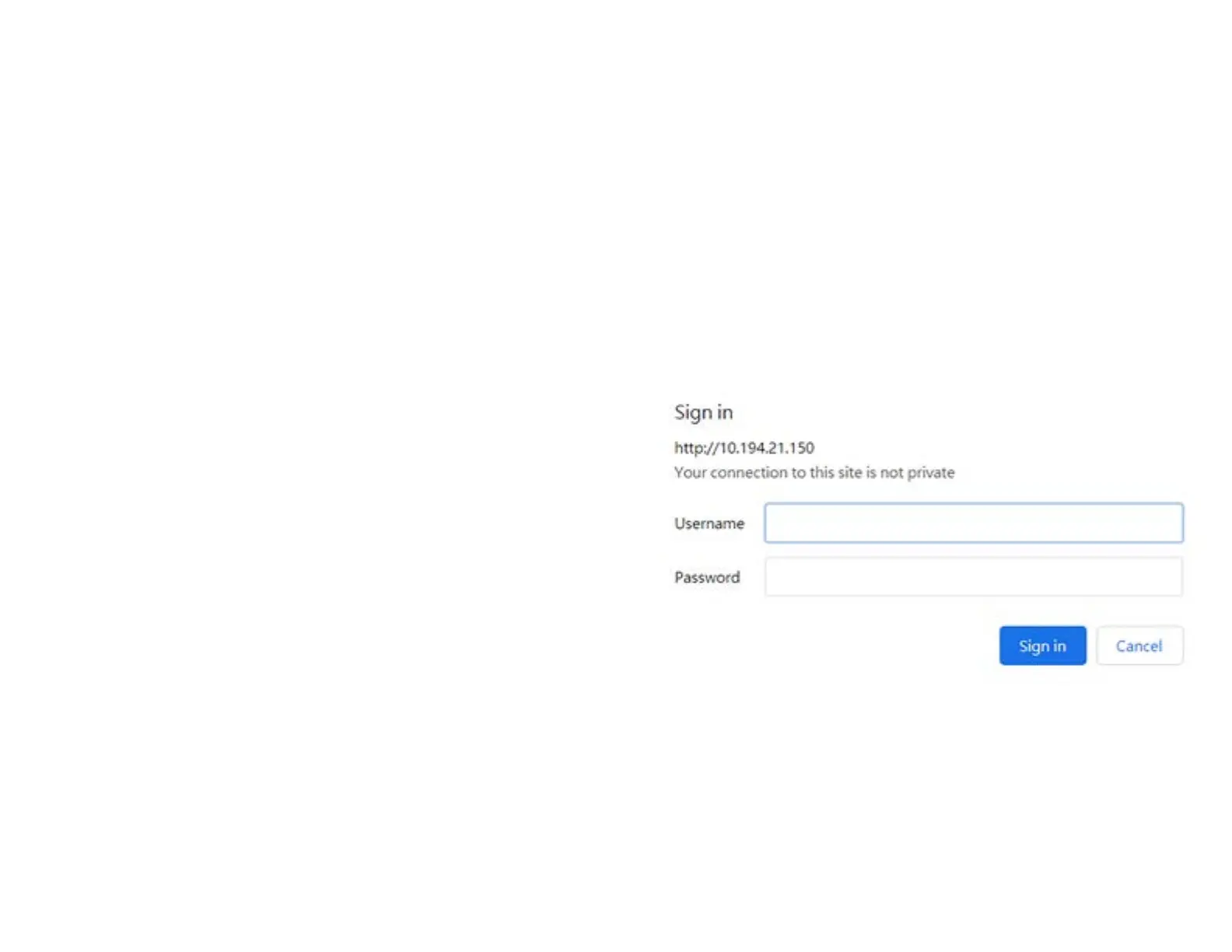

3. The login dialog box is displayed.
4. Enter the username and password.
Username: admin
Password: password can be found by scanning the
QR code on your MoCA Ethernet Adapters product label.
5. You can use the Web UI to view or change the device settings.
7

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Verizon ASK-MAE340 and is the answer not in the manual?

Verizon ASK-MAE340 Specifications

General IconGeneral
GeneralASK-MAE340
CertificatesFCC, UL, MoCA 2.5 Certificate
MoCA StandardMoCA 2.5
Coax in FrequencyExtended D-Band
F-ConnectorF-Connector * 1 (for Data)
Ethernet Ports2.5G RJ-45 * 1 1G RJ-45 * 3
Power Adapter12V, 1A
Operating Temperature Range0 – 40 °C
Storage Temperature Range-20 – 80 °C
Weight and Dimensions IconWeight and Dimensions
Dimension107 x 107 x 30.6mm
