VERSA HERO SERVICE MANUAL
24

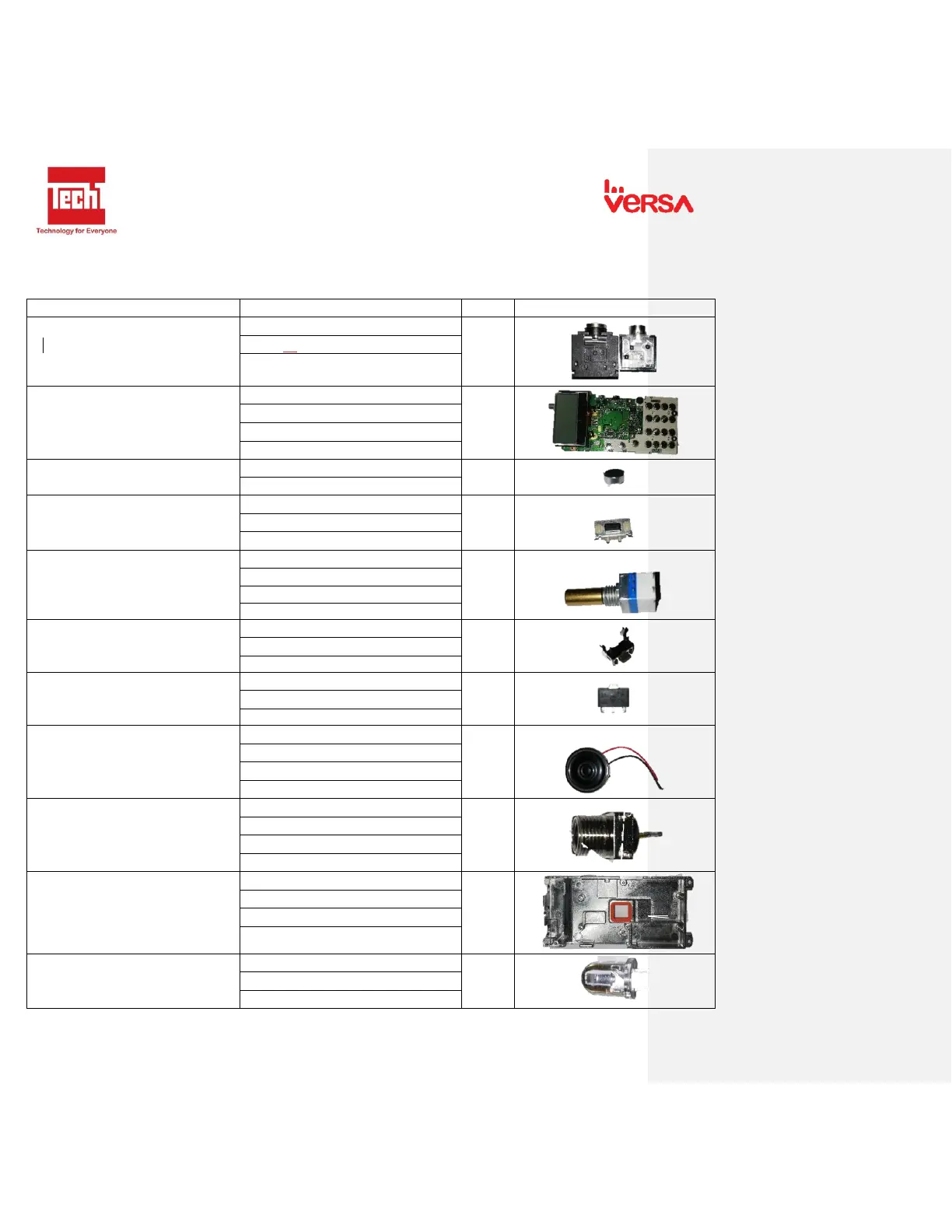

13.2 Internal Parts
- Check the block diagram (page 17 to 18) for your reference.
Versa HERO PARTS:
DEFECTS
LABEL
SAMPLE IMAGE
EARPIECE CONNECTOR
No earpiece input
Loosened Earpiece connector
Intermittent Audio When using
earpiece
MAINBOARD
Humming
DEADSET
Shorted mainboard
Cant Program
MIC CONDENSER
No TX audio
Garble TX audio
MONITOR SWITCH
Hard to press switch
K21,
K22
Degraded switch
Always RX
VOL POTENTIOMETER
No boot up
Scratchy audio when on
Hard to turn volume knob
Loose potentiometer
PTT SWITCH
Hard to press switch
K23
Degraded switch
Always TX
TX Transistor
No TX power
Low TX power
Intermittent TX power
SPEAKER
No RX audio
Garbled Rx audio
Low Audio Rx
Intermittent audio RX
ANTENNA CONNECTOR
Bent Terminal
No round knot
No Transmit Output
Broken output terminal
CHASIS
Damaged battery lock holder
Bent chassis
No ground terminal
Rusty chassis
LED LIGHT
No light indicator
Always blinking
Intermittent light when TX
