Vertex Standard VX-420 Series Service Manual

21

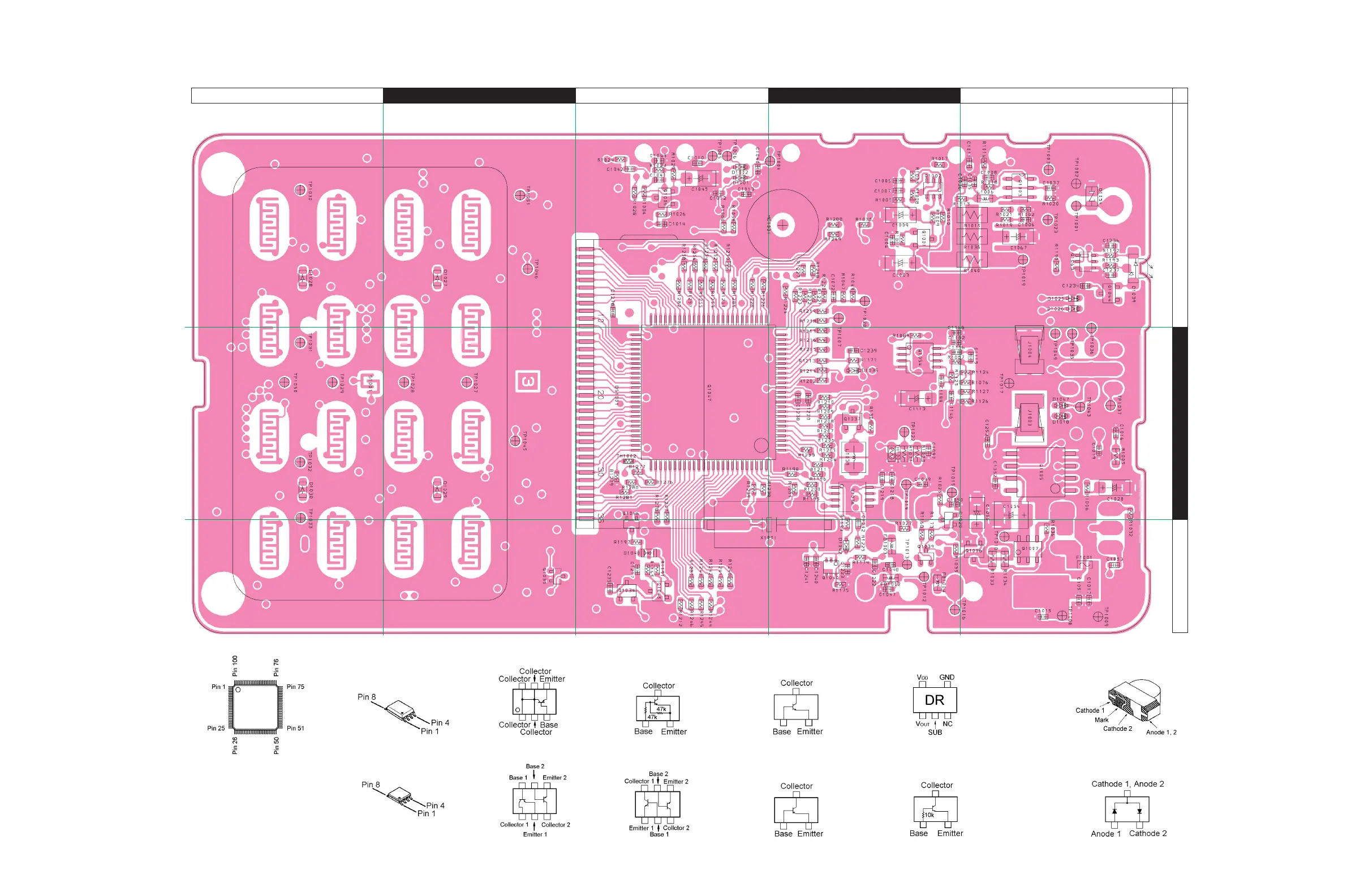

MAIN Unit (Lot. 1~2)
Side A
Parts Layout
DA221 (K)
(D1020)
DTA144EE (16)
(Q1039)
2SC4154E (LE)
(Q1006, 1034,1037,
1044, 1045)
2SA1602A (MF)
(Q1004)
CPH6102 (AB)
(Q1007)
IMZ2 (Z2)
(Q1003)
NJM2070M
(Q1005)
12-22SURSYGC/S530-A2/TR8
(D1039)
DB
C
A
E
1
3
2
DTC114TE (04)
(Q1035, 1046)
NJM12904R
(Q1054)
BR93L56RFVM-WTR
(Q1036)
LC87F74C8A
(Q1047)
BD4835FVE (DR)
(Q1040)
UMX1N (X1)
(Q1002, 1063)
