Vertex Standard VXR-9000 Service Manual

M-2
REG Unit
VXR-9000 UHF Service Manual
PCB with Components (w/o Q3901 & Q3902 REGULATOR IC) CB2565001
C 3901 CHIP TA.CAP. 4.7uF 16V TEESVA1C475M8R K78120031 1-55 A
C 3901 CHIP TA.CAP. 4.7uF 20V TEESVA1D475M8R K78130048 56-62 A
C 3901 AL.ELECTRO.CAP. 4.7uF 35V RC2-35V4R7MD1#-T58 K46160004 63- A
C 3902 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A
C 3903 CHIP TA.CAP. 4.7uF 16V TEESVA1C475M8R K78120031 1- A
C 3904 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A
C 3905 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A
C 3906 CHIP TA.CAP. 4.7uF 16V TEESVA1C475M8R K78120031 1-55 A
C 3906 CHIP TA.CAP. 4.7uF 20V TEESVA1D475M8R K78130048 56- A
C 3907 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A
C 3908 CHIP TA.CAP. 4.7uF 16V TEESVA1C475M8R K78120031 1- A
JP3901 WIRE ASSY AC044N/U T9207048 1- A
Q 3901 IC KIA7809API G1093165 1- B
Q 3902 IC KIA7805API G1093163 1- B

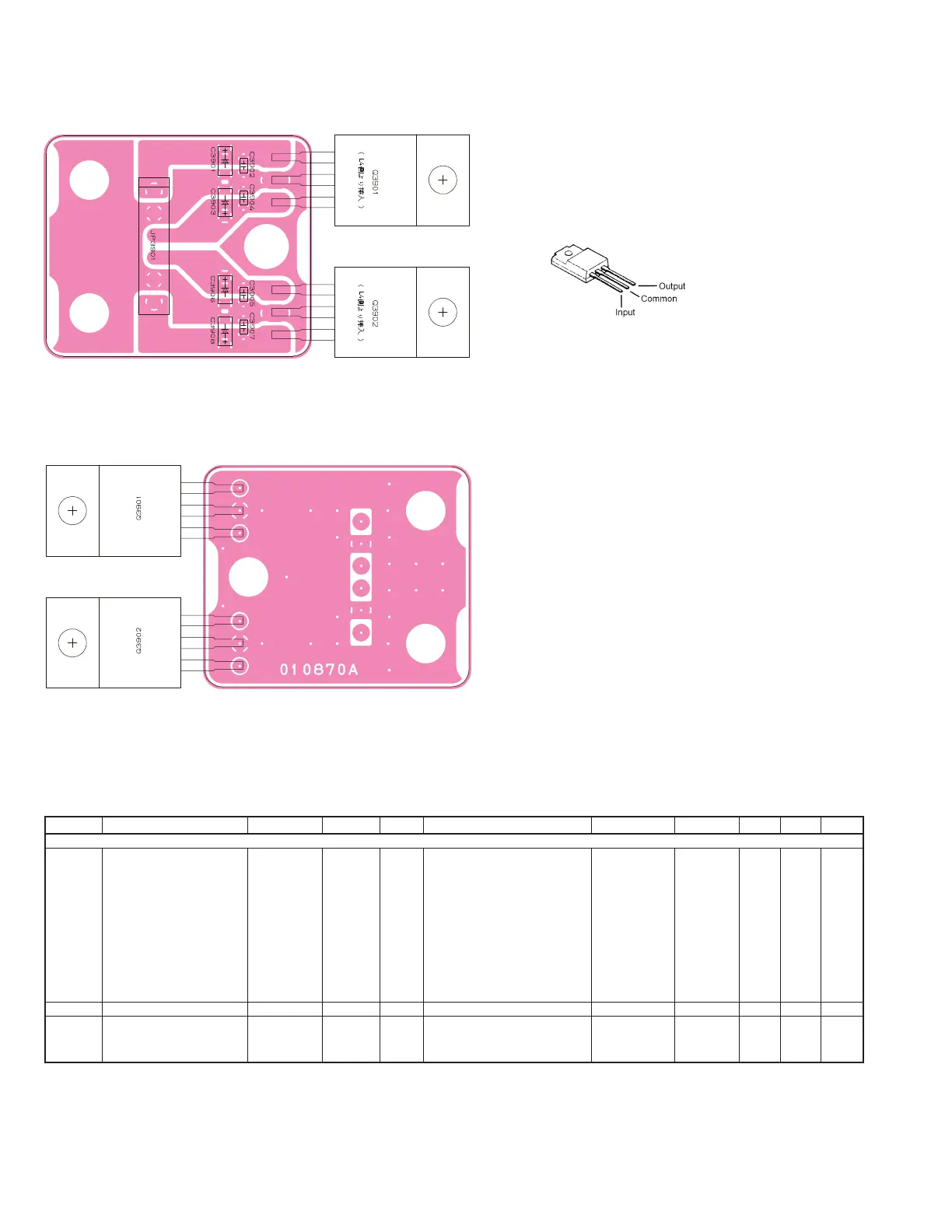

Parts Layout
Side B
Side A
KIA7809API
(Q3901, 3902)
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT SIDE LAY ADR
