Vertex Standard VXR-9000 Service Manual

N-2
SUB Unit (Lot. 1~2)
VXR-9000 UHF Service Manual

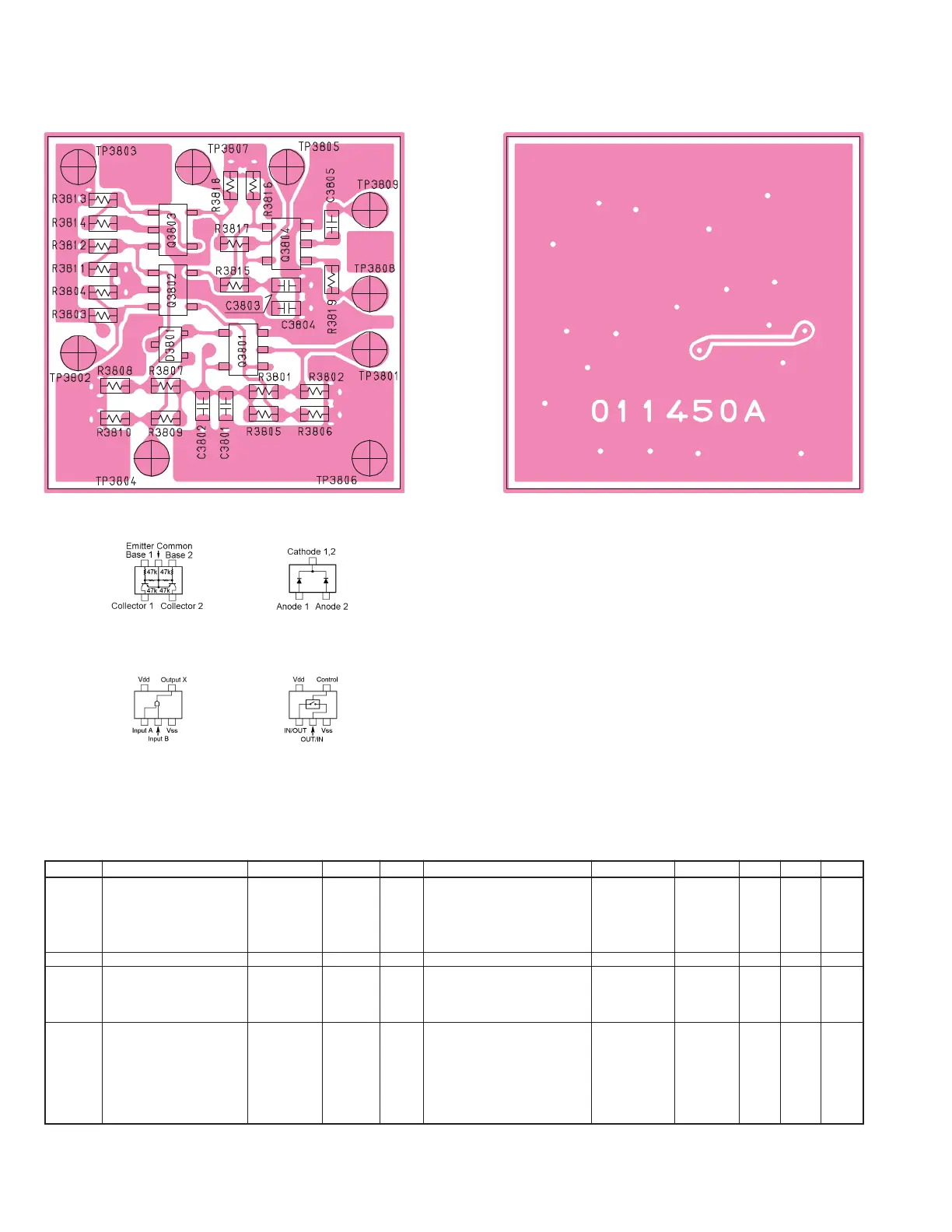

Parts Layout
Side BSide A
TC4S81F (C2)
(Q3801)
Parts List
TC4S66F (C9)
(Q3804)
FMG2 (G2)
(Q3802, 3803)
MC2848 (A6)
(D3801)
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT SIDE LAY ADR
C 3801 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A
C 3802 CHIP CAP. 0.01uF 25V B GRM39B103M25PT K22144802 1- A
C 3803 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A
C 3804 CHIP CAP. 0.01uF 25V B GRM39B103M25PT K22144802 1- A
C 3805 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A
D 3801 DIODE MC2848-T111-1 G2070694 1- A
Q 3801 IC TC4S81F(TE85R.F) G1090895 1- A
Q 3802 TRANSISTOR FMG2 T148 G3070015 1- A
Q 3803 TRANSISTOR FMG2 T148 G3070015 1- A
Q 3804 IC TC4S66F(TE85R.F) G1090893 1- A
R 3805 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A
R 3809 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A
R 3813 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A
R 3815 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A
R 3819 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A
