Vertex Standard VXR-9000 Service Manual

O-3
100W PA Unit (Option: Version D)
VXR-9000 UHF Service Manual

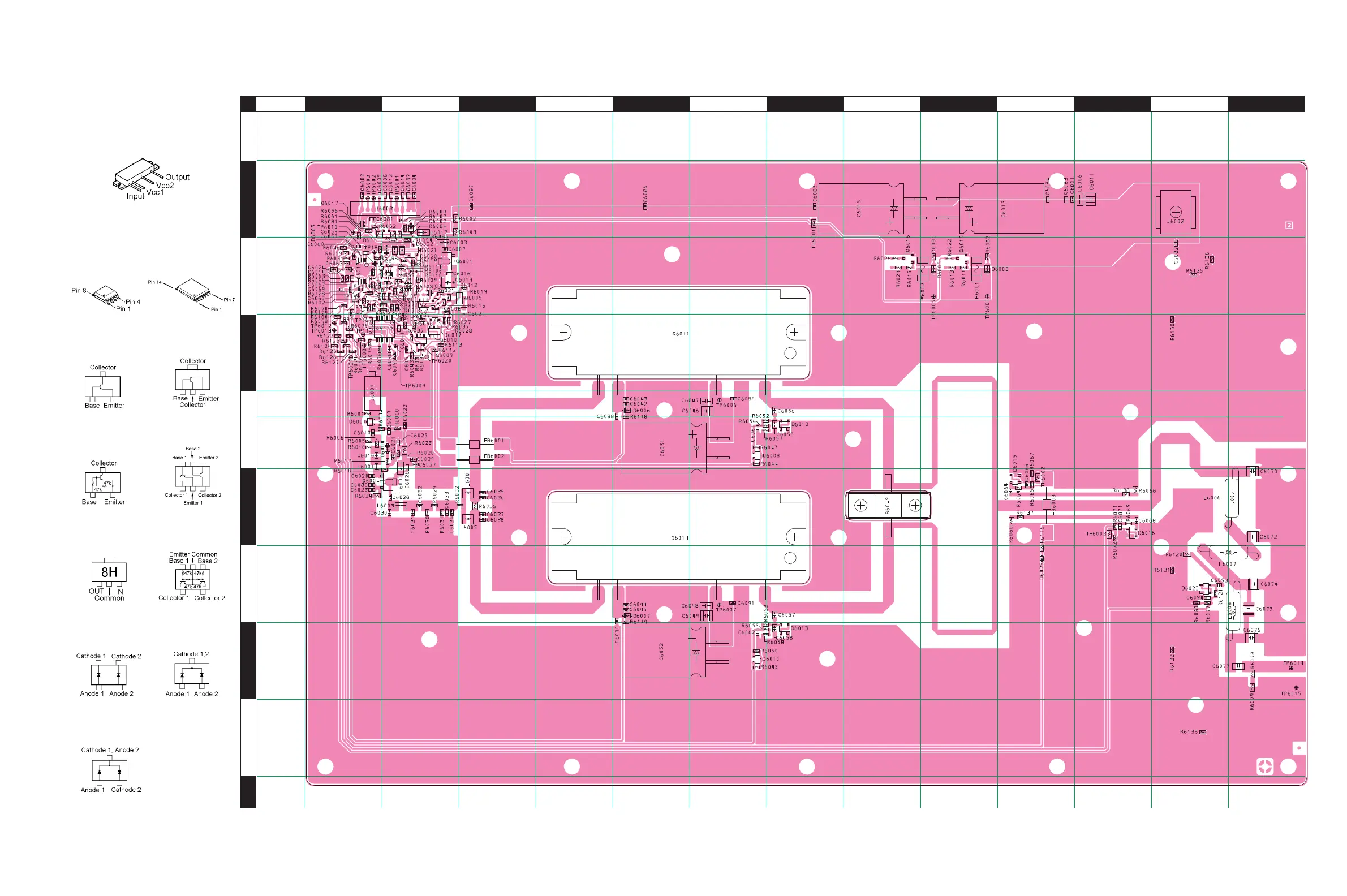

Parts Layout (Side A)
BA DC FE G
1
3
2
4
H
2SA812 (M7)
(Q6005, 6015,
6016)
2SC5415E (EA)
(Q6004)
DTC144EE (26)
(Q6002, 6009,
6010)
FMG2 (G2)
(Q6002, 6009,
6010)
NJM78L09 (8H)
(Q6001)
S-AU82L (Ver. A)
(Q6011, 6014)
S-AU93 (Ver. D)
(Q6011, 6014)
RN739F (5F)
(D6001)
1SS319 (A4)
(D6012, 6013,
6015, 6016, 6023)
LM2904
(Q6013)
JI LK M
5
6
7
8
9
LM2902
(Q6012)
UMZ2N (Z2)
(Q6003, 6008)
DAN235 (M)
(D6021)
MC2850 (A7)
(D6006, 6010,
6011)
