Vertex Standard VXR-9000 Service Manual

MAIN Unit (Lot. 1~2)
H-1VXR-9000 UHF Service Manual

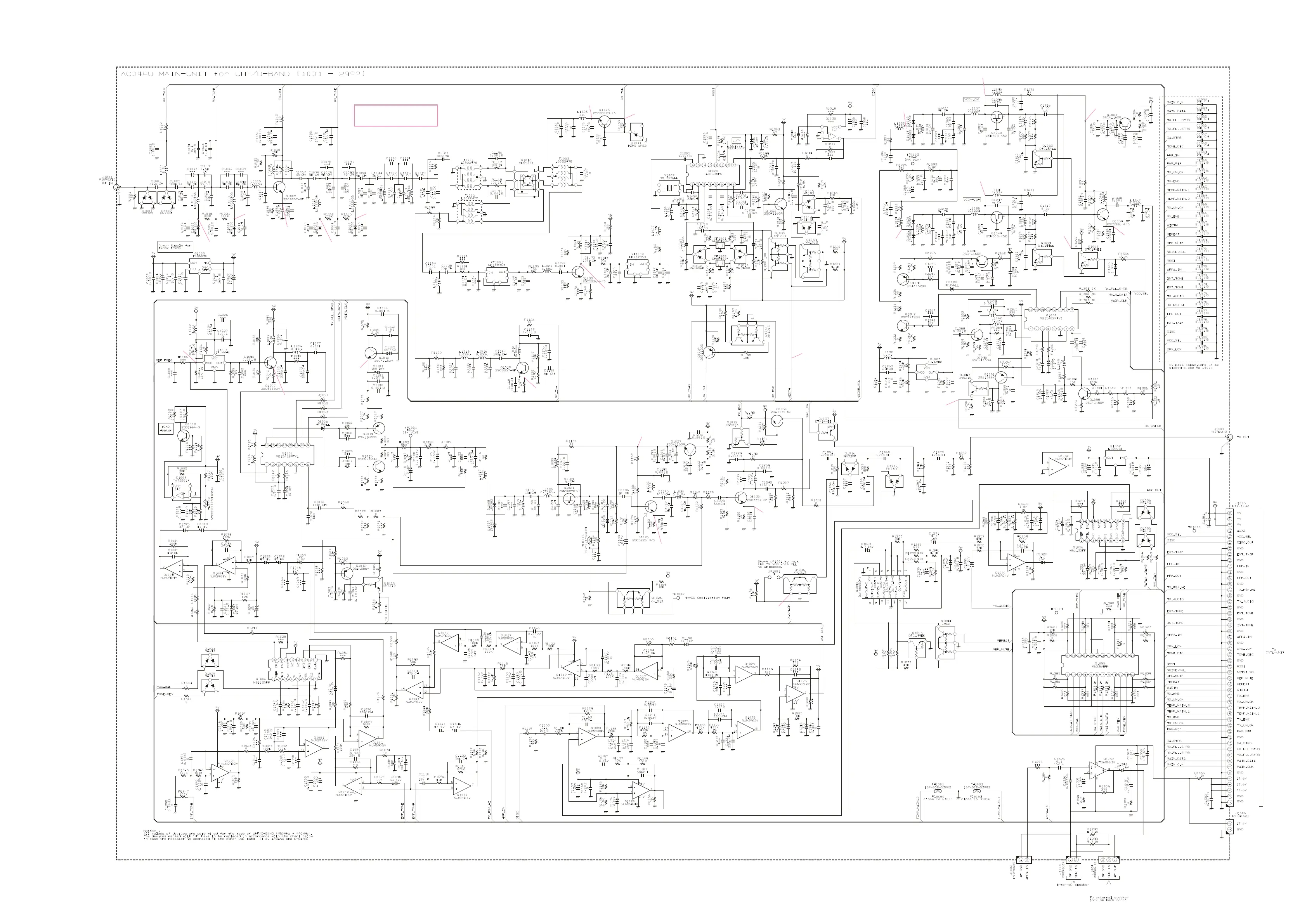

Circuit Diagram
2.2 V
2.2 V
1.3 V
2.2 V
2.2 V
8.9 V
4.9 V
7.1 V
1.3 V
8.6 V
0.4 V
1.5 V
8.0 V
2.3 V
WIDE: 0.1 V
NARROW: 7.5 V
0.9 V
8.0 V
(
8.4 V
)
(
8.0 V
)
8.9 V
0 V
(
4.2 V
)
2.3 V
LOCK: 0 V
UNLOCK: 5.0 V
0.5 V
LOCK: 0 V
UNLOCK: 5.0 V
Frequency: 470.20 MHz
(
468.80 MHz
)

Vertex Standard VXR-9000 Specifications

General

Brand	Vertex Standard
Model	VXR-9000
Category	Repeater
Language	English
