J-3
PANEL Unit
VXR-9000 UHF Service Manual

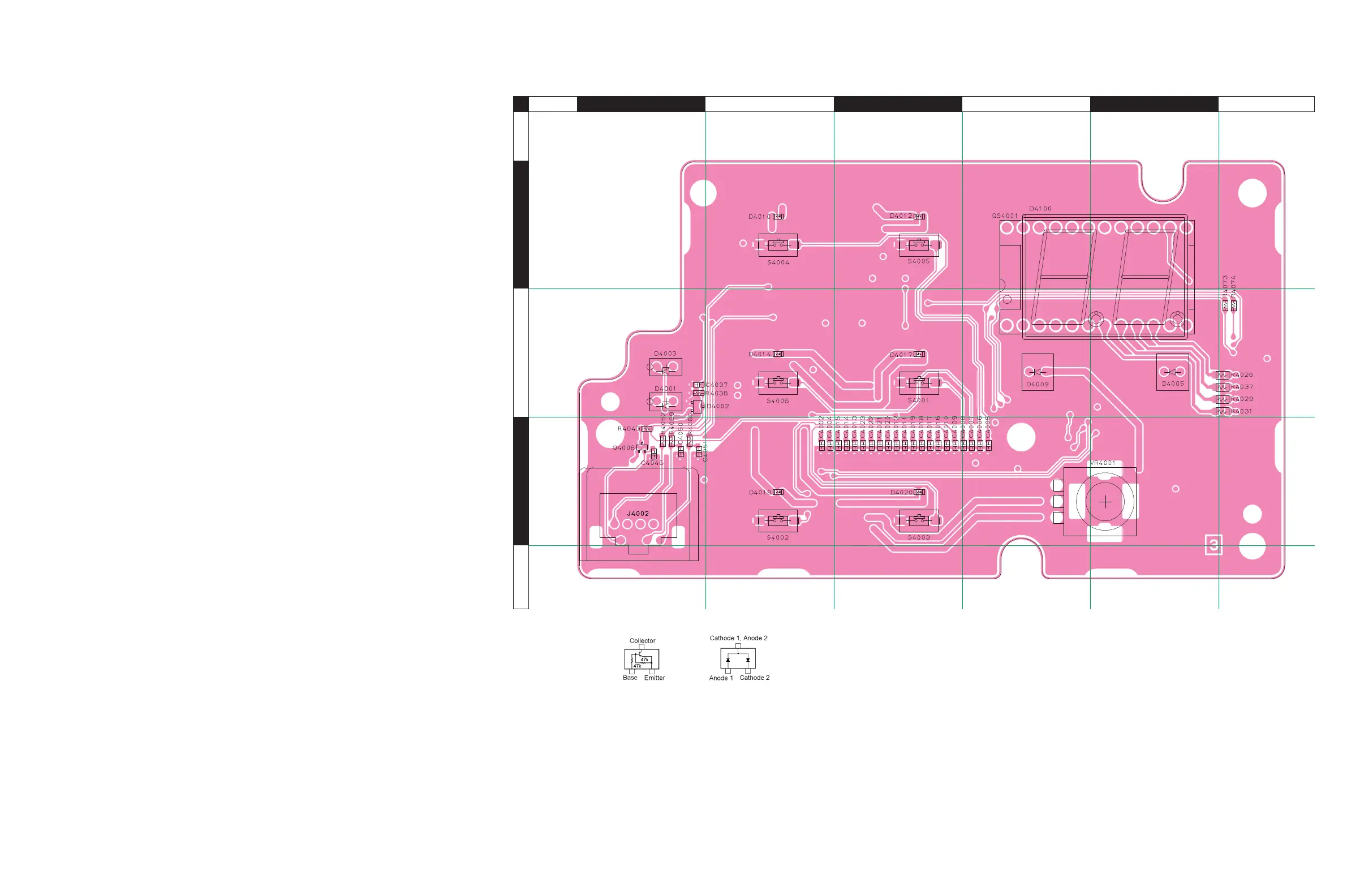

Parts Layout (Side A)
BA DC FE
1
3
2
4
RT1P441U (P3)
(Q4006)
MC2850 (A7)
(D4002)
