L-3VXR-9000 UHF Service Manual

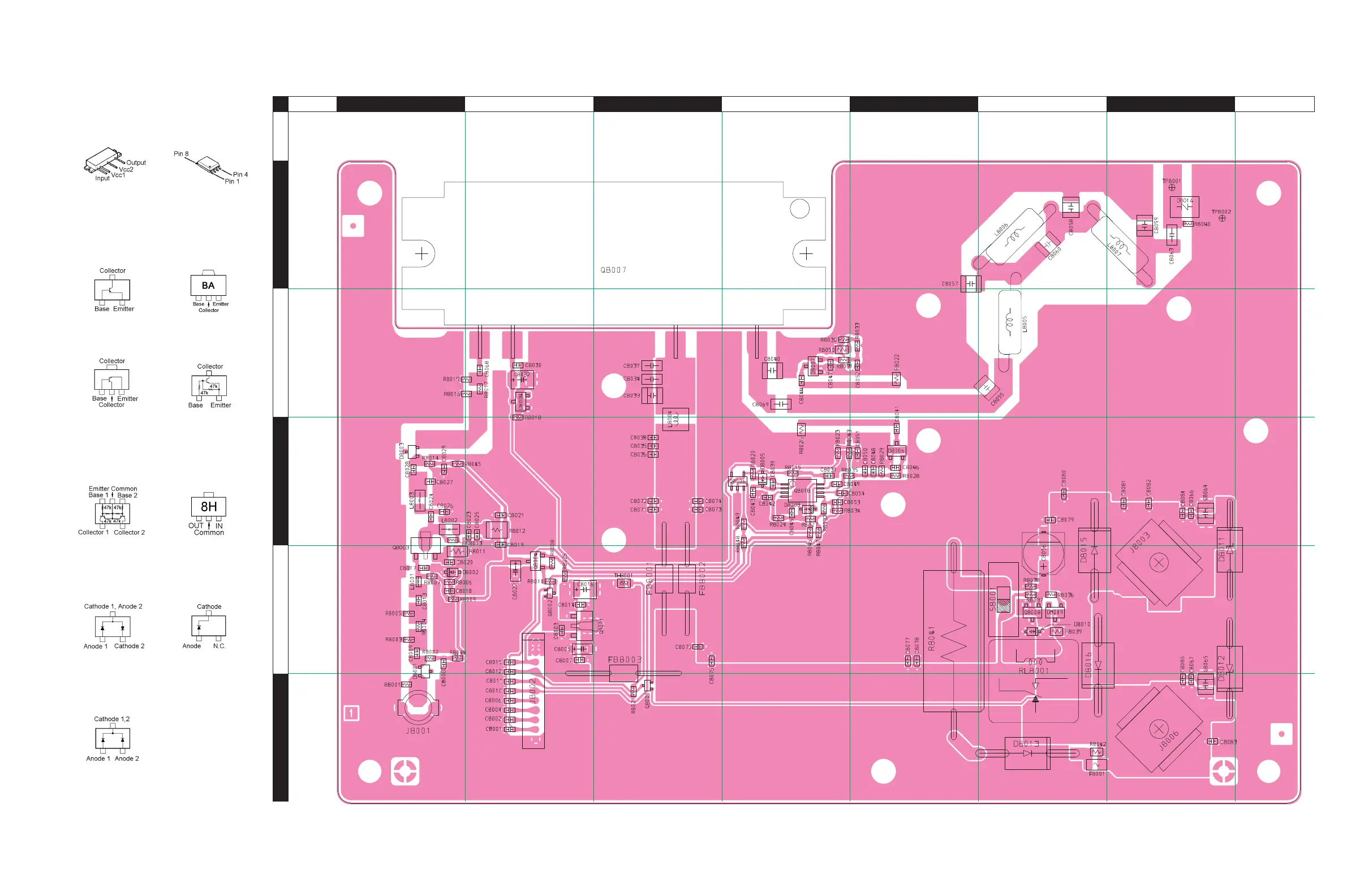

Parts Layout (Side A)
BA DC FE G
1
3
5
2
4
H
2SA1179 (M6)
(Q8004)
2SB1132 (BA)
(Q5007)
2SC2812 (L6)
(Q8008)
2SC5415E (EA)
(Q8003)
DTC144EE (26)
(Q8002, 8005)
FMG2 (G2)
(Q8006)
NJM78L09 (8H)
(Q8001)
HSM88AS
(D8006, 8007)
RN739F (5F)
(D8001, 8003)
PA-2 Unit (Lot. 21~)
MC2848 (A6)
(D5011)
LM2904PWR
(Q8018)
S-AU82L
(Q8007)
S-AU93
(Q8007)
HZM4.7NB2 (472)
(D8004)
HZM9.1NB2 (912)
(D8009)
