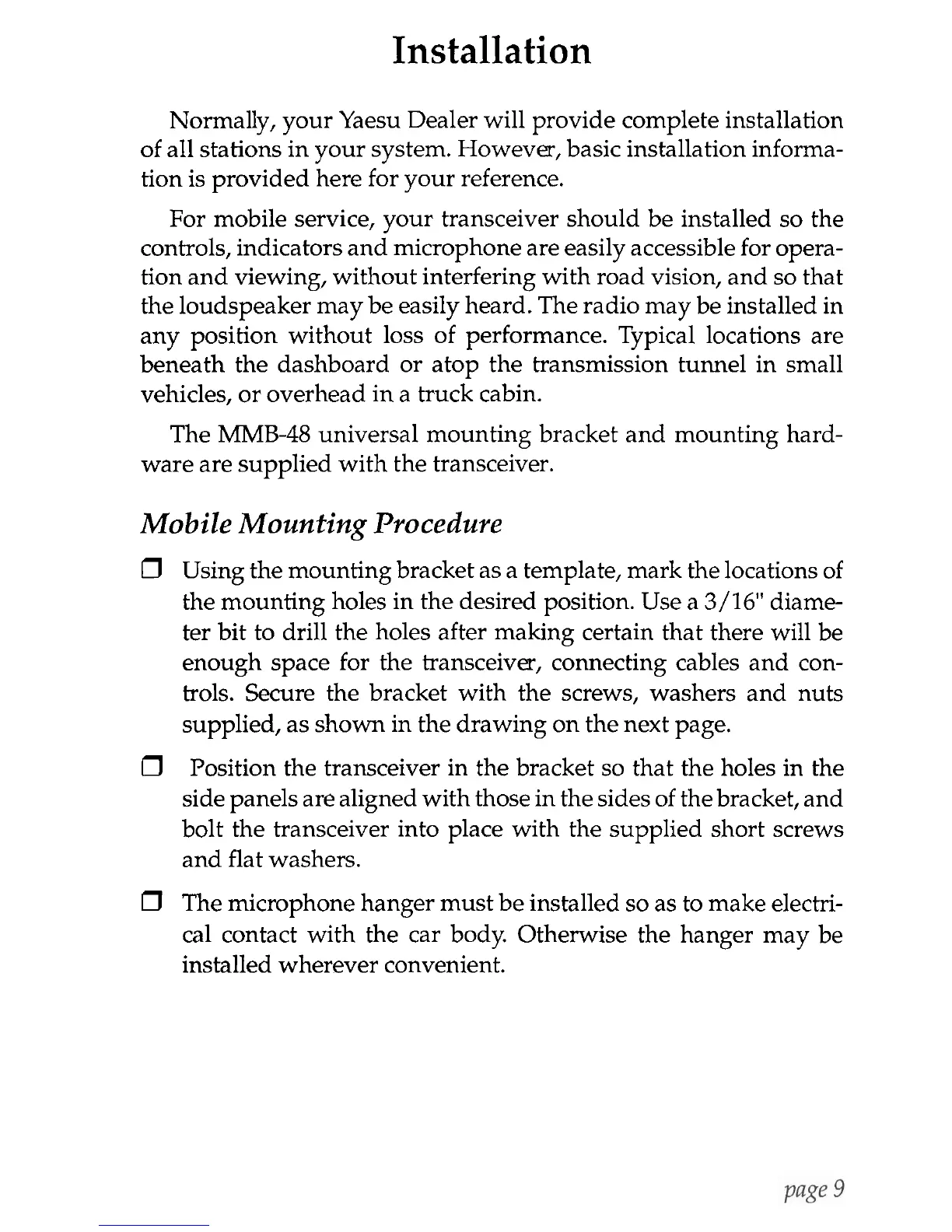

Installation
Normally, your Yaesu Dealer will provide complete installation
of all stations in your system. However, basic installation informa-
tion is provided here for your reference.
For mobile service, your transceiver should be installed so the
controls, indicators and microphone are easily accessible for opera-
tion and viewing, without interfering with road vision, and so that
the loudspeaker may be easily heard. The radio may be installed in
any position without loss of performance. Typical locations are
beneath the dashboard or atop the transmission tunnel in small
vehicles, or overhead in a truck cabin.
The
MMB-48
universal mounting bracket and mounting hard-
ware are supplied with the transceiver.
Mobile
Mounting
Procedure
0
Using the mounting bracket as a template, mark the locations of
the mounting holes in the desired position. Use a
3/16"
diame-
ter bit to drill the holes after making certain that there will be
enough space for the transceiver, connecting cables and con-
trols. Secure the bracket with the screws, washers and nuts
supplied, as shown in the drawing on the next page.
0
Position the transceiver in the bracket so that the holes in the
side panels are aligned with those in the sides of the bracket, and
bolt the transceiver into place with the supplied short screws
and flat washers.
0
The microphone hanger must be installed so as to make electri-
cal contact with the car body. Otherwise the hanger may be
installed wherever convenient.
