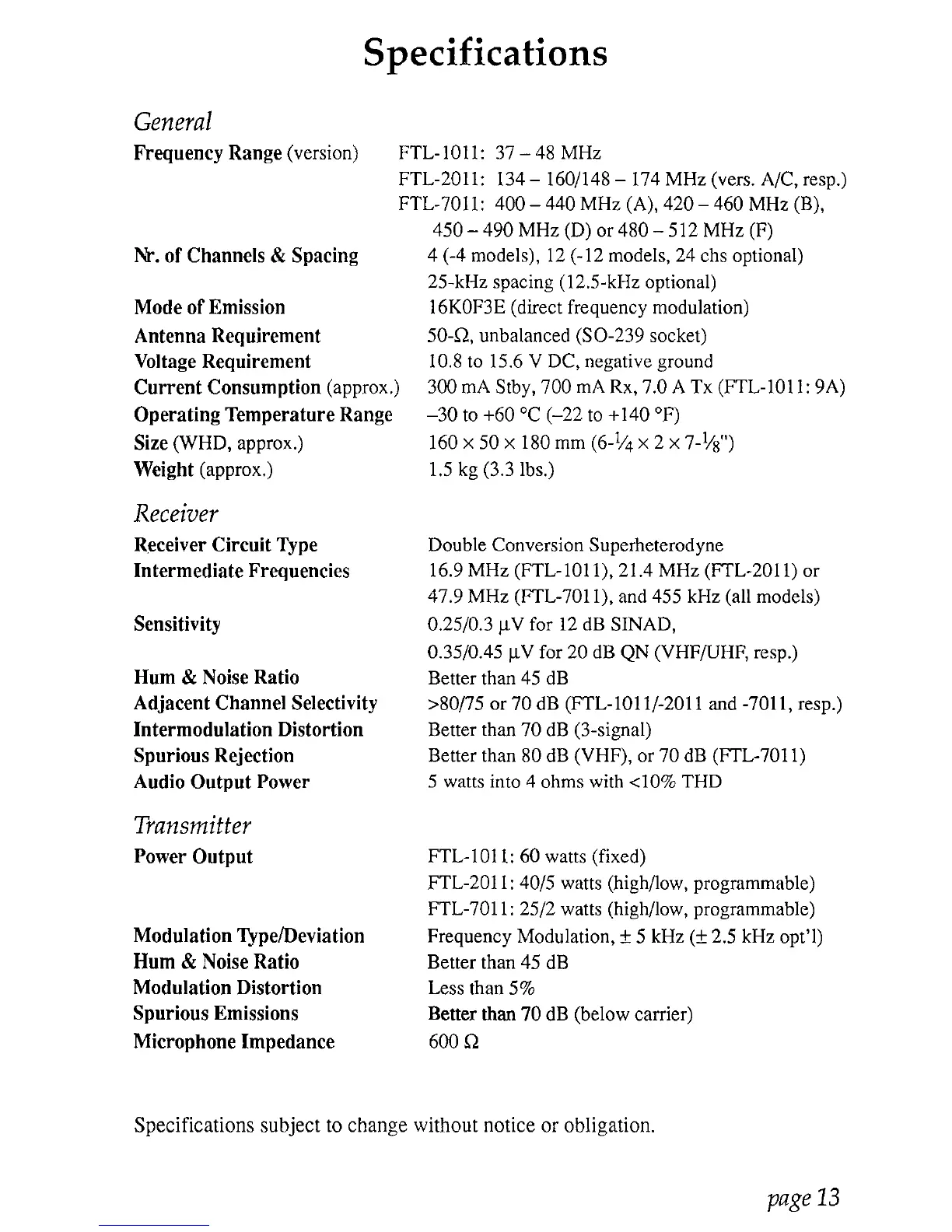

Specifications
General
Frequency Range (version)
FTL- 101 1: 37 - 48 MHz
FTL-2011: 134
- 1601148 - 174 MHz (vers. A/C, resp.)
FTL-7011: 400 - 440 MHz (A), 420 - 460 MHz (B),
450 - 490 MHz (D) or 480 - 5 12 MHz (F)
Nr. of Channels & Spacing
4 (-4 models), 12 (-12 models, 24 chs optional)
25-kHz spacing (12.5-kHz optional)
Mode of Emission
16KOF3E (direct frequency modulation)
Antenna Requirement
5042, unbalanced (SO-239 socket)
Voltage Requirement
10.8 to 15.6 V DC, negative ground
Current Consumption (approx.)
300 mA Stby, 700 mA Rx, 7.0 A Tx (FTL-1011: 9A)
Operating Temperature Range
-30 to +60 OC (-22 to +I40 OF)
Size (WHD, approx.)
160 x 50 x 180 mm (6-1/4 x 2 x 7-h")
Weight (approx.)
1.5 kg (3.3 lbs.)
Receiver
Receiver Circuit Type
Intermediate Frequencies
Sensitivity
Hum & Noise Ratio
Adjacent Channel Selectivity
Intermodulation Distortion
Spurious Rejection
Audio Output Power
Double Conversion Superheterodyne
16.9 MHz
(FTL-101 I), 21.4 MHz (FTL-2011) or
47.9 MHz (FTL-701
l), and 455 kHz (all models)
0.2510.3 pV for 12 dB SINAD,
0.3510.45 pV for 20 dB QN (VHFIUHF, resp.)
Better than 45 dB
>80/75 or 70 dB (FTL-loll/-2011 and -701 1, resp.)
Better than 70 dB (3-signal)
Better than 80 dB (VHF), or 70 dB (FTL-7011)
5 watts into 4 ohms with <lo% THD
Transmitter
Power Output FTL-1011: 60 watts (fixed)
FTL-2011:
4015 watts (highllow, programmable)
FTL-7011:
2512 watts (highllow, programmable)
Modulation TypeBeviation
Frequency Modulation, f 5 kHz (+ 2.5 kHz opt'l)
Hum & Noise Ratio
Better than 45 dB
Modulation Distortion Less than 5%
Spurious Emissions
Better than 70 dB (below carrier)
Microphone Impedance 600 SZ
