Vertex SR Series User Manual

- 5 -
CHAPTER 1: Getting Started

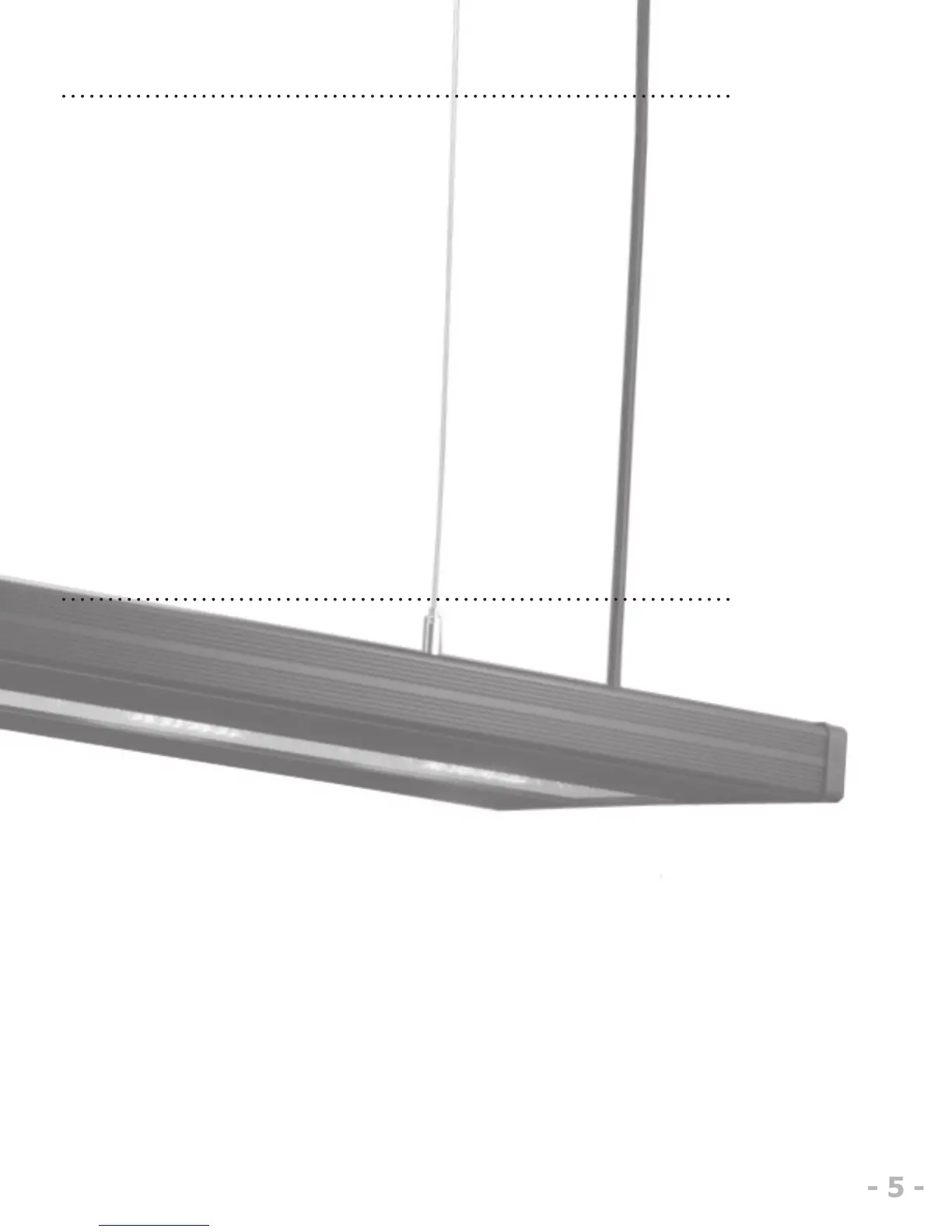

SR 1500 (260/360)
Dimensions
1500mm x 300mm | 12” x 12” Footprint
32mm | 1.26” / 45mm | 1.77” Center Height
Weight
15.5 kg | 34.17 lbs
LED Modules
10
Auxiliary Slots
9
Mean Well Drivers
3
Fans
3 x SilenX Ixtrema Pro IXP-52-14
Performance
~482W/559W, 90-270 V / 50-60Hz
SR 1800 (260/360)
Dimensions
1800mm x 300mm | 12” x 12” Footprint
32mm | 1.26” / 45mm | 1.77” Center Height
Weight
19 kg | 41.9 lbs
LED Modules
12
Auxiliary Slots
11
Mean Well Drivers
3
Fans
3 x SilenX Ixtrema Pro IXP-52-14
Performance
~578W/670W, 90-270 V / 50-60Hz
I-260 (June 2012)
LED Make
Cree
CHANNELS
White
XTE - 130lm/W
Royal Blue
XTE - 475mV
Blue
XTE - 30.6m/W
LEDs per Module
16
Performance / Module
43,78W, 90-270 V / 50-60Hz
50,000hours@≤135°Fcore
diode temperature
I-360
LED Make
Cree
CHANNELS
White
XTE - 148lm/W
Royal Blue
XTE - 550mV
Blue
XPG - 39,8lm/W
LEDs per Module
16
Performance / Module
50,82W, 90-270 V / 50-60Hz
50,000hours@≤135°Fcore
diode temperature
LED Pad Specications
Illumina Specications

Vertex SR Series Specifications

General

Brand	Vertex
Model	SR Series
Category	Light Fixture
Language	English
